- 26 -
Bodywork
C

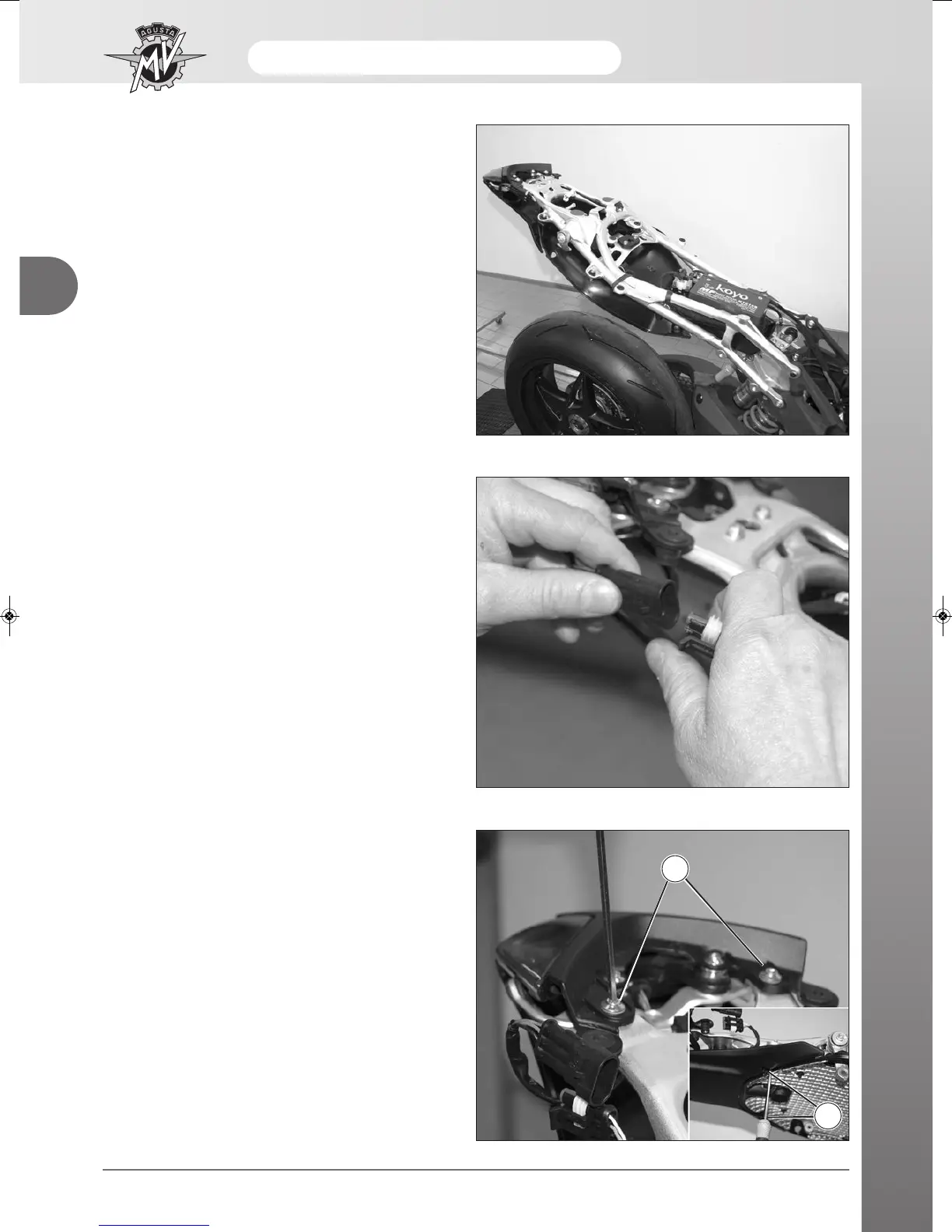

Remove the rear headlight connector fastening clip
and disconnect the connector.
Heat shield removal
After having removed the seats and the rear fairings as
previously described, proceed as follows:
Remove the silencers (see chapter F “Suspension and
wheels”).
Remove the battery (see chapt. E - electrical system).
Remove the four fixing screws, two upper (1) and two
lower (2), of the rear headlight support and remove the
support.
1
2
