MV Agusta F4 RR - Throttle Body Removal (My13)

Frame
- 21 -
G
Check the proper passage of the connectors and tube
as shown in the figure.
Remove the following components in order:
- Steering head
- Acoustic warning signal
- Right/left handlebars
- Right/left front forks
- Steering sleeve
as described in chapter F - "Suspension and Wheels."

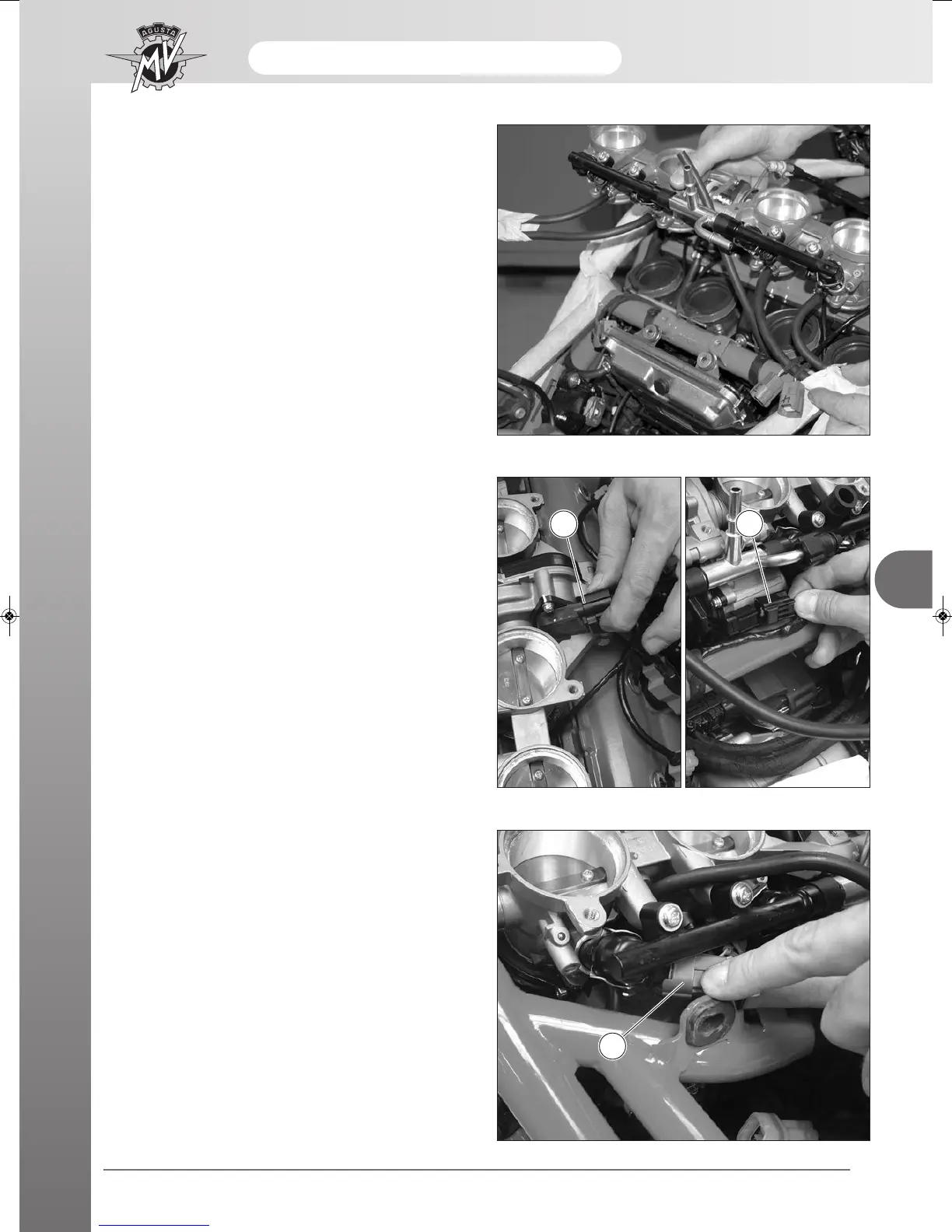

THROTTLE BODY REMOVAL (MY13)
Remove the 2 electrical connectors (1) and (2) of the
throttle body.
1
2
Remove the 4 electrical connectors (3) on the injec-
tors.
3
