Turn coils on the outer side of the motorcycle before
removing them.
PLUG-TOP COIL DISASSEMBLY (MY13)

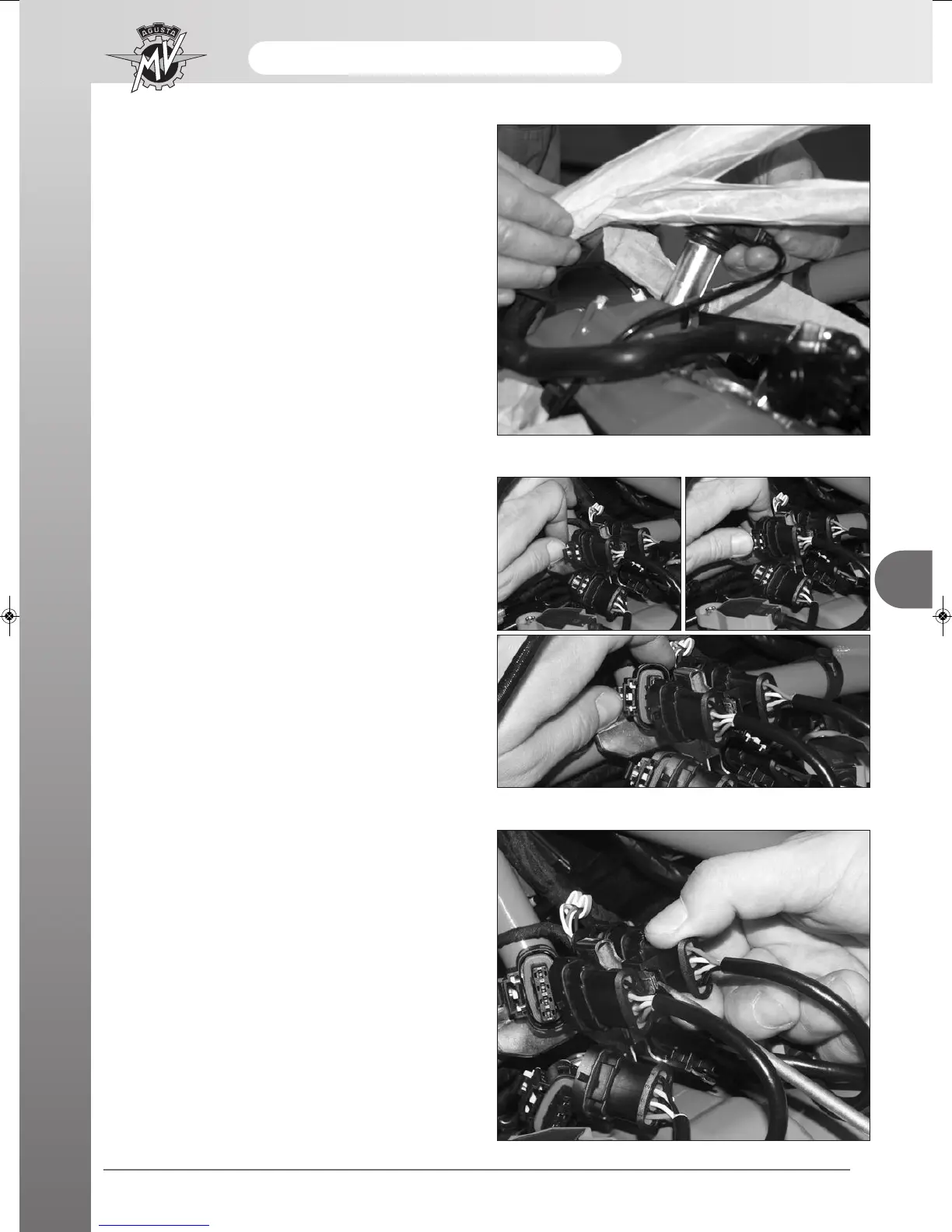

Remove the 4 male connectors of the coils by sliding
the safety lock and pushing the catch as shown in the
picture.
Remove the 4 female connectors with the help of a
screwdriver.
