MV Agusta F4 RR - Frame Plate Removal

Frame
- 47 -
G
FRAME PLATE REMOVAL
Cut the chain as described in chapter F "Suspension
and Wheels."

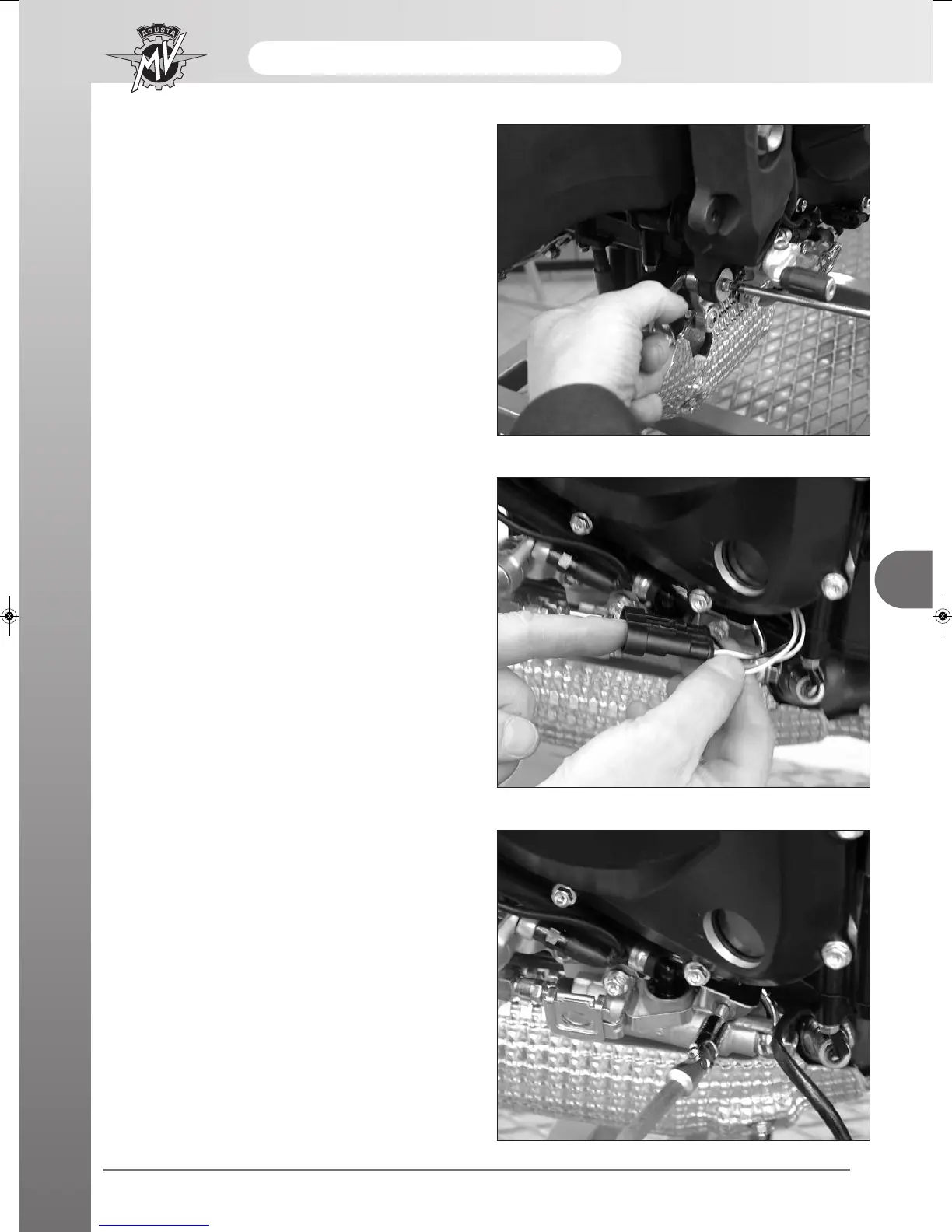

Remove the exhaust manifold support screw from the
right side of the motorcycle.
Disconnect the rear brake pump connector.
Remove the rear brake pump fixing screws.
