Electrical system
- 37 -
E

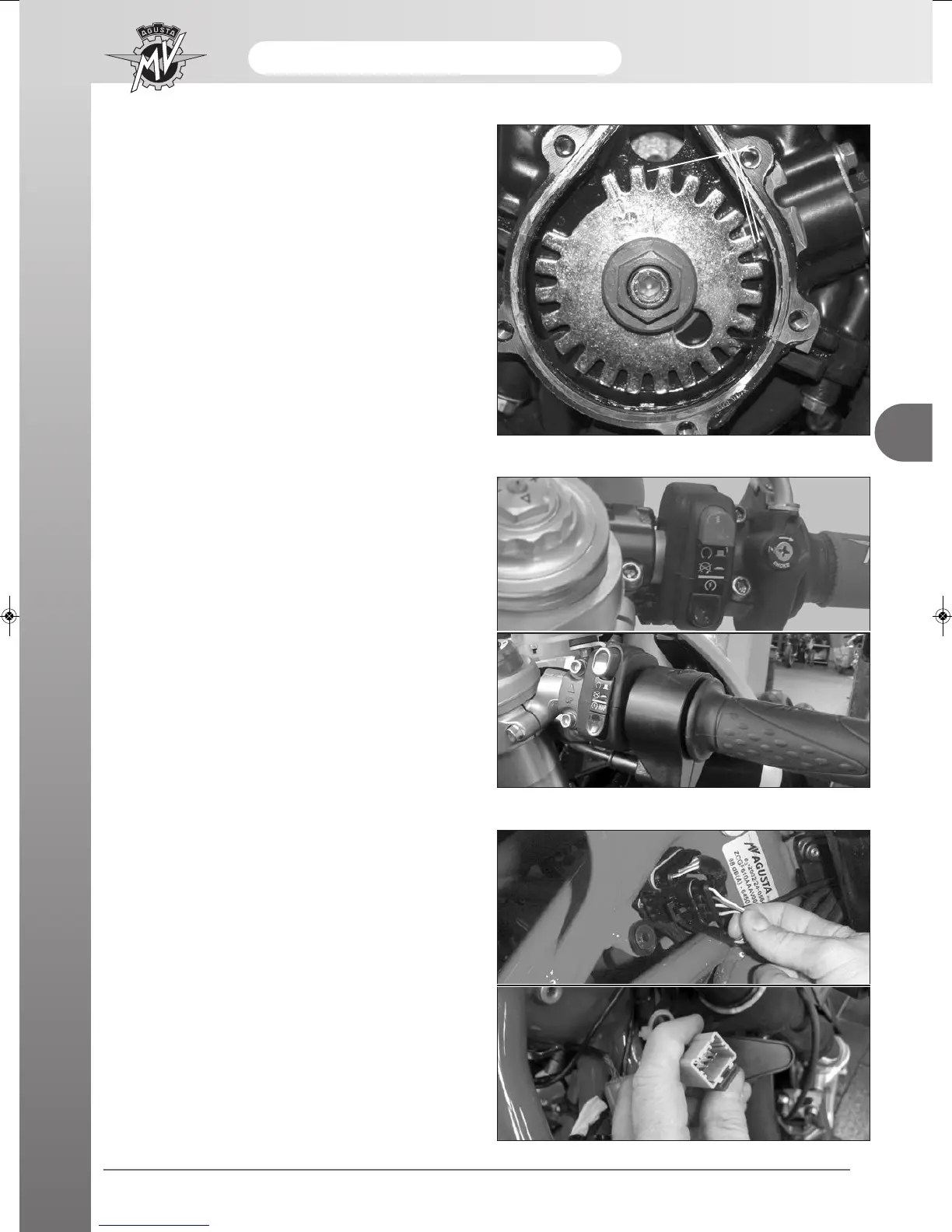

TIMING WHEEL GAP
To guarantee the correct functioning of the pick-up it is
necessary to measure the gap between the pick-up
and the timing wheel by utilising a feeler gauge as
shown in the figure.
Gap width: 0.6 – 0.7 mm
To carry out this check it is necessary to remove the
cover of the timing wheel by consulting the Workshop
Engine Manual.
RUN OFF SAFETY SWITCH
Remove the right fairing side panel as described in
chapter C “Bodywork”.
Remove the relative connector to the right hand control
group as indicated in the figure.
0.6 ÷ 0.7
F4 MY10 -> MY12
F4 MY13
F4 MY10 -> MY12
F4 MY13
