Electrical system

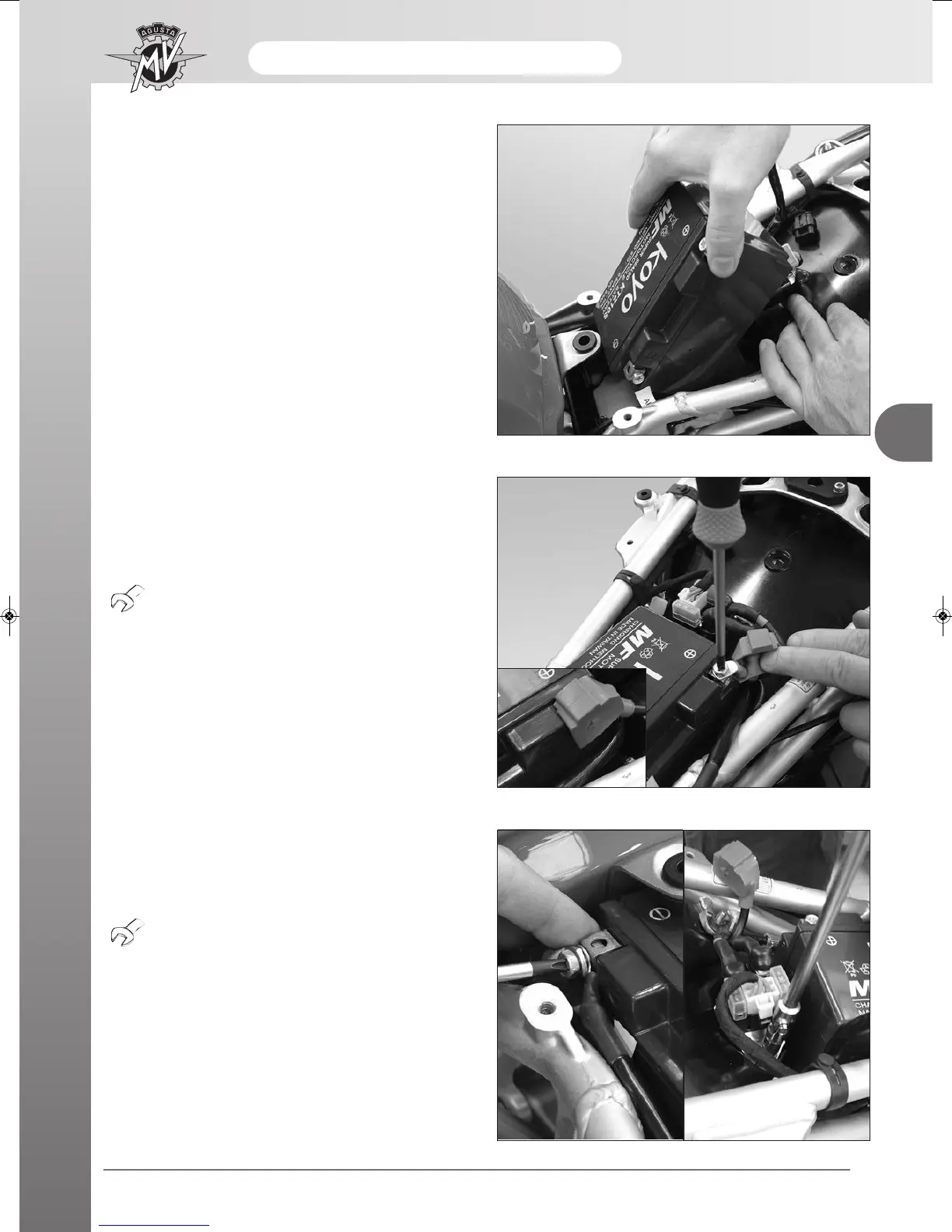

5) Insert the battery in its proper compartment.
6) Fit the 2 positive terminals (+) on the corresponding
battery pole, respecting their disposition as shown in
the figure. Rotate the positive terminals screw and tigh-
ten it at a torque equal to 7 ÷ 8 Nm. Afterwards, fit the
protective cap on the positive pole.
Torque pressure: 7 ÷ 8 N·m
7)
Fit the 2 negative terminals (-) on the corresponding
battery pole, respecting their disposition as shown in
the figure. Rotate the negative terminals screw and
tighten it at a torque equal to 7 ÷ 8 Nm.
Torque pressure: 7 ÷ 8 N·m
8)
Reinstall disassembld parts by inversely performing
the operations described in the phases 2-3-4
.
