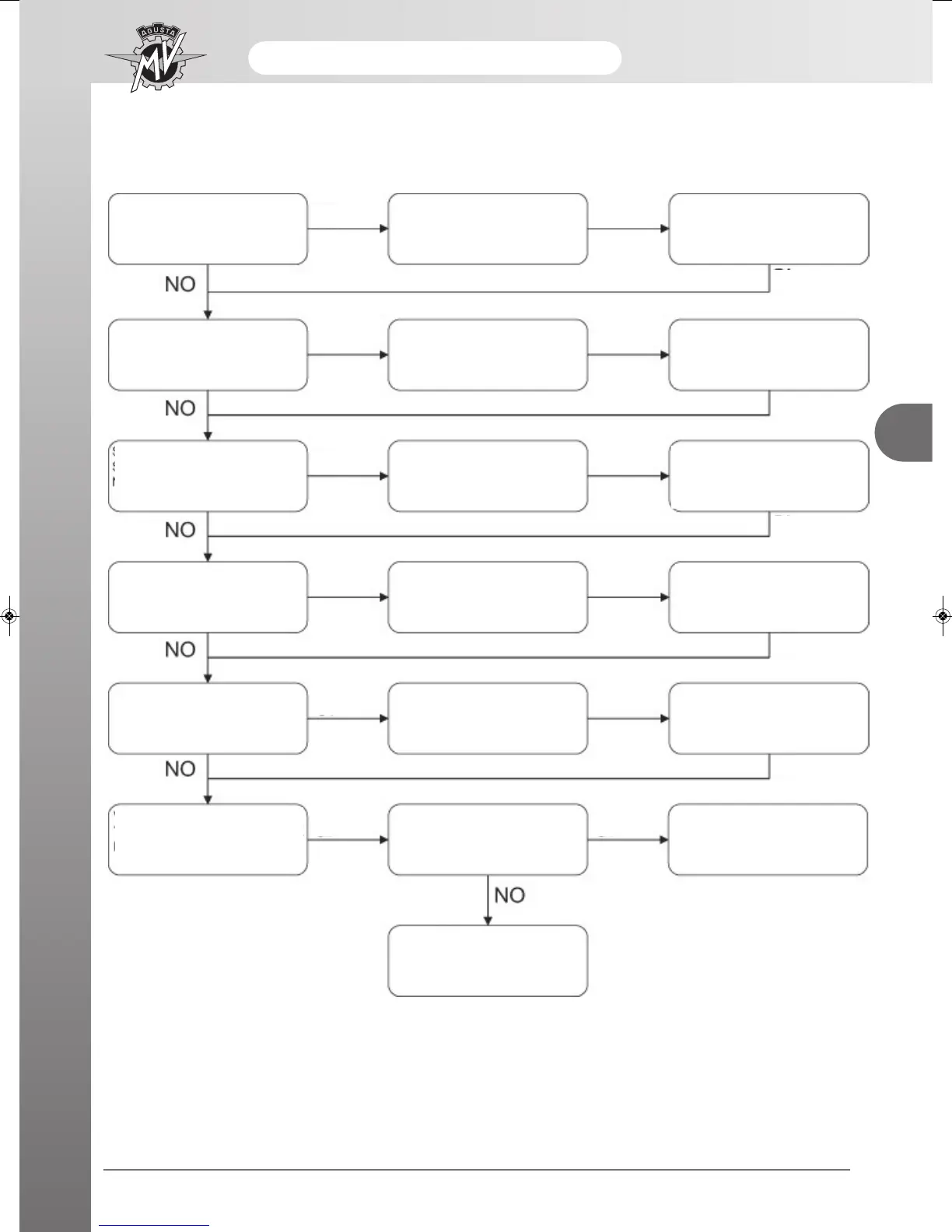

A list of possible problems that could occur when the warning light is switched on.
PROBLEMS OCCUR
WITH CONNECTION
POSITIVE ON BATTERY
PROBLEMS OCCUR
WITH CONNECTION
POSITIVE ON REMOTE
CONTROL SWITCH
PROBLEMS OCCUR
WITH CONNECTION
NEGATIVE ON BATTERY
PROBLEMS OCCUR
ON CONDITION OF CONNEC-
TOR OF THE SOLENOID
STARTER
PROBLEMS OCCUR ON
CONDITION OF FUSE OF
REMOTE CONTROL IGNI-
TION SWITCH
CHECK VOLTAGE ON TERMI-
NALS OF VOLTAGE REGULA-
TOR
REPLACE VOLTAGE REGU-
LATOR
CHECK CONDITION OF THE
THREE PHASES OF THE
ALTERNATOR
RESTORE OR CLEAN FUSE
ENDS
RESTORE OR CLEAN CON-
NECTION
RESTORE OR CLEAN CON-
NECTION
RESTORE OR CLEAN CON-
NECTION
RESTORE OR CLEAN CON-
NECTION
WARNING LIGHT STILL ON
WARNING LIGHT STILL ON
WARNING LIGHT STILL ON
WARNING LIGHT STILL ON
WARNING LIGHT STILL ON
REPLACE ACG
YES
YES
YES
YES
YES
YES YES
YES
YES
YES
YES
YES
