Frame
- 5-
G

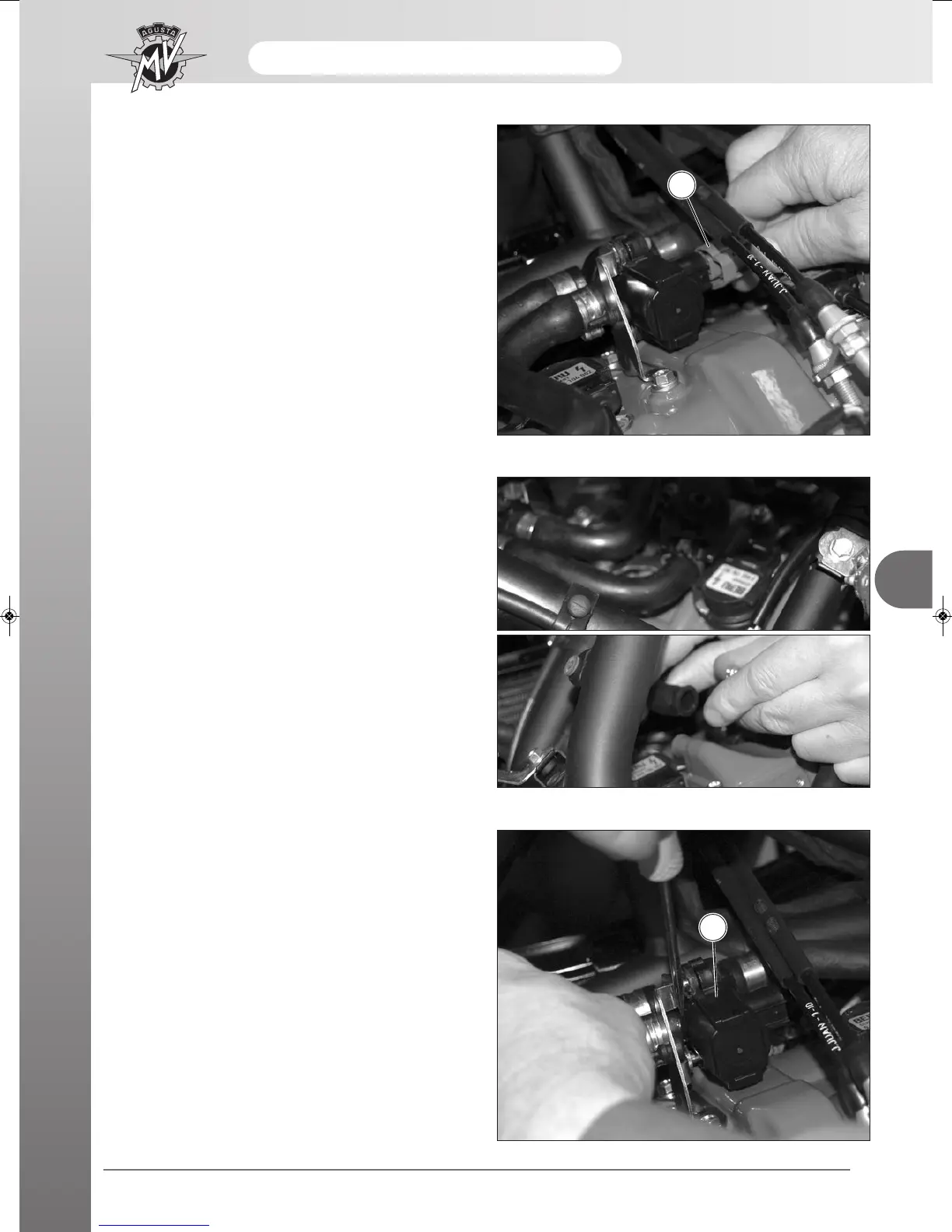

SAS VALVE DISASSEMBLY (MY10 ->MY12)
This operation is only necessary if the engine should
need to be removed from the frame.
Disconnect the SAS valve connector (1).
Remove the clamps and the tubes from the blade cov-
ers.
Remove the valve (2), pulling it from the support out-
ward from the right side with the aid of a screwdriver.
1
2
