- 20 -
Maintenance
B
Maintenance

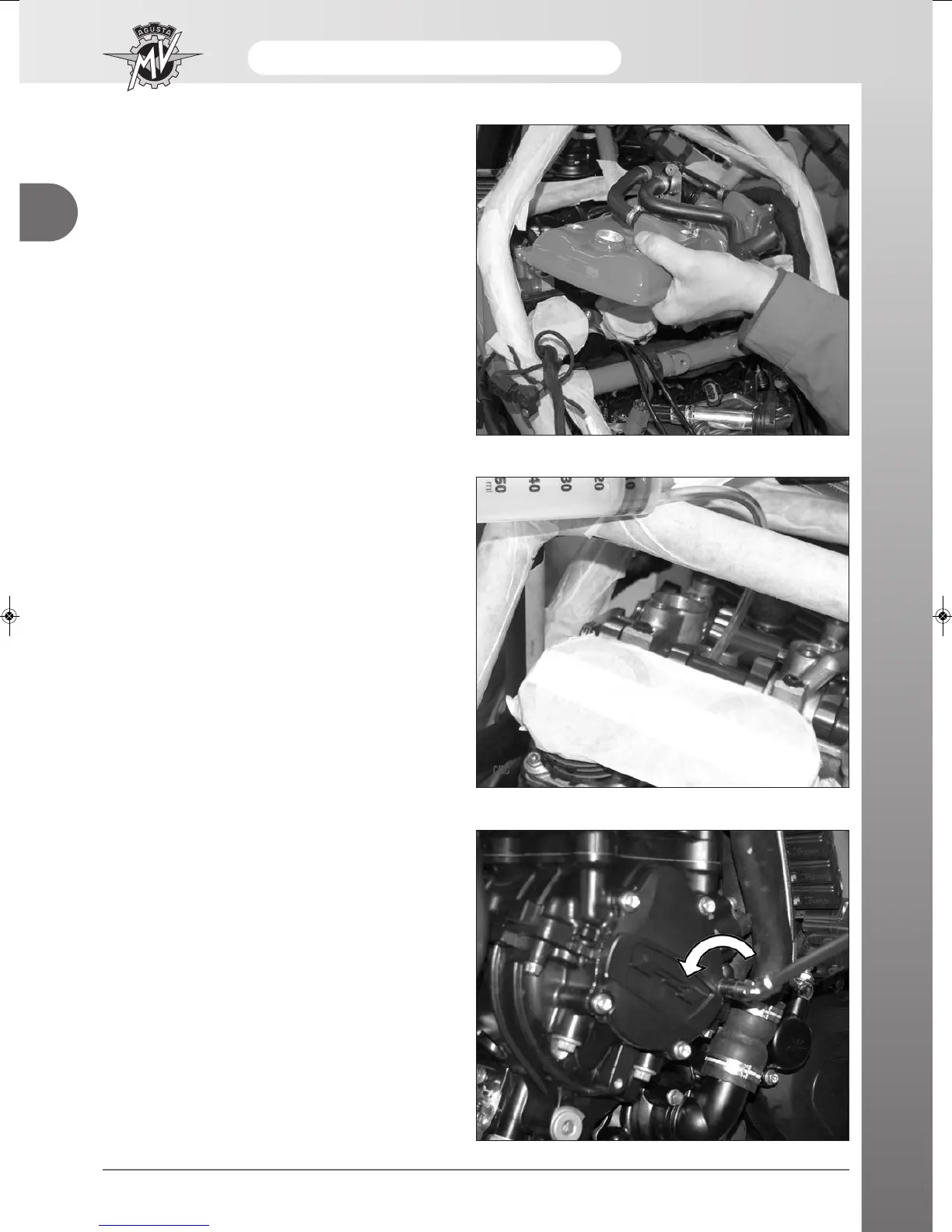

Proceed with the removal of the engine head cover as
shown in the figure.
Utilising a syringe, remove the surplus oil that is left in
the various niches in proximity to the valve cups.
Proceed with the removal of the timing wheel cover by
unscrewing the five fixing screws.
