28
EN
hyperion
X5 2D/3D
- TECHNICAL
MANUAL
EN
PC CONFIGURA
TION
W

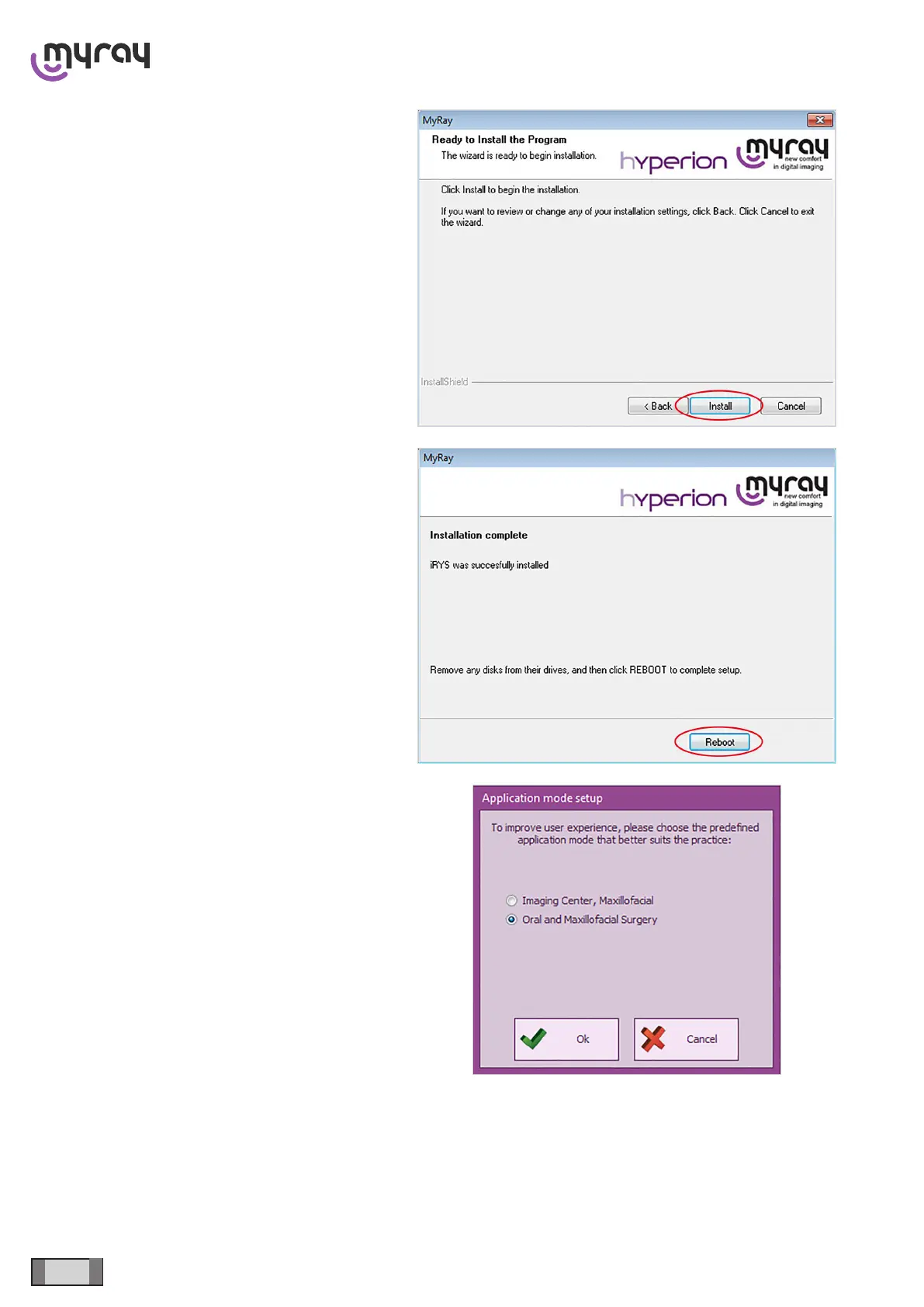

ait and click on “Install”.
At the end, restart the computer
.
Upon
rst
iRYS
launch, the display mode has to be
selected (“Oral and Maxillofacial Surgery” is the
standard mode)
29
