Acusensor M Installaon Manual www.NabcoEntrances.com
P/N C-00187 Rev 8-25-17

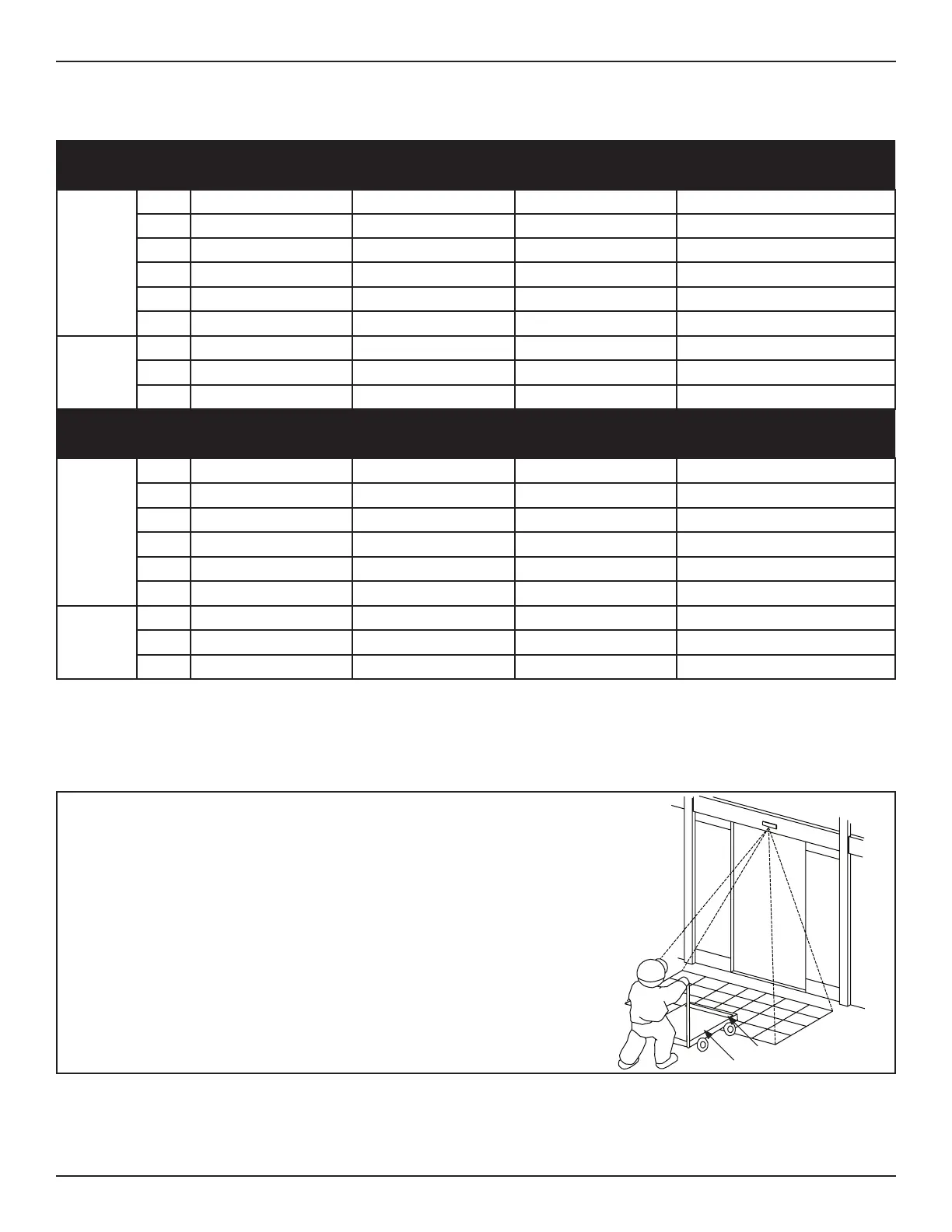

Table 3 Detection Area Size
Without Angled Spacer (Area Adjuster set at 0 degrees)
Mounting Height 78” (2.0m) 87” (2.2m) 98” (2.5m) 118” (3.0m)
Depth
A 4” (100mm) 4” (100mm) 5” (120mm) 6” (150mm)
B 15” (390mm) 17” (430mm) 19” (480mm) 23” (580mm)
C 26” (650mm) 28” (720mm) 32” (820mm) 39” (980mm)
D 38” (960mm) 41” (1,050mm) 47” (1,200mm) 57” (1,440mm)
E 51” (1,300mm) 56” (1,430mm) 64” (1,620mm) 77” (1,950mm)
F 63” (1,600mm) 72” (1,820mm) 82” (2,070mm) 98” (2,490mm)
Width
G 48” (1,220mm) 53” (1,350mm) 60” (1,530mm) 72” (1,840mm)
H 83” (2,100mm) 91” (2,320mm) 104” (2,630mm) 124” (3,160mm)
I 104” (2,640mm) 114” (2,900mm) 130” (3,300mm) 156” (3,960mm)
With Angled Spacer (Area Adjuster set at 0 degrees)
Mounting Height 78” (2.0m) 87” (2.2m) 98” (2.5m) 118” (3.0m)
Depth
A 4” (100mm) 4” (100mm) 5” (120mm) 6” (150mm)
B 15” (390mm) 17” (430mm) 19” (490mm) 23” (590mm)
C 26” (670mm) 29” (740mm) 33” (840mm) 40” (1.010mm)
D 38” (1000mm) 43” (1,100mm) 49” (1,250mm) 59” (1,500mm)
E 54” (1,370mm) 59” (1,510mm) 68” (1,720mm) 81” (2,060mm)
F 71” (1,790mm) 78” (1,970mm) 88” (2,240mm) 106” (2,680mm)
Width
G 48” (1,230mm) 53” (1,350mm) 61” (1,540mm) 79” (1,850mm)
H 83” (2,110mm) 91” (2,320mm) 104” (2,640mm) 125” (3,170mm)
I 104” (2,650mm) 114” (2,920mm) 131” (3,320mm) 157” (3,980mm)

Illustrated examples shown below, are meant to display some (not all) causes for malfuncon to occur within the Presence
Detecon Area.
Table 4 Common Causes for Malfunctions
The bed of a trolley:
X Is too low to the oor
X Surface of cart or trolley is not reecve enough to be detected. (Reecve
tape or sckers can help)
Refl ec ve S cker
Trolley Bed
DN 1568
