5 of 28
www.NabcoEntrances.com AcusensorMInstallaonManual
Rev 8-25-17 P/N C-00187
Specification Description
Mounng Height 78 inches to 118 inches (2.0m to 3.0m)
Weight Approximately 10 ounces (285g)
Color Black Cover or Silver Cover
Full Color LED
► Displays operating status
Angled Spacer The Angled Spacer is an opon that is sold separately. To do so, please call Customer Service at
1-888-679-3319.
► For Slide doors only
► For increased depth range.
Adjustable Detecon Area
► Depth
► Width
ECO Mode Closes door earlier for a pedestrians moving away from door.
Table 2 Electrical Wiring
Item Description
Input Voltage 12-24 Volts AC or DC
Power Consumpon 3VA or less @ 24VAC
80mA or less @ 24VDC
150mA or less @ 12VDC
Output
►
► Max. 100mA @ 30VAC/50VDC
Make sure total power consumption of all Sensors does not exceed the capability of the door control or power supply.
Exceeding the rated output may result in malfunction or breakdown.

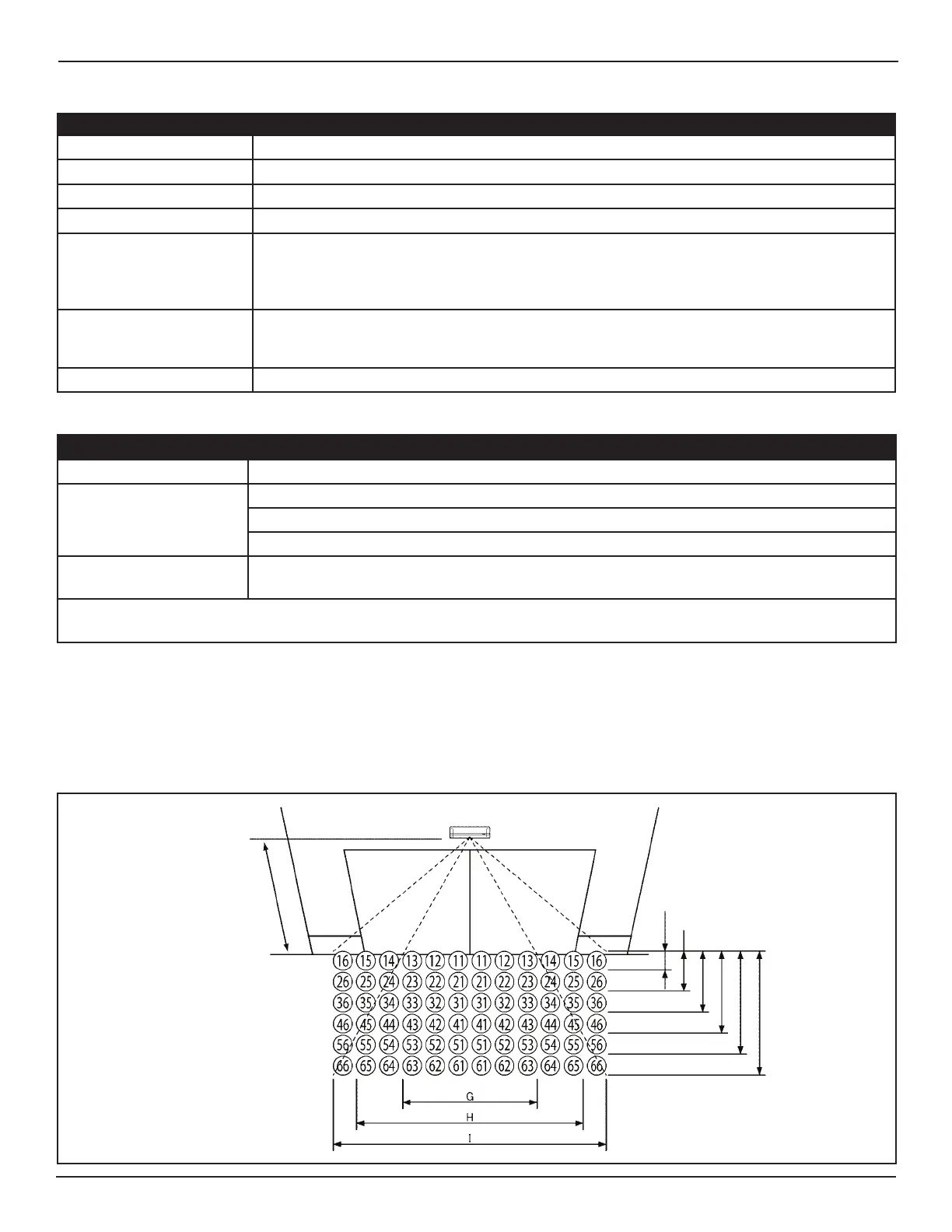

The Sensor is used to detect changes of mulple near-infrared rays that beam from the Sensor down to various points on the oor.
These various points reect the near-infrared rays to form an grid in the shape of a square. To more acurately monitor a Presence
Detecon Area, the grid is broken into invisible rows (Depth), and columns (Width).
DN 1567
Moun ng
Height
Row 1
Row 2
Row 3
Row 4
Row 5
Row 6
A
B
C
D
E
F
To Next Page
