Rev. 9-24-14 Part #15-10683
www.NabcoEntrances.com GT 710-8710 Swing Door System Low Energy Operator
Geng Started 2-5

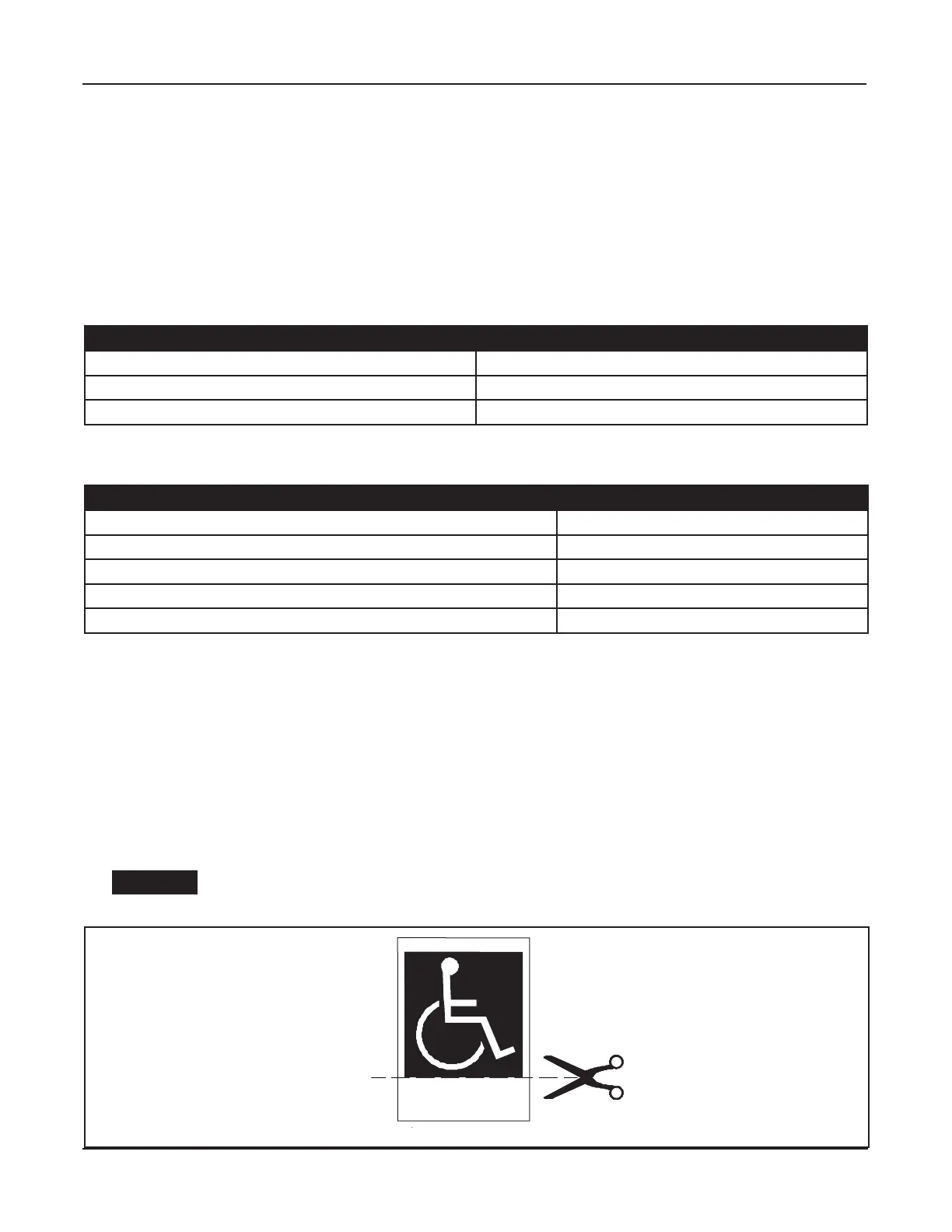

CHAPTER 2: GETTING STARTED
Secon 2a: Electrical Standards
Electricity Description
Power Input 120 (±10%) AC 50-60Hz, 10 Amps
Available Current for Accessories 0.5 Amps 24 VAC
Available wire size for incoming power 14 AWG
Secon 2b: Installaon Specicaons
Specification Measurement
Minimum Frame Face for Mounting 1-3/4 inches (44mm)
Minimum Clearance from Top of Door to Ceiling 7” (178 mm)
Door Hinge Requirements 3/4 inch Butt, Offset Pivot, or Center Pivot
Minimum Door Thickness 1-3/4 inches (44 mm)
Door Width
Secon 2c: Base Unit Type
X Side Load Header only.
X Low Energy Swing doors utilize a Knowing Act to open a Swing door.
• A conscious effort that is carried out in many different ways, including (but not limited to):
manually opening/closing a Swing door; pressing various types of Push Plates; turning a
X Must be compliant with the ANSI Standard Code 156.19 to reduce chance of injury to
Always remove the bottom portion of the HandiCap Label stating “Push Door To
Operate” if the “Push-n-Go” feature is not being used.
DN 1108
PUSH DOOR
TO OPERATE
NABCO Entrances, Inc. p/n 148701
AUTOMATIC DOOR
Figure 2-1 Cut Bottom Portion of HandiCap Label when Push-n-Go Feature is not used
