Rev. 9-24-14 Part #15-10683
www.NabcoEntrances.com GT 710-8710 Swing Door System Low Energy Operator
Install the Header 3-11
Header
Shim
Wall
Top of Door Frame
Swing Door
GT 710 SIDE LOAD SWING DOOR
GT 8710 SIDE LOAD SWING DOOR
Header
Shim
Wall
Top of Door Frame
Swing Door
DN 1080

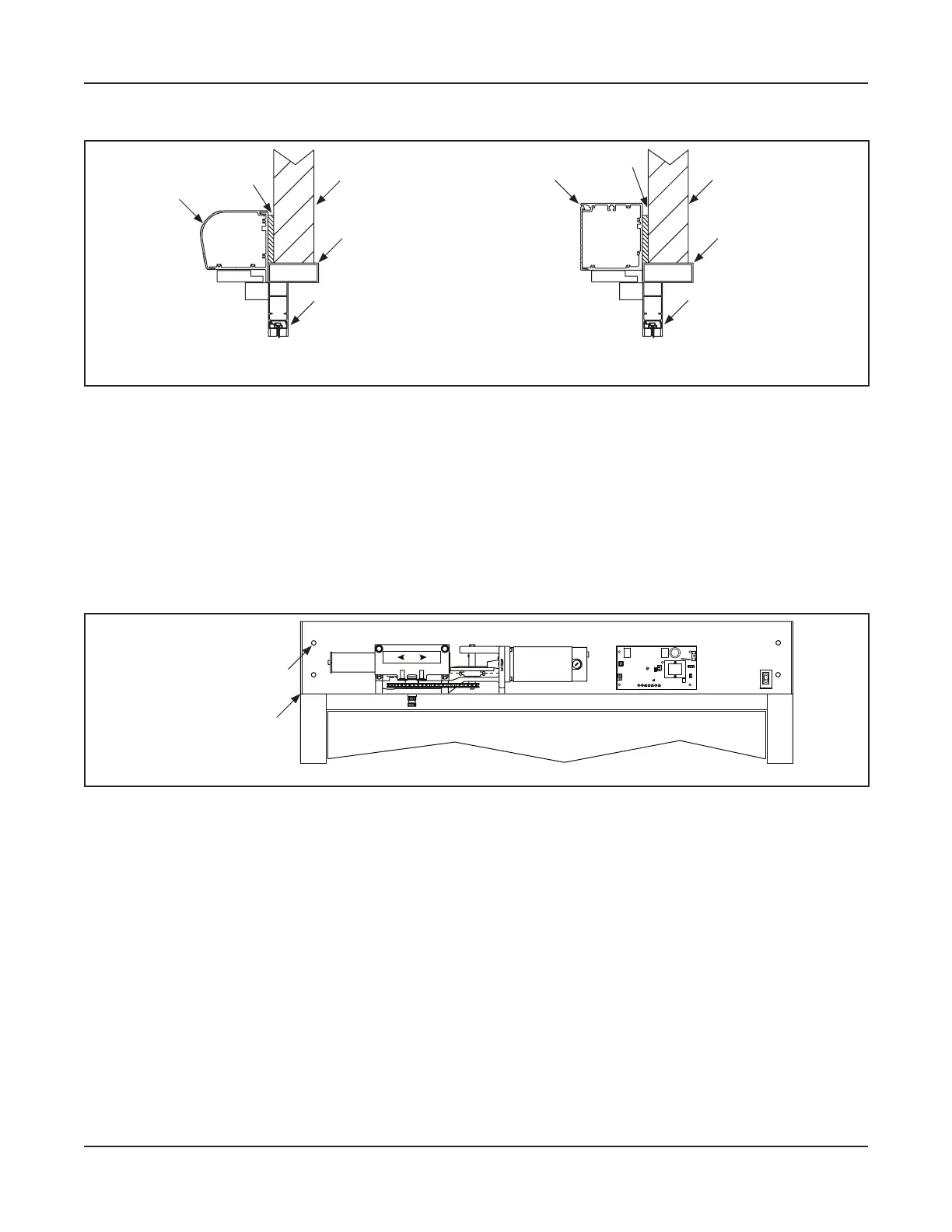

Figure 3-6 Shim between Conversion Unit and Wall
Secon 3d: Secure Header to the Door Frame
Lift up the Header to insert Power Wiring through the 7/8 inch hole.
a. It is recommended to use a Conduit.
b. It is recommended to insert all other Wiring through a separate hole.
Line up the screw holes. Secure the Header to the Door Frame. It is recommended to use Lag
Bolts. Please see .
a. For additional mounting on GT 8710 units: secure the Header to Studs located behind the
Shim. It is recommended to use Lag Bolts.
ON
LED
TRANSFORMER
O
F
F
12
AUX
PWR
4
J2
3
J5
AC IN
F2
SW2
SW1
F1
RELAY
RELAY
J4
TDAS
SIGNAL
INPUT
TDPG
LCHK
CLOSE
Fuse 1: 0.5A 24 VAC
STOP
OPEN
BCHK
CURRENT
LIMIT
MOTOR
J1
R28
MAGNUM 4A
Fuse 2: 5A 120/240
Capacitor
MOV
BACK
CHECK
SWITCH
DOOR
CLOSED
SWITCH
FOR
XXX HAND
UNITS
DN 1132
1/4” Screw holes
Flush Header to
Pivot Door Jamb
(or 1-3/4” Ver cal Line)
Figure 3-7 Determine Dimension of Spindle Location
To Next Page
