Nabco GT 710 User Manual

GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com
Part #15-10683 Rev. 9-24-14
2-6 Geng Started

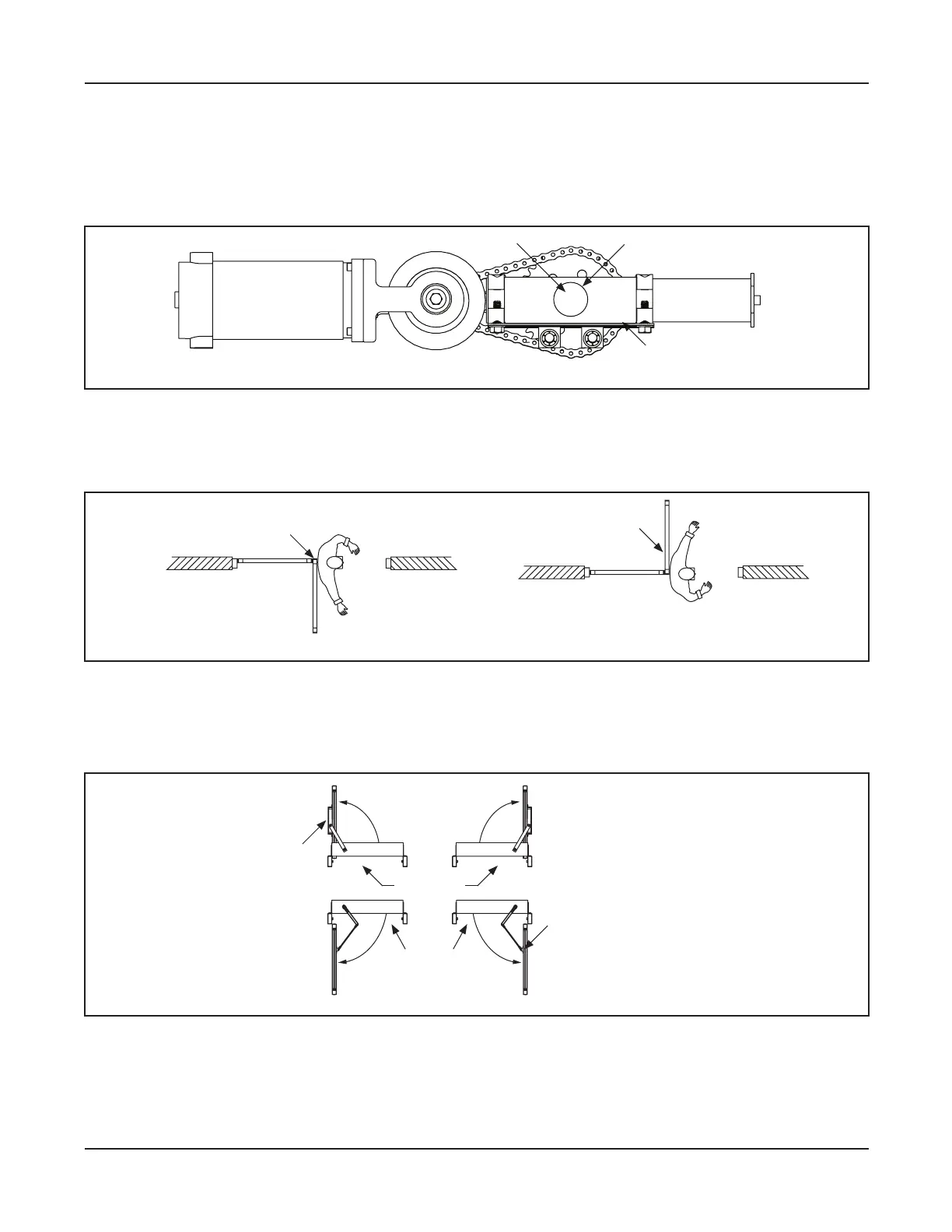

Secon 2d: How to Determine Handing
X To Determine Handing from the Operator: go to the top of the LCN Door Closer. The letter “R” or
“L” will be marked on the Shaft by the NABCO Factory. Please see .
DN 1087
R
Sha
LCN Door Closer
“L” for Le ; “R” for Right
Figure 2-2 Handing Labeled
X To determine Handing from standing underneath the Header: Open the Swing door. Butt your
back against the Pivot side of Swing door. Swing out the (right or left) arm in the direction the
Swing door opened. Please see .
RIGHT HANDING
DN 1049
LEFT HANDING
Pivot S le on Swing Door
Swing Door
Figure 2-3 Stand with back against Pivot Side of Swing door
X To determine Handing from the direction the Swing Arm opens. Please see .
a. If the Swing Arm swings underneath the Threshold to open, it is an Outswing Unit.
b. If the Swing Arm does not swing underneath the Threshold to open, it is an Inswing Unit.
DN 1055
INSWING LEFT HAND INSWING RIGHT HAND
Threshold
OUTSWING LEFT HANDOUTSWING RIGHT HAND
Inswing Track
Outswing
Arm Moun ng Bracket
Threshold
Figure 2-4 Determine Handing
