1615

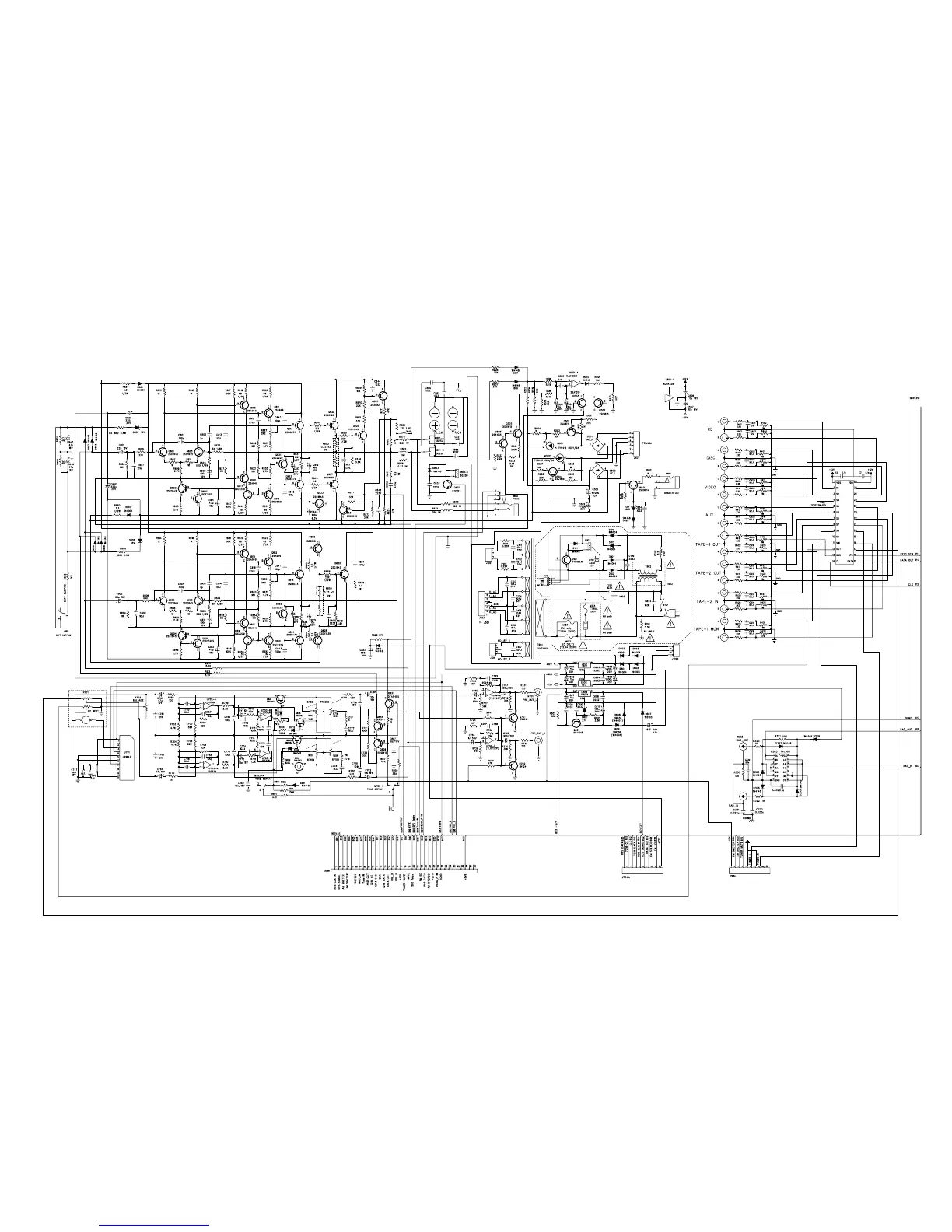

MAIN BOARD
SCHEMATIC DIAGRAM
NOTE: 1. RESISTORS ARE CARBON FILM 5% 1/8W
UNLESS OTHERWISE SPECIFIED.
2. CERAMIC CAPACITORS ARE 50V 10%
UNLESS OTHERWISE SPECIFIED.
