Connection/Disconnection of LEMO cables

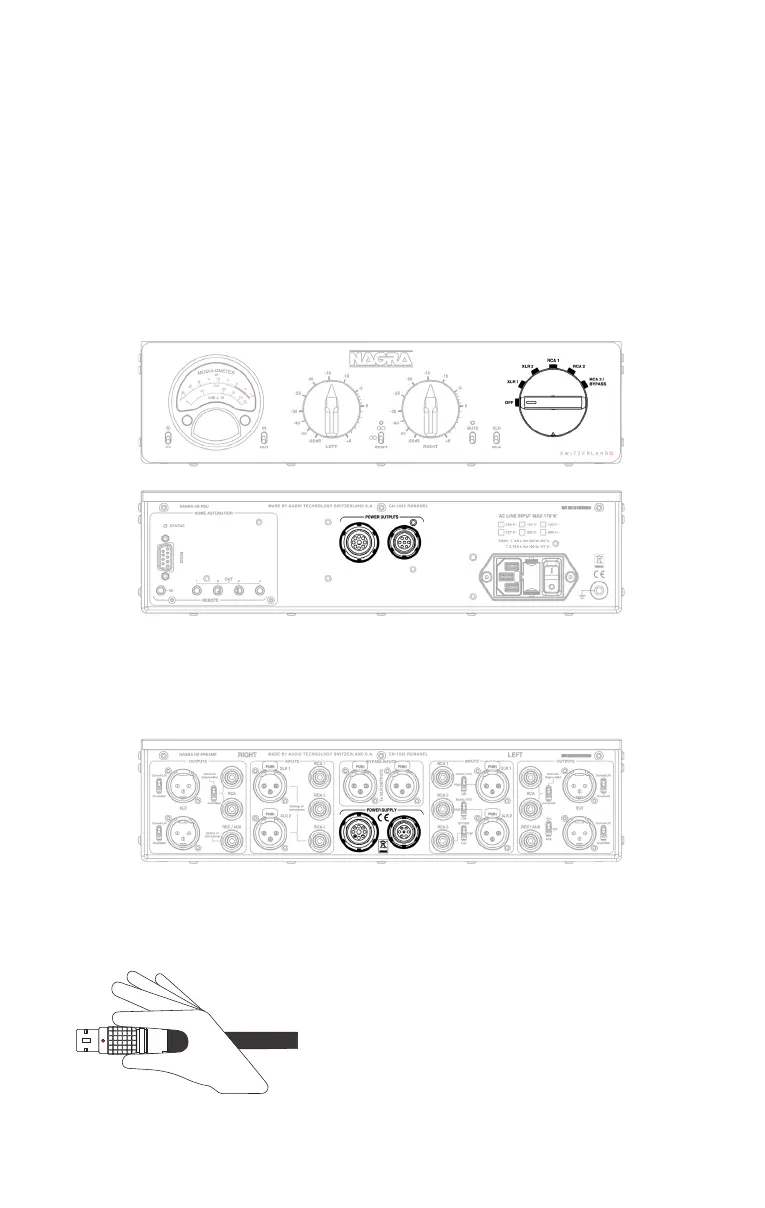

Turn the front selector of the audio device chassis to the OFF position. Insert one
LEMO plug of each umbilical cord into the matching LEMO socket at the back of
the power supply chassis. Please note that the red dot on the LEMO plugs must be
facing up before trying to insert them into the chassis sockets. You will hear a click
indicating that the plug is securely locked in.
Repeat the procedure with the other ends of the umbilical cords, inserting them into
the LEMO sockets at the back of the audio device chassis in the same way.
To disconnect the LEMO plug, hold the knurled
section of the plug and pull it backwards.
↑
↑
↑
↑
↑
↑
