Nagra HD PREAMP - Fuse Replacement

HD DAC X
HD PSU
ANALOG
DIGITAL
HD PREAMP
ANALOG
DIGITAL
HD PSU
HD DAC X
HD PSU
ANALOG
DIGITAL
ANALOG
DIGITAL
HD PREAMP
HD PSU
HD DAC X
HD PSU
ANALOG
DIGITAL

HD DAC X
HD PSU
ANALOG
DIGITAL

HD DAC X
HD PSU
ANALOG
DIGITAL

HD DAC X
HD PSU
ANALOG
DIGITAL


Note

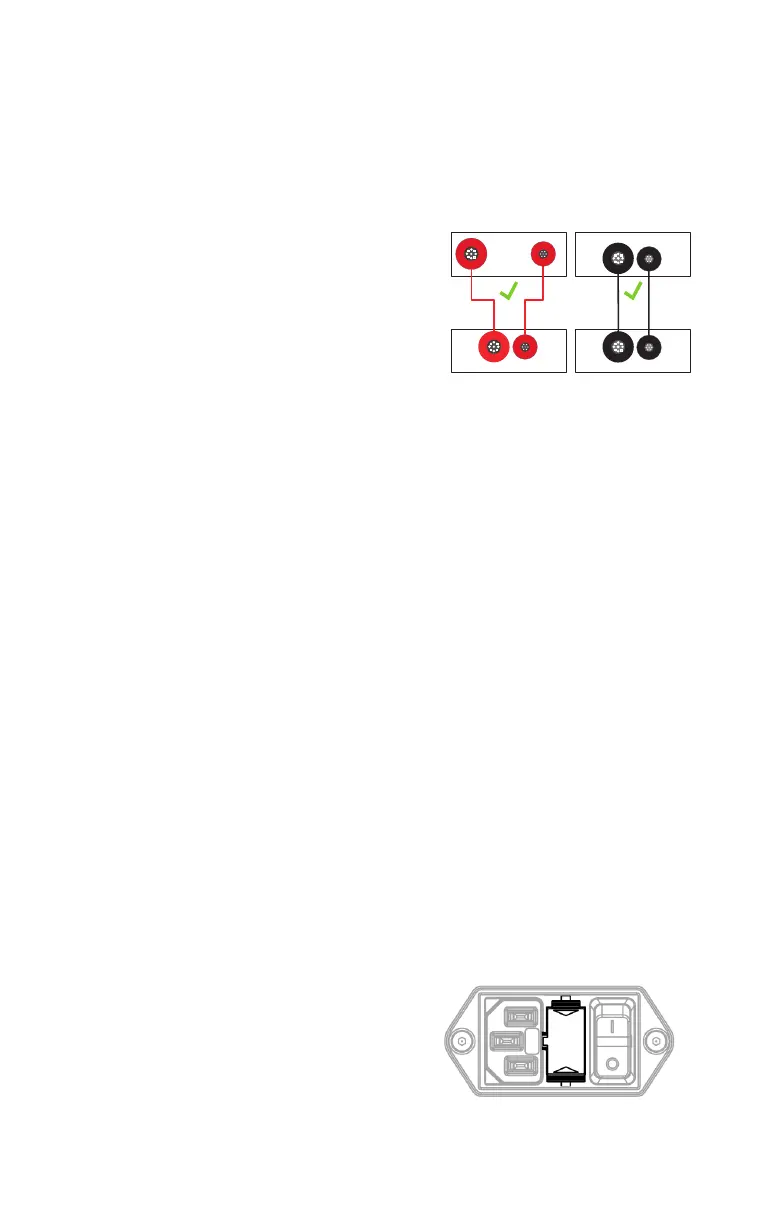

There is a coloured ring around each LEMO
socket on both chassis and around each LEMO
plug on both cables. So if you possess several
Nagra HD devices such as an HD PREAMP and
an HD DAC X, be sure to connect the right power
supply chassis with the right audio device chassis
by using the correct cables (same colour of ring).
This is important because the power supply
chassis have different output configurations.
The fuse holder located in Mains appliance
inlet, between the IEC connector and the
switch, includes a replacement fuse.
The fuse type is: FST 5x20mm 250V.
Should you need to replace it, use only the same
fuse type and value.
T 3.15A L for 100V~ to 127V~ versions.
T 2A L for 230V~ to 240V~ versions.
If you connect the wrong power supply chassis to one of your audio device chassis the
STATUS LED located on the rear panel of the power supply chassis above the SUB-D9
HOME AUTOMATION connector comes ON when you move the front rotary selector to a
position other than OFF. The audio device chassis does not switch ON for safety reasons.
↑
02
NAGRA HD PREAMP // INSTALLATION // 012 + 013
