Bypass Inputs
Both XLR Bypass input connectors are directly connected to
the XLR outputs when:
• The HD PREAMP is switched OFF.
• The RCA3 inputs are in Bypass mode and the front rotary
switch on the audio device chassis is set to RCA3/Bypass
position (see page 22).
This allows the connection of a second system, such as a
home cinema processor, to the amplifier connected to the HD
PREAMP. The pins of the XLR Bypass inputs and the XLR output
connectors are directly coupled for a true balanced signal path.

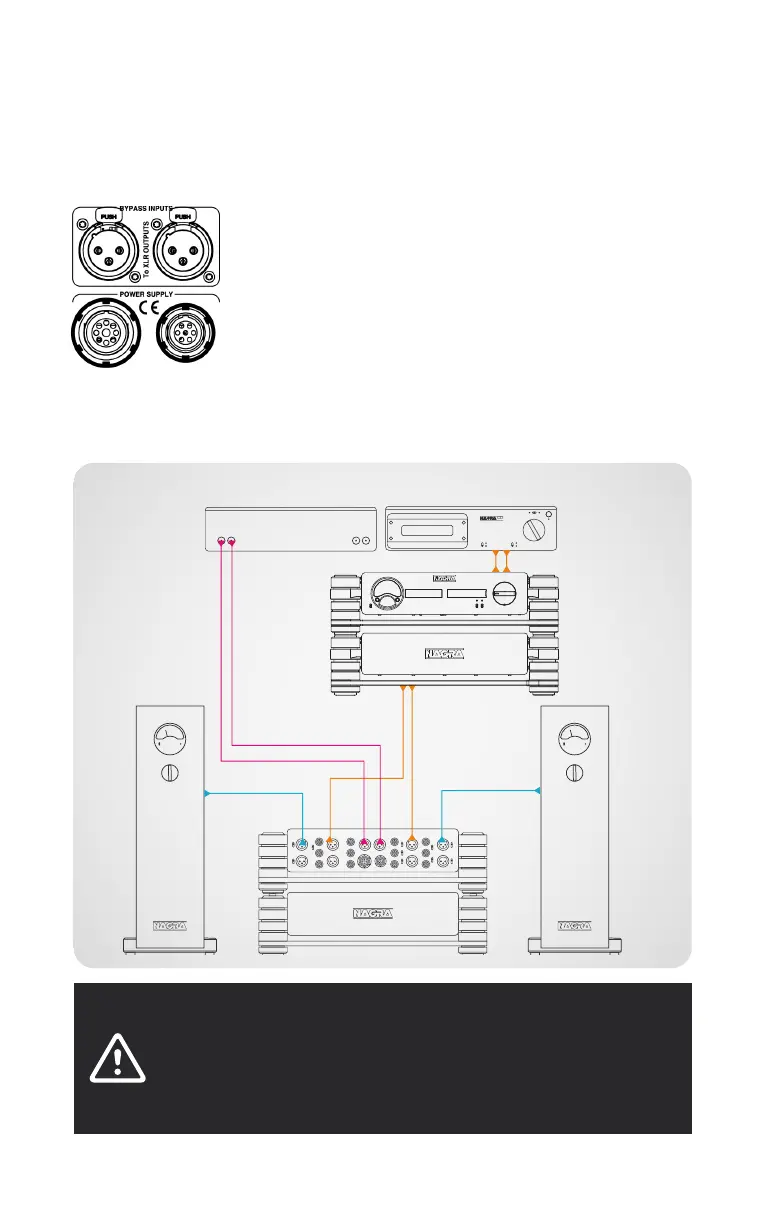

Here is an example of a configuration using the BYPASS direct path:
Home cinema processor NAGRA CD
NAGRA HD DAC X
NAGRA HD PREAMP
NAGRA
HD AMP
NAGRA
HD AMP
WARNING
Please note that when the HD PREAMP is in Bypass mode, the volume control
is bypassed too. The signal is directly routed to the XLR outputs. Be careful when
using a source with volume control. To avoid any damage to the speakers, adjust the
volume of the source to the minimum before setting the HD PREAMP in Bypass mode.
