EN
W415-3092 / 07.13.21
15

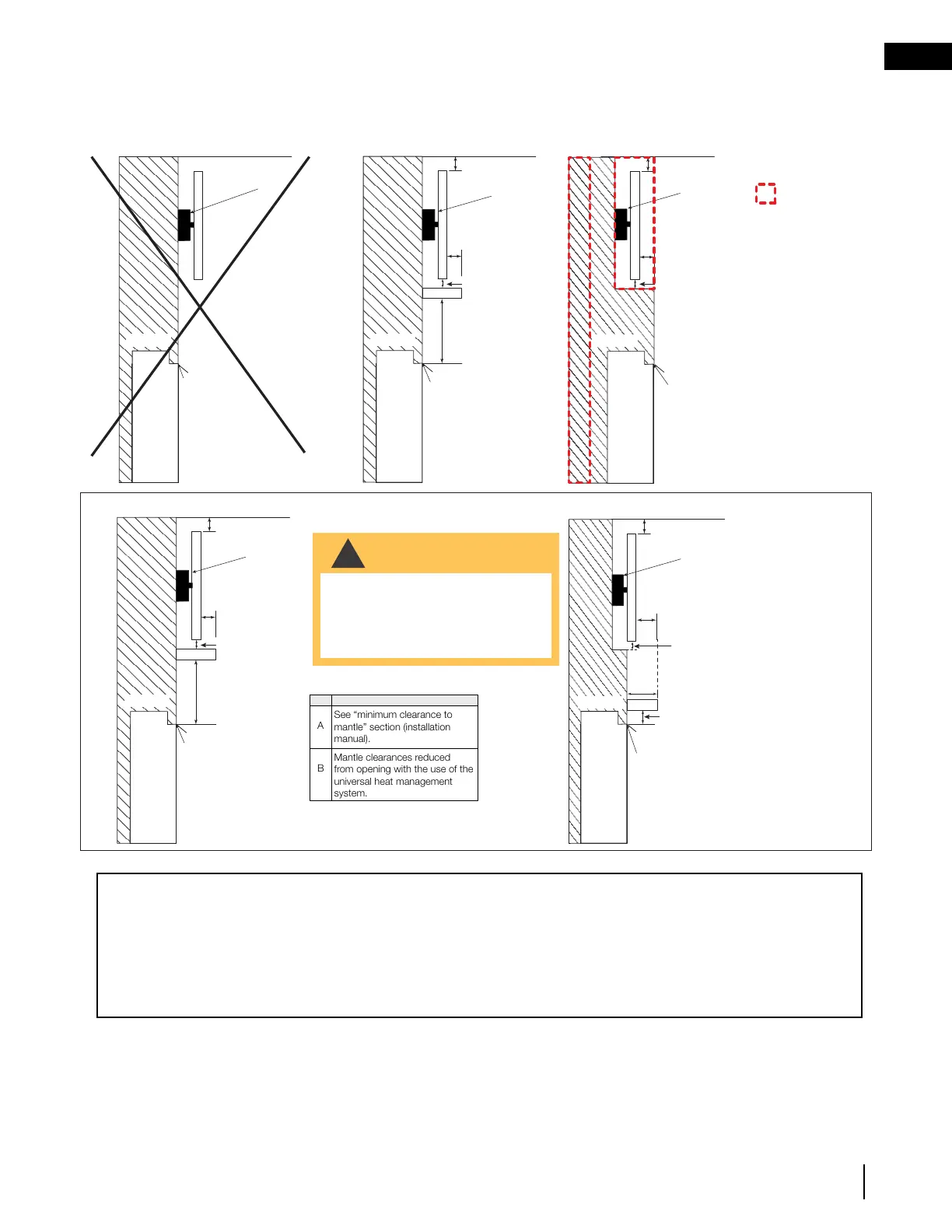

clearances around fireplace
4.2 clearances around appliance (TV and valuable objects)
* TV applications were tested with the minimum enclosure dimensions and the maximum recess permissible.
This data is provided in good faith and is not a guarantee for every application and television. Care and
consideration should be taken when planning these installations to ensure the temperatures around the TV meet
all manufacturer’s recommended operating temperatures. Increasing the height of the mantel and/or TV above
the fireplace opening, the protrusion of mantel and the volume of the enclosure all have the effect of reducing
the temperature above the fireplace. It is always recommended to use the optional heat management kit
when considering mounting a television above the fireplace.
6” min.
Appliance opening
2.5” min.*
2” min.
(3” max.
recommended)
6” min.
2.5” min.*
Enclosure
Enclosure
TV bracket
TV bracket
mantel
Recessed installation with
protrusion
Appliance opening
2” min.
(3” max. recommended)
Appliance
opening
Enclosure
TV bracket
Flush installation without
mantel
Appliance
Appliance
Appliance
The volume of
air must be
added to the
enclosure to
accomodate
the recessed
area.
6” min.
Enclosure
TV bracket
Partially recessed installation with mantel
Appliance opening
Appliance
Enclosure
A
3” min.
See “minimum clearance to
mantle” section (installation
manual).
Mantle clearances reduced
from opening with the use of the
universal heat management
system.
12”
max.
2.5” min.*
2” min.
(3” max.
recommended)
6” min.
Appliance opening
2.5” min.*
2” min.
(3” max.
recommended)
Enclosure
TV bracket
Flush installation with mantel
Enclosure
Appliance
B
These applications are
only acceptable when the
Universal Heat Management
kit is installed.
!
WARNING
