Napoleon BL46NTE - Vent Shield Installation (BL46 Only)

EN
W415-1705 / A / 07.13.17
21
venting requirements
3.8 vent shield installation (BL46 only)

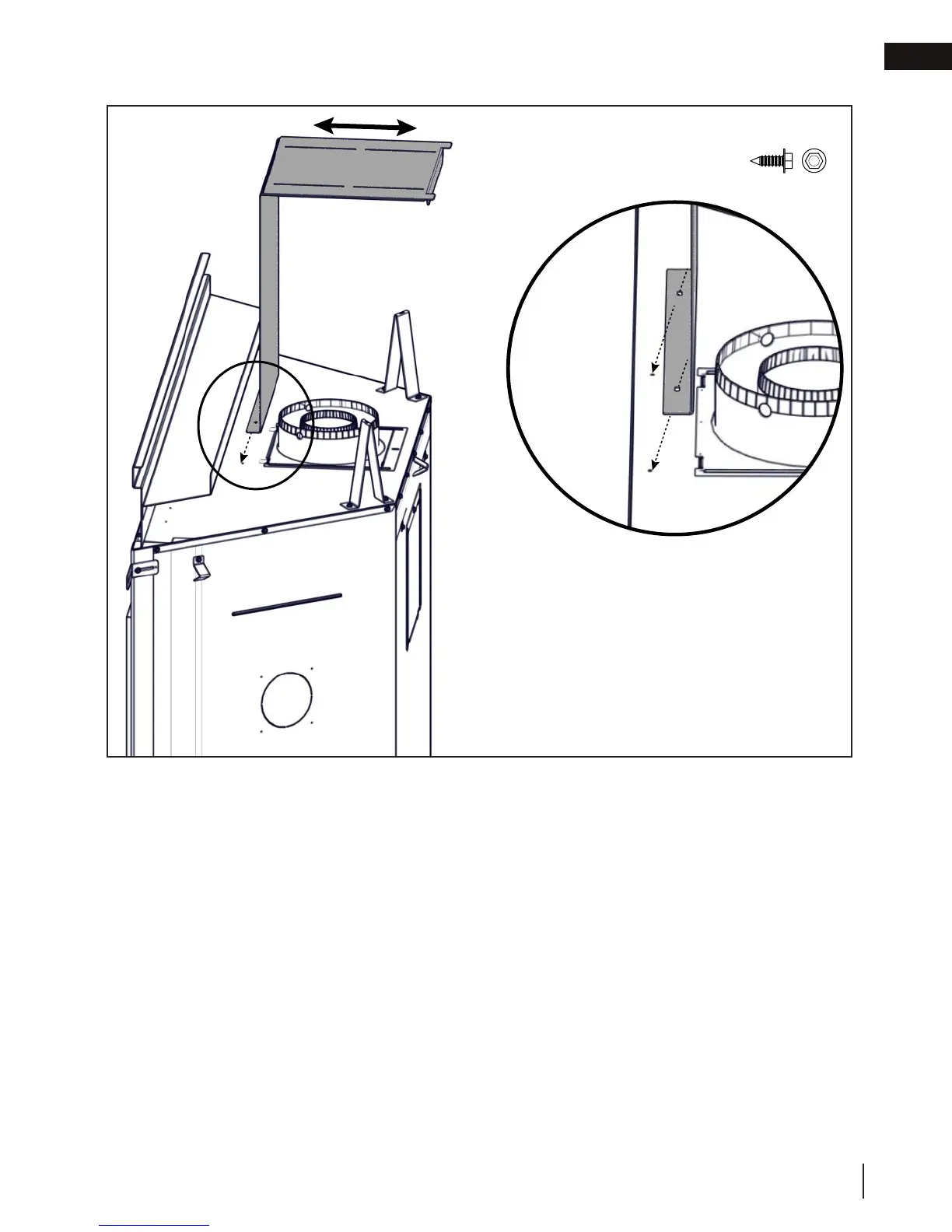

A. Form vent shield to a 90° angle (as illustrated in installation step above).
B. Install the vent shield by securing it to top of appliance using 2 screws (supplied).
C. Adjust vent shield top to suit horizontal run.
#2 X2
