EN
W415-1705 / A / 07.13.17
35
electrical information

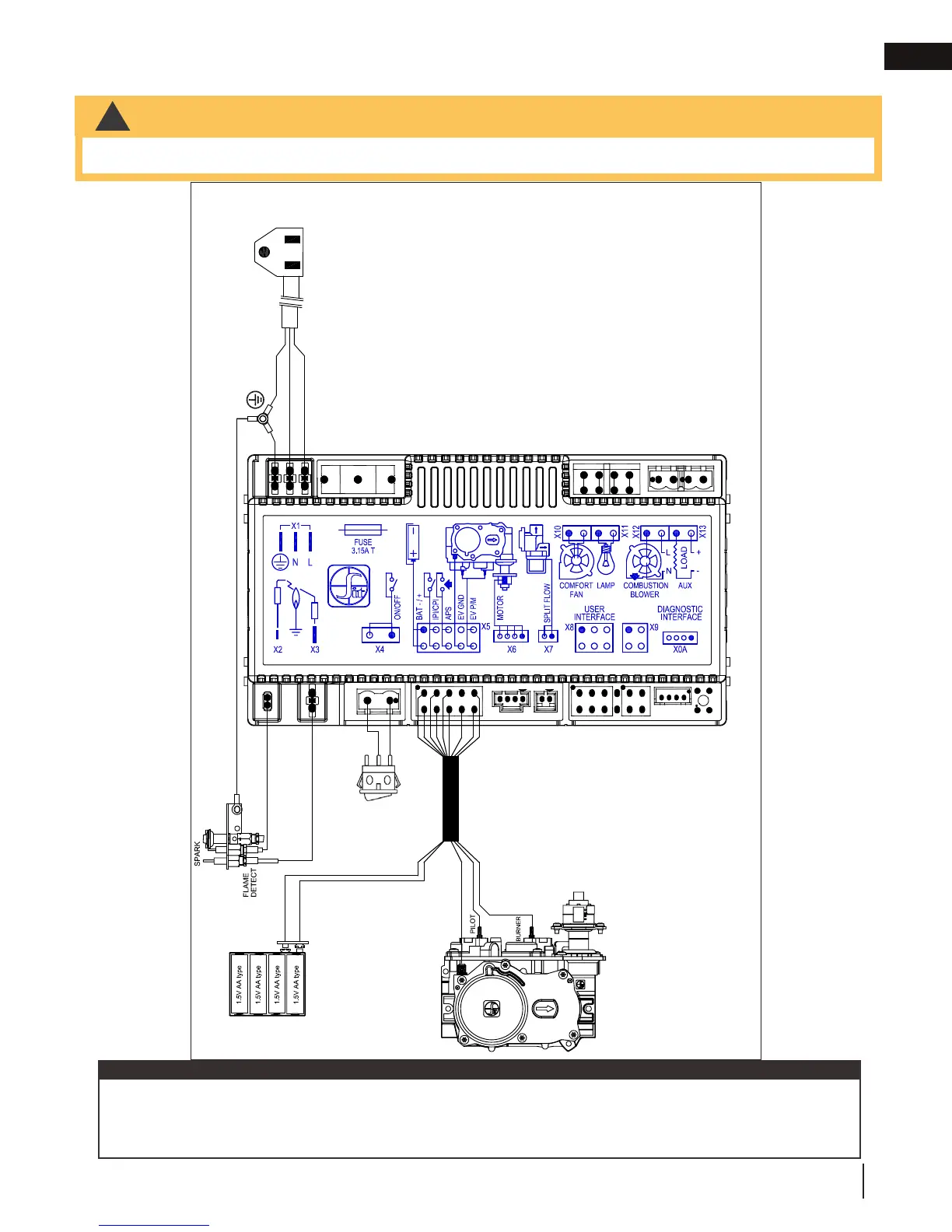

6.6 wiring diagram
PILOT
W725-0062 (NG)
W725-0063 (LP)
GAS VALVE
W750-0267
WIRE HARNESS
W175-0633
(CONNECTOR)
885 PROFLAME
MAIN ON/OFF
SWITCH
W350-0702
(BATTERY HOUSING)
BATTERY
PACK
W010-2763 (NG)
W010-2808 (LP)
(PILOT ASSEMBLY)
W750-0274
(POWER CORD)
APPLIANCE
GROUND STAR
MAIN
LINE
W190-0113
CONTROL MODULE
• Do not wire 110 volts to the valve or wall switch.
!
WARNING
This appliance comes equipped with a battery back-up. If this back-up is used, install 4 ‘AA’ batteries (not
supplied) into the holder and connect to the wire harness. Connect the battery holder to the wire harness before
using the appliance. Place near the IPI board. If the back-up is used, it must be connected to this 6 volt battery
pack (supplied). Do not connect to a 9 volt battery pack.
note:
