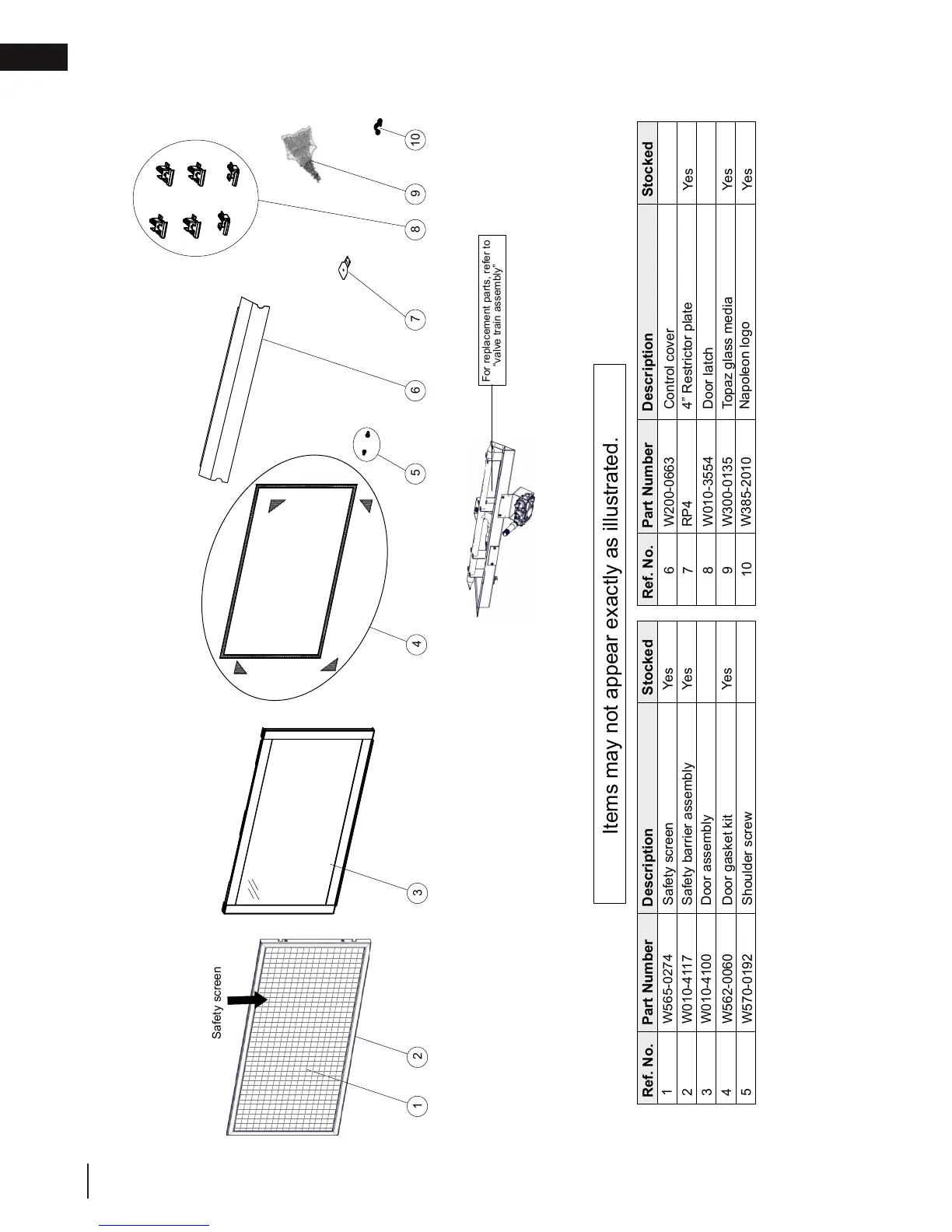

BL46 OVERVIEW
Ref. No.
Part Number
Description
3
4
Ref. No.
Part Number
Description
Items may not appear exactly as illustrated.
2
1
Stocked
Stocked
W200-0663
Control cover
Yes
W570-0192
Shoulder screw
For replacement parts, refer to
“valve train assembly”
W010-4100
Door assembly
W562-0060
Door gasket kit
Yes
W300-0135
Topaz glass media
Yes
W385-2010
Napoleon logo
Yes
Safety screen
W565-0274
Safety screen
3
1
2
W010-4117
Safety barrier assembly
Yes
8
7
6
9
RP4
4” Restrictor plate
Yes
W010-3554
Door latch
4
5
6
8
9
10
7
