39
IOM
W415-2288 / 08.29.2019

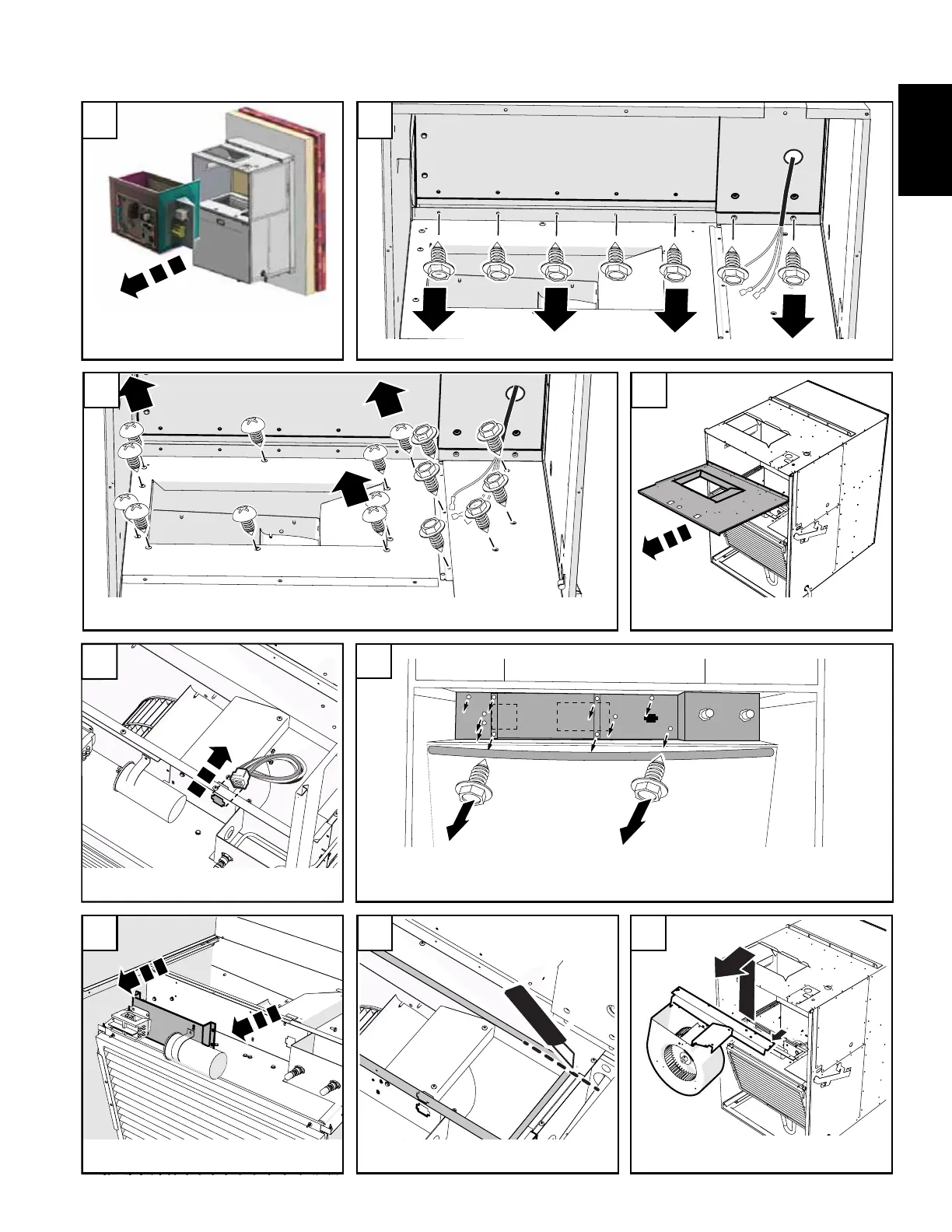

5.2.3 Blower Removal
Lift and remove blower from cabinet.
Remove seven screws along the back.
Remove Molex connector from the
front blower plate.
Remove 10 screws from the front blower plate and electrical plate
(with capacitor and contactor on it).
Remove electrical plate (with capacitor
and contactor on it).
Remove heating module.
Refer to steps 1-16 from ”Heating
Module Removal” section.
Remove 10 round head and 6 hex head screws.
Remove top blower plate.
Cut weather stripping at the right corner.
41
43
44
42
45
494847
46
To Next Page
