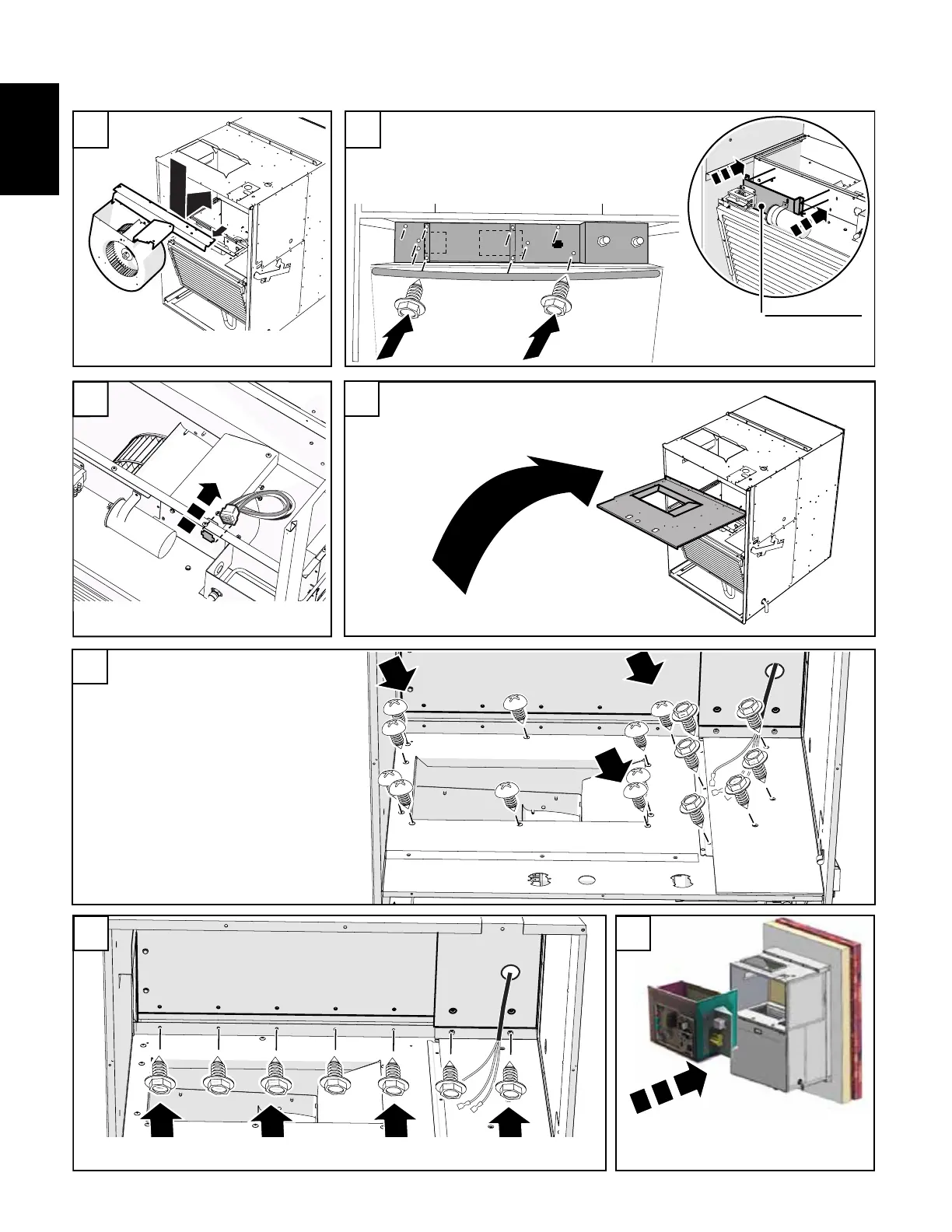

Place top blower plate back into place..
Lift and place blower down into cabinet.
Connect Molex connector to the
front blower plate.
Install 10 screws to the front blower plate and
electrical plate (with capacitor and contactor on it).
Install electrical plate (with
capacitor and contactor attached).
Secure top blower plate using 10 round head
screws and 6 hex head screws.
Install seven screws along the back.
Check the insulation strip for damages.
Install heating module back.
Refer to steps 1-16 from ”Heating
Module Removal” section.
Electrical plate
50 51
52
5655
53
54
