maintenance
Your appliance comes equipped with our “Night Light™”. The light has been pre-wired and is controlled from the
remote control.
If the lamp or lens needs to be replaced, follow the instruc-
tions below.
A. Unplug the appliance (plug located on right side of
appliance).
B. Remove the 4 screws that secure the lens frame
(Fig. 1). This frame retains the glass lens. The lamp
can now be accessed.
The lamp will pull straight out of the socket. Replace with Wolf Steel parts only, as lamp and lens are special “high
temperature” products. When re-installing, ensure integrity of gasket seal.
THE FIREBOX MUST BE SEALED.
Over-tightening the screws could break the lens. “Light Leakage” from the upper area
may be observed. The holes in the lamp housing are necessary for ventilation and must
not be covered.
GASKET
LENS
FRAME
COLOURED SIDE UP
JOINT
D’ÉTANCHÉITÉ
LENTILLE
CADRE
CÔTÉ COLORÉ
AU-DESSUS
6.6 night light™ replacement (GDIG3 / GDIX3)
note:
Do not handle the lamp (bulb) with bare fingers.
Protect them with a clean, dry cloth.
Bottom of Appliance

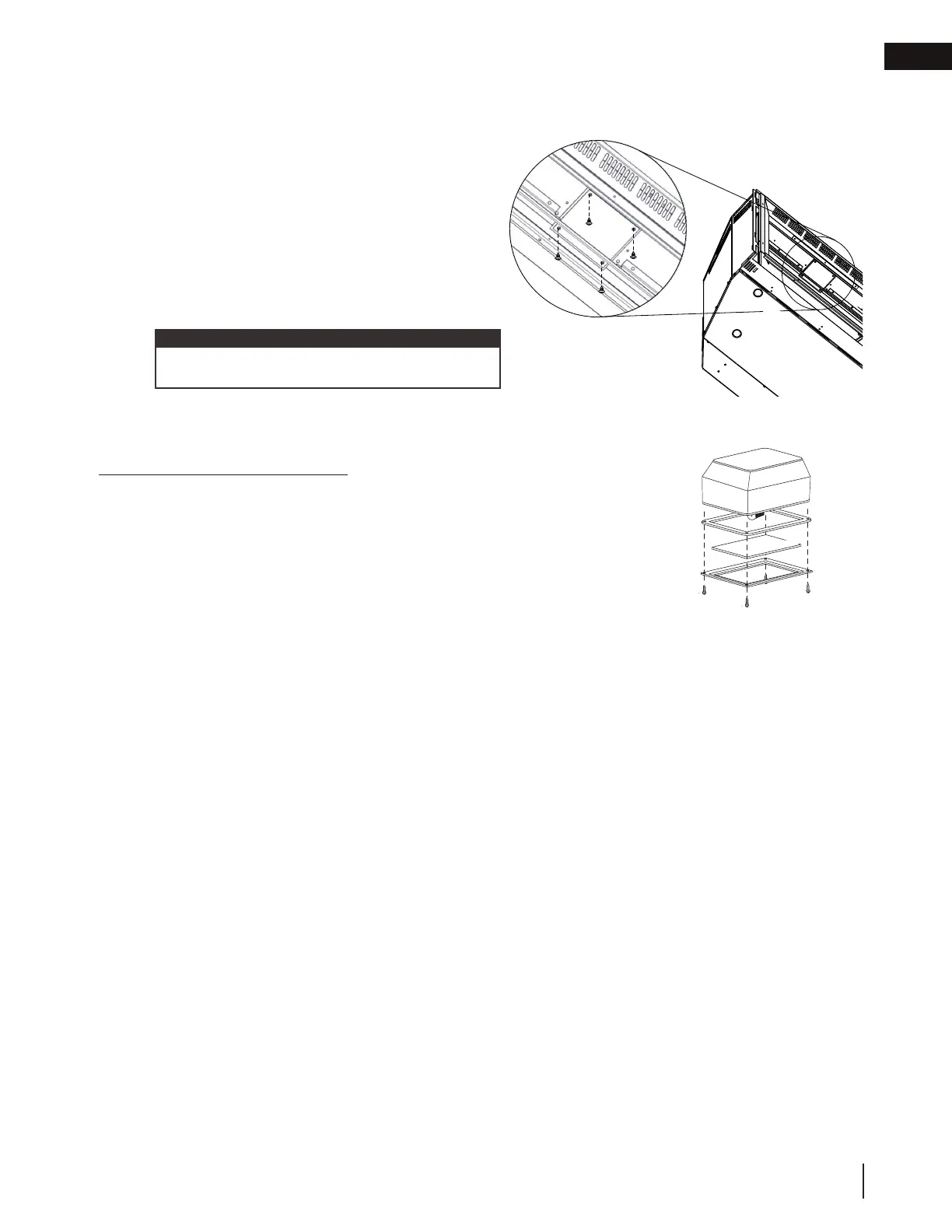

Fig. 1
GDIG3 Illustrated
