4-14 Description
When entering the Open Waterfall function a screen similar to the following
appears:

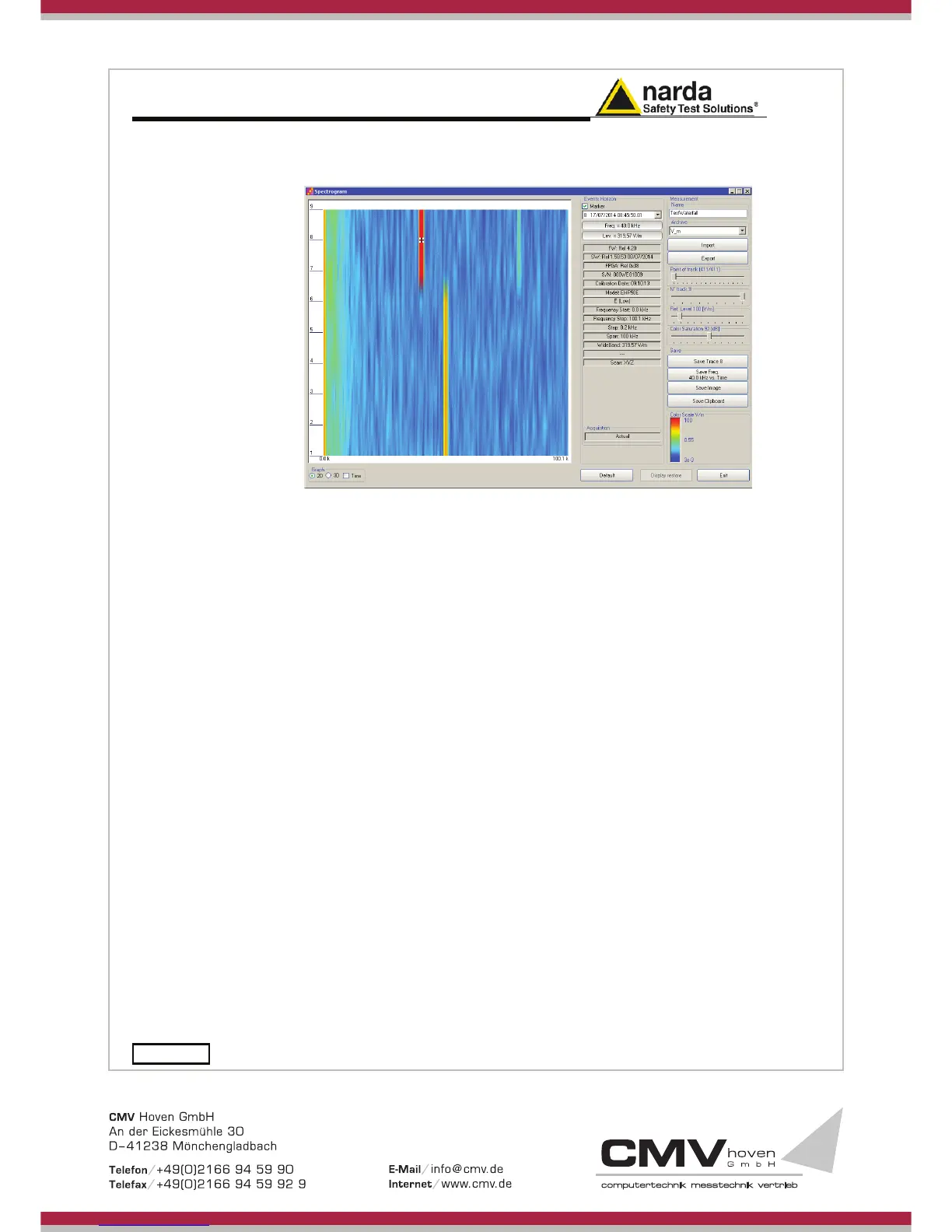

Fig.4-6 Waterfall Main Window
Like during the scan, on the left is the spectrogram of the measurements.
The column in the middle, called Events Horizon, reports the Marker with its
frequency and level and many parameters of the measurement setup and of
the probe used.
On the right, in addition to Ref. Level and Color Saturation, there are two
more sliders, useful to set the frequency resolution (Point of Track) and the
time interval (N° track).
It is also possible to Import or Export a full acquisition by pressing the
corresponding button in the Archive box. The name of the measurement can
be typed in the Name box and from the list it is possible to select an already
saved one.
In the Save box two or four buttons (depending on the marker activation)
can be pressed to save:
- a single trace (Levels vs Frequencies)
- a single Frequency (Levels vs Time)
- an image of the spectrogram
- the clipboard
