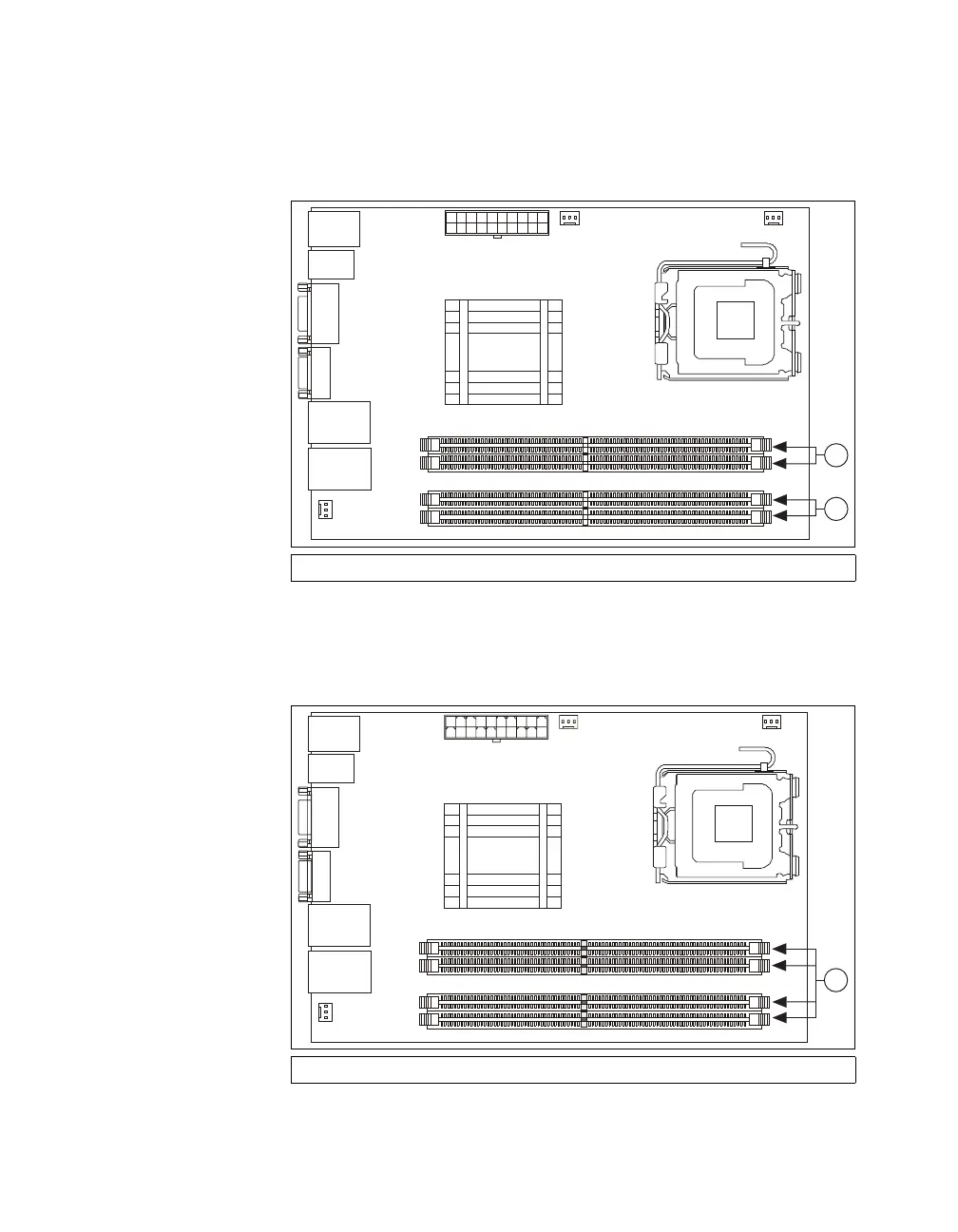

Figure B-20 shows two different pairs of identical DIMMS—two identical
DIMMs in DIMM 1 an DIMM 2 and two identical DIMMs in DIMM 3 and
DIMM 4.
Figure B-20. Two Different Pairs of Identical DIMMs
Figure B-21 shows four identical DIMMs installed in DIMM 1 through
DIMM 4.
Figure B-21. Four Identical DIMMs
1 First Pair of Identical DIMMs 2 Second Pair of Identical DIMMs
1 Four Identical DIMMs
