National Instruments Compact FieldPoint cFP-20 Series User Manual

Chapter 3 Feature Descriptions
© National Instruments Corporation 3-7 cFP-20xx and cFP-BP-x User Manual
COM 1
COM 1 is an RS-232 DTE serial port with a standard DB-9 connector. The
Serial Port VIs access COM 1 as port 0. Figure 3-2 shows the locations of
the DB-9 connector pins and Table 3-2 lists the signals on the pins.

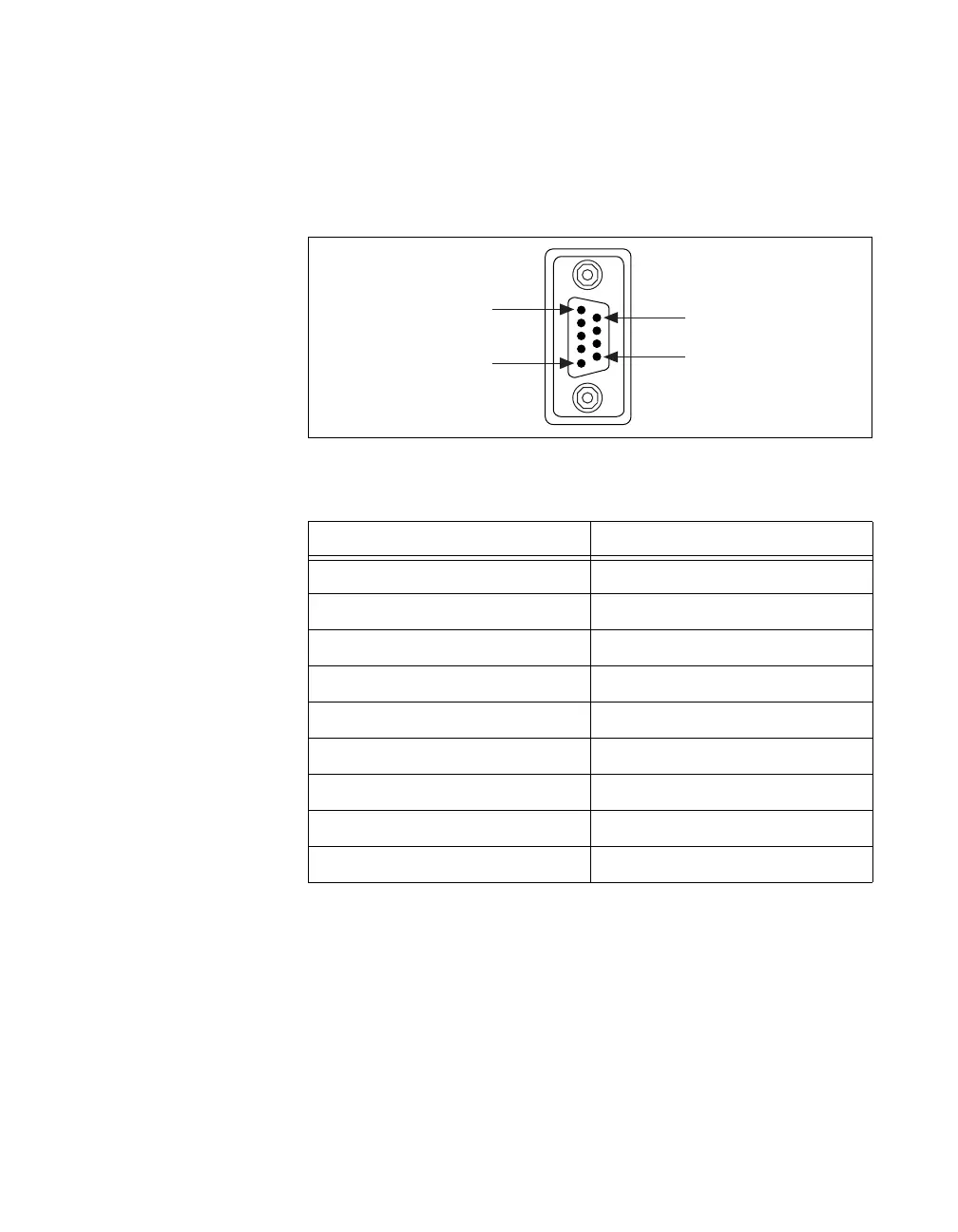

Figure 3-2. DB-9 Connector Pin Locations
COM 2 (cFP-2010 and cFP-2020 Only)
COM 2 is an RS-232 DTE serial port with a 10-position modular jack. The
Serial Port VIs access COM 2 as port 1. Refer to Figure 3-3 and Table 3-3
for pin locations and signal descriptions.
Table 3-2. DB-9 Pin Descriptions
DB-9 Pin RS-232 Signal
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
PIN 1
PIN 9
PIN 5
PIN 6
