Chapter 2 Installing Compact FieldPoint Hardware and Software
cFP-20xx and cFP-BP-x User Manual 2-8 ni.com
Mounting the Backplane in a Standard 19-in. Rack
In order to mount the cFP-BP-x backplane in an EIA standard 19 in. rack,
you need the rack-mount kit. You can order the kit, part number
778615-01, from NI.

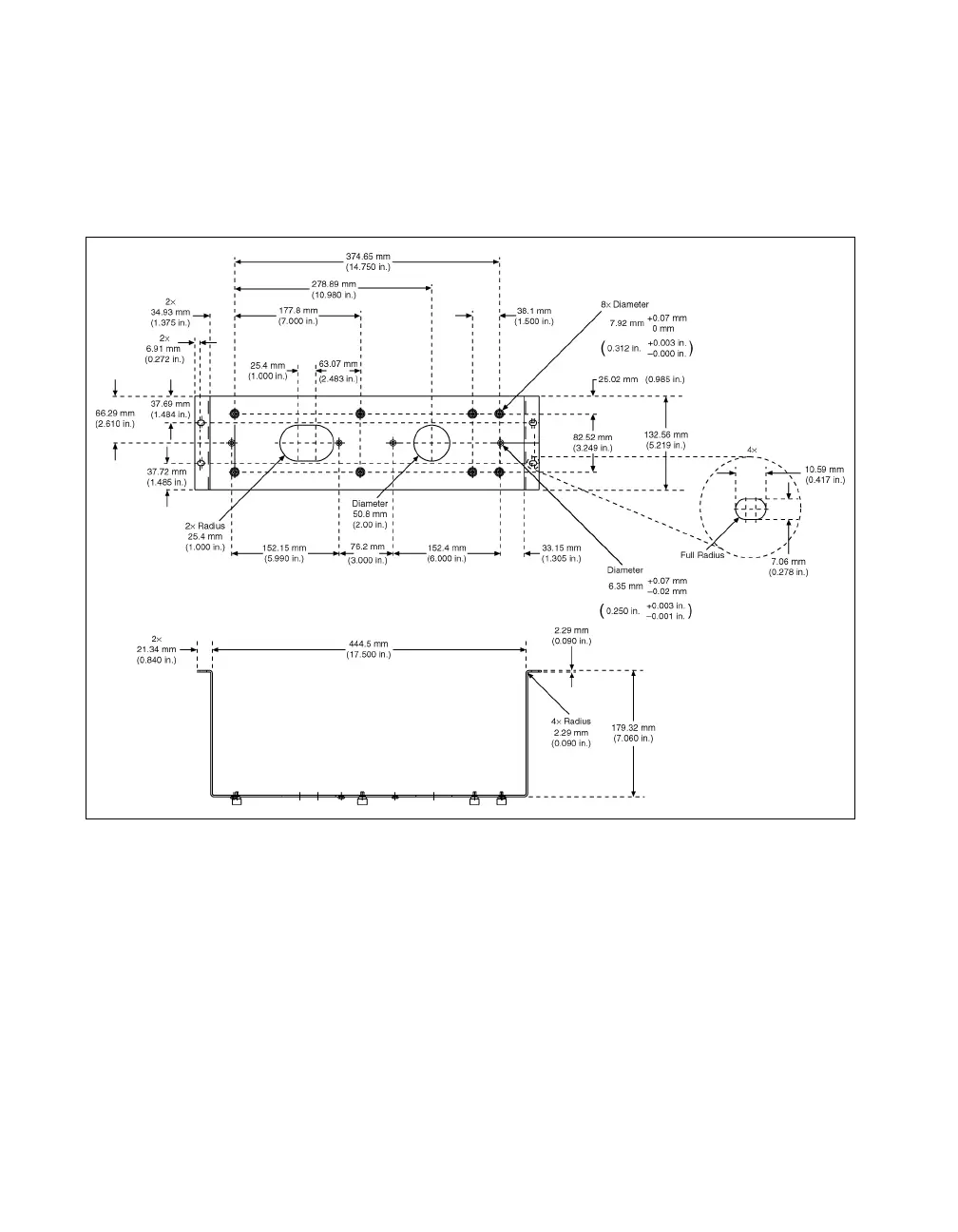

Figure 2-6. Dimensions of Compact FieldPoint Rack-Mount Kit,
Part Number 778615-01
Complete the following steps to mount the backplane in a rack:
1. Fasten the rack-mount bracket to the back of the cFP-BP-x using
the captive screws on the bracket. Refer to Figures 2-7 and 2-8.
