Chapter 2 Installation
GPIB-ENET/100 for Windows Me/98/95 2-4 ni.com
Step 2. Connect the Cables
Note
If you do not have an Ethernet cable, as listed in the What You Need to Get Started
section of Chapter 1, Introduction, contact National Instruments for ordering information.
Figure 2-4 shows the locations of the power, Ethernet, and GPIB
connections on the rear panel of the GPIB-ENET/100.

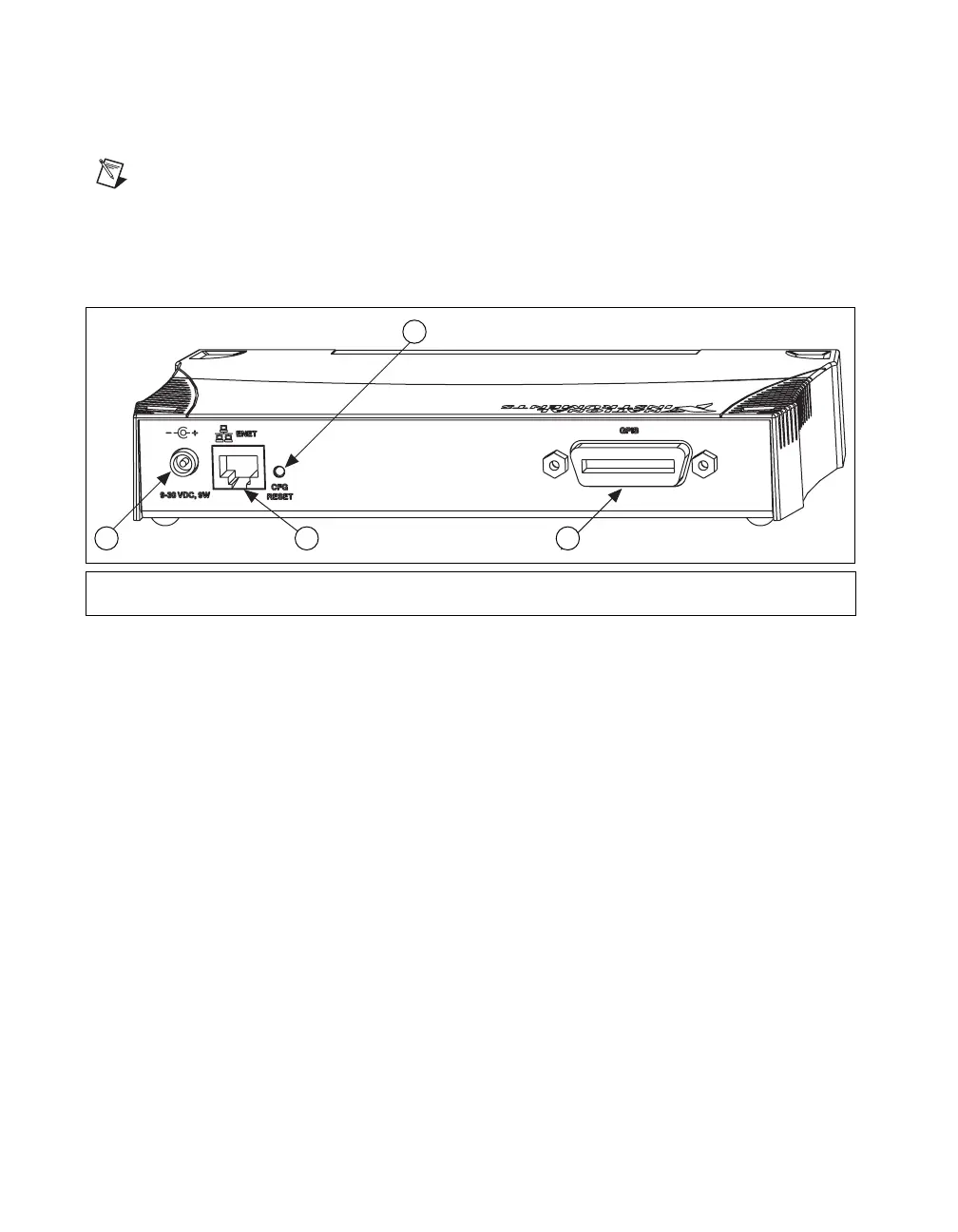

Figure 2-4.
GPIB-ENET/100 Rear Panel
To connect your cables, complete the following steps:
1. Connect one end of your Ethernet cable to your GPIB-ENET/100.
Connect the other end of the Ethernet cable to your Ethernet network.
Make sure you comply with all IEEE 802.3 cabling restrictions.
2. Because AC outlets vary throughout the world, your kit includes a
power cord that meets your local requirements in addition to a power
supply. Figure 2-5 shows how to hook up your power cord and
power supply.
a. Plug one end of the power cord you received in your kit into the
power supply.
b. Screw the power connector on the other end of the power supply
onto the power jack of the GPIB-ENET/100.
c. Plug the other end of the power cord into an AC outlet.
1 Configuration Reset Switch
2 Power Connection
3 Ethernet Connection
4 GPIB Connector
4
1
32
