Appendix A Device-Specific Information
X Series User Manual A-22 ni.com
NI 6356/6366
The following sections contain information about the NI PXIe-6356,
NI USB-6356 Screw Terminal, NI PXIe-6366, NI USB-6366 Mass
Termination, and NI USB-6366 Screw Terminal devices.
NI 6356/6366 Pinout
Figure A-12 shows the pinout of the NI PXIe-6356/6366. For a detailed
description of each signal, refer to the I/O Connector Signal Descriptions
section of Chapter 3, Connector and LED Information.

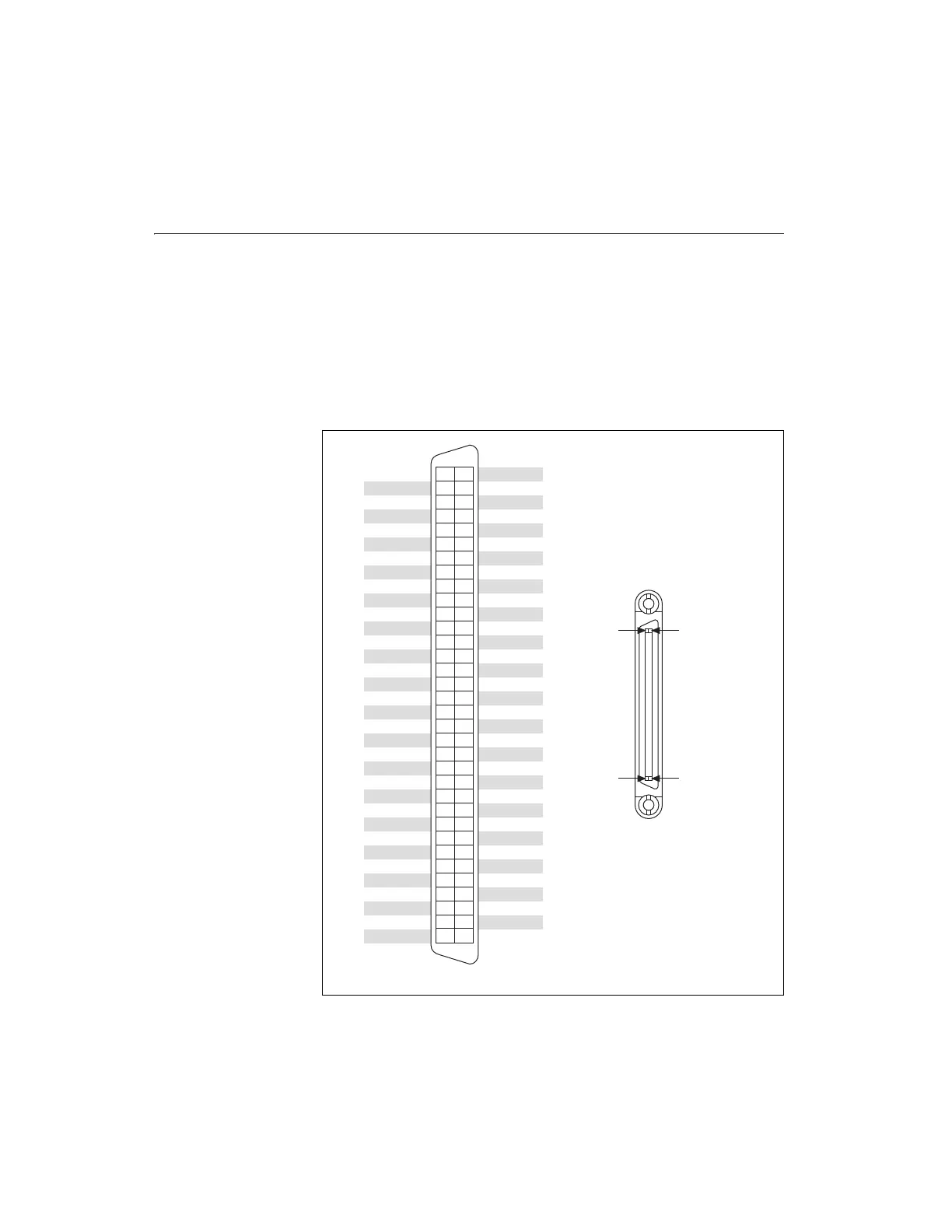

Figure A-12. NI PXIe-6356/6366 Pinout
D GND
D GND
PFI 8/P2.0
PFI 7/P1.7
PFI 15/P2.7
PFI 13/P2.5
PFI 4/P1.4
PFI 3/P1.3
PFI 2/P1.2
D GND
PFI 10/P2.2
PFI 11/P2.3
P0.3
P0.7
P0.2
D GND
P0.5
P0.0
D GND
AO GND
AO GND
AI 7 GND
AI 7+
AI 6–
AI 5 GND
AI 5+
AI 4–
NC
AI 3–
AI 2 GND
AI 2+
AI 1–
AI 0 GND
AI 0+
PFI 14/P2.6
PFI 9/P2.1
D GND
PFI 5/P1.5
D GND
+5 V
D GND
PFI 12/P2.4
PFI 6/P1.6
PFI 1/P1.1
PFI 0/P1.0
D GND
D GND
+5 V
D GND
P0.6
P0.1
D GND
P0.4
APFI 0
AO 1
AO 0
AI 7–
AI 6 GND
AI 6+
AI 5–
AI 4 GND
AI 4+
AI 3 GND
AI 3+
AI 2–
AI 1 GND
AI 1+
AI 0–
68 34
67 33
66 32
65 31
64 30
63 29
62 28
61 27
60 26
59 25
58 24
57 23
56 22
55 21
54 20
53 19
52 18
51 17
50 16
49 15
48 14
47 13
46 12
45 11
44 10
43 9
42 8
41 7
40 6
395
384
37 3
362
351
TERMINAL 34TERMINAL 68
TERMINAL 1TERMINAL 35
CONNECTOR 0
(AI 0-7)
NC = No Connect
