Appendix A Device-Specific Information
E Series User Manual A-6 ni.com
NI 6013/6014 Block Diagram

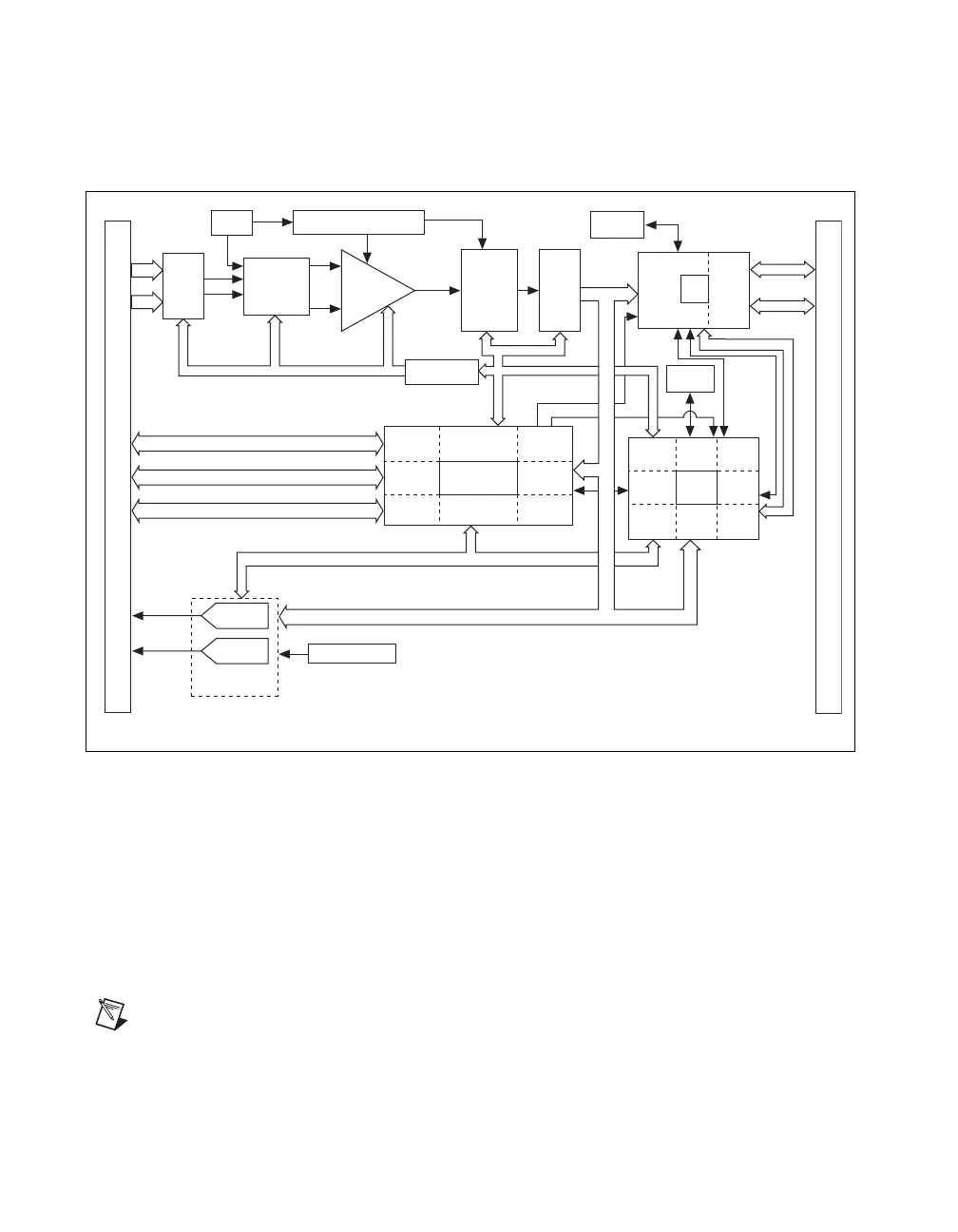

Figure A-3 shows a block diagram of the NI 6013/6014.
Figure A-3. NI 6013/6014 Block Diagram
NI 6013/6014 Specifications
Refer to the NI 6013/6014 Family Specifications for more detailed
information on the devices.
NI 6013 Pinout
Figure A-4 shows the NI 6013 device pinout.
Note Some hardware accessories may not yet reflect the NI-DAQmx terminal names. If
you are using an E Series device in Traditional NI-DAQ (Legacy), refer to Table 1-5,
Terminal Name Equivalents, for the Traditional NI-DAQ (Legacy) signal names.
