Appendix A Device-Specific Information
© National Instruments Corporation A-25 E Series User Manual
Note The BNC version of the DAQPad-6020E has a 30-pin I/O connector.
Because the DAQPad-6020E has no DIP switches, jumpers, or
potentiometers, you can easily configure and calibrate it through software.
There are three versions of the DAQPad-6020E offering different I/O
connectivity and form factors. These versions are illustrated in Table A-3.
Note The DAQPad-6020E devices are compatible with Traditional NI-DAQ (Legacy)
only.

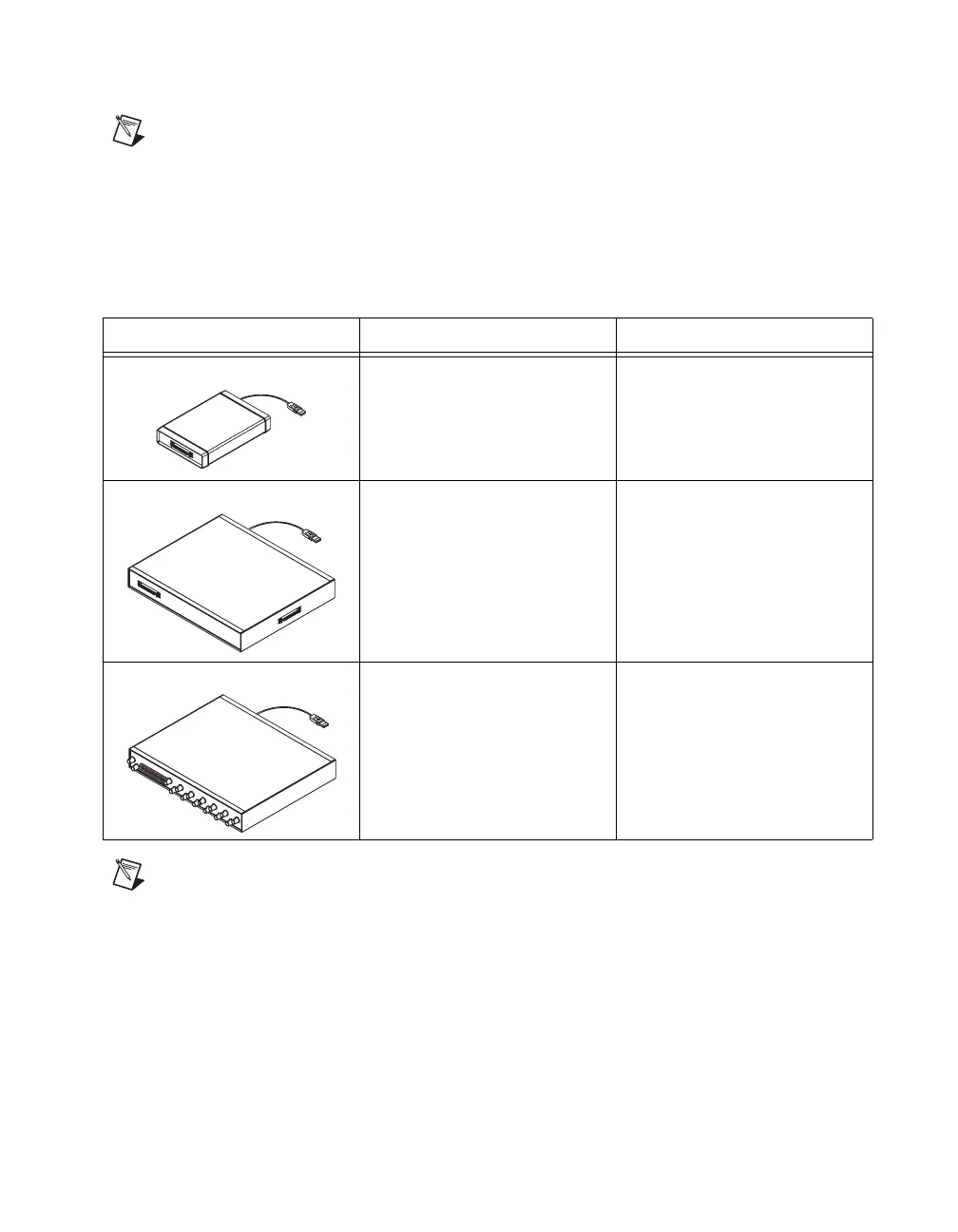

Table A-3. DAQPad-6020E Versions
Model I/O Connector Form Factor
DAQPad-6020E Half-Size 68-pin SCSI-II Male Half-size box
(5.8 in. × 8.4 in. × 1.5 in.)
Desktop use
DAQPad-6020E Full-Size 68-pin SCSI-II Male Full-size box
(12.1 in. × 10 in. × 1.7 in.)
Rack-mountable, stackable
DAQPad-6020E BNC BNC and removable screw
terminals
Full-size box
(12.1 in. × 10 in. × 1.7 in.)
Rack-mountable, stackable
