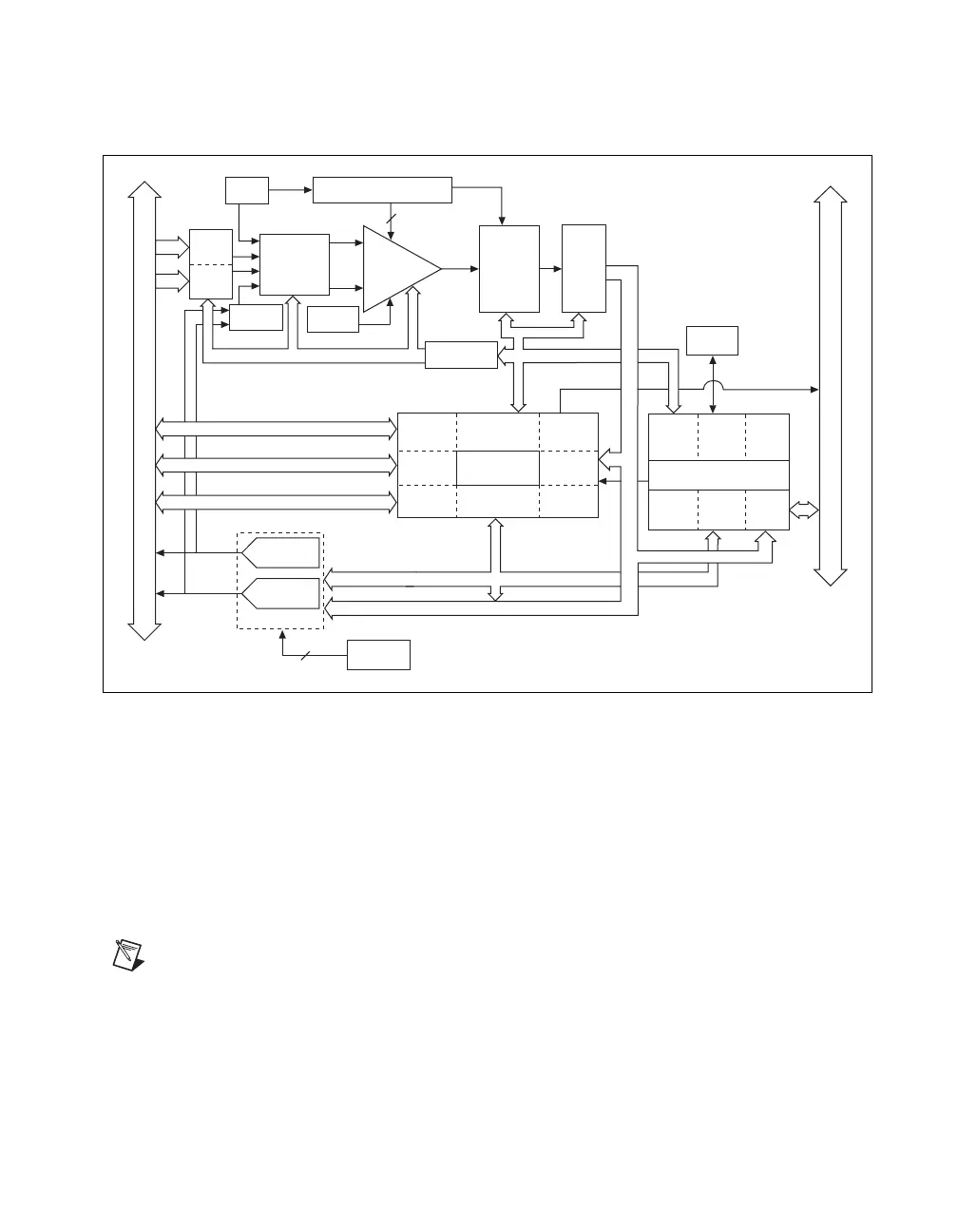

Figure A-36 shows the block diagram of the DAQCard-6024E.
Figure A-36. DAQCard-6024E Block Diagram
NI 6023E/6024E/6025E Specifications
Refer to the NI 6023E/6024E/6025E Family Specifications for more
detailed information on the devices.
NI 6023E Pinout
Figure A-37 shows the NI 6023E device pinout.
Note Some hardware accessories may not yet reflect the NI-DAQmx terminal names. If
you are using an E Series device in Traditional NI-DAQ (Legacy), refer to Table 1-5,
Terminal Name Equivalents, for the Traditional NI-DAQ (Legacy) signal names.
3
PCMCIA Connector
12-Bit
Sampling
A/D
Converter
+
NI-PGIA
Gain
Amplifier
–
Calibration
Mux
Mux Mode
Selection
Switches
Analog
Muxes
Voltage
REF
Calibration
DACs
Dither
Circuitry
DAQ - STC
Analog Input
Timing/Control
Analog Output
Timing/Control
Digital I/O
Trigger
Counter/
Timing I/O
RTSI Bus
Interface
Interrupt
Request
Bus
Interface
(8)
(8)
AI Control
Data (16)
Analog
Input
Control
EEPROM
Control
DAQ-PCMCIA
DAQ-STC
Bus
Interface
Analog
Output
Control
Bus
Interface
IRQ
ADC
FIFO
EEPROM
6
Calibration
DACs
DAC0
DAC1
AO Control
Configuration
Memory
PFI / Trigger
Timing
Digital I/O (8)
NI 6024E Only
I/O Connector
