PCI-MIO-16E-4 Block Diagram

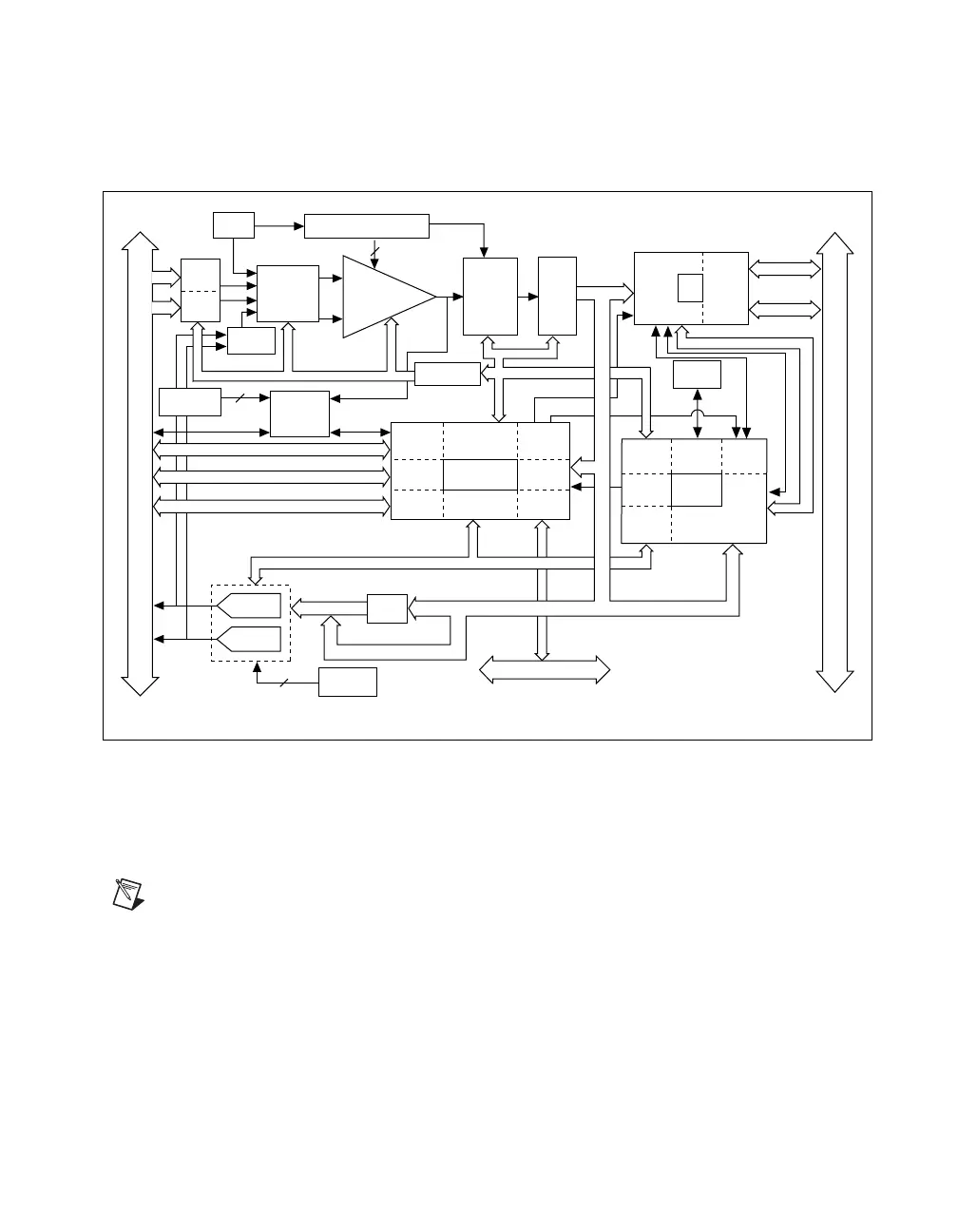

Figure A-54 shows a block diagram of the PCI-MIO-16E-4.
Figure A-54. PCI-MIO-16E-4 Block Diagram
NI PCI-MIO-16E-4 (NI 6040E) Pinout
Figure A-55 shows the PCI-MIO-16E-4 (NI 6040E) device pinout.
Note Some hardware accessories may not yet reflect the NI-DAQmx terminal names. If
you are using an E Series device in Traditional NI-DAQ (Legacy), refer to Table 1-5,
Terminal Name Equivalents, for the Traditional NI-DAQ (Legacy) signal names.
PCI Bus
Configuration
Memory
Timing
PFI / Trigger
I/O Connector
3
2
Digital I/O (8)
12-Bit
Sampling
A/D
Converter
NI-PGIA
Gain
Amplifier
–
Calibration
Mux
Mux Mode
Selection
Switches
Voltage
REF
Calibration
DACs
6
Calibration
DACs
DAC0
DAC1
DAQ - STC
Analog Input
Timing/Control
Analog Output
Timing/Control
Digital I/O
Trigger
Counter/
Timing I/O
RTSI Bus
Interface
DMA/
Interrupt
Request
Bus
Interface
(8)*
(8)*
AI Control
IRQ
DMA
AO Control
Data (16)
Trigger Level
DACs
Analog
Trigger
Circuitry
Data (16)
Trigger
EEPROM
Address/Data
Control
Data (16)
Analog
Input
Control
EEPROM
Control
DMA
Interface
MIO
Interface
DAQ-STC
Bus
Interface
Analog
Output
Control
I/O
Bus
Interface
Address (5)
Analog
Muxes
DAC
FIFO
ADC
FIFO
MITE
Generic
Bus
Interface
PCI
Bus
Interface
+
Data (16)
RTSI Bus
* (32) for the PCI-6071E
