5.6 Graphical Display
Multifunctional display. The content of the graphical display in the upper mid is selected
by the radio buttons underneath it. Most of them select a 'partial' display: The level or the
panning of each partial along the frequency axis is shown.

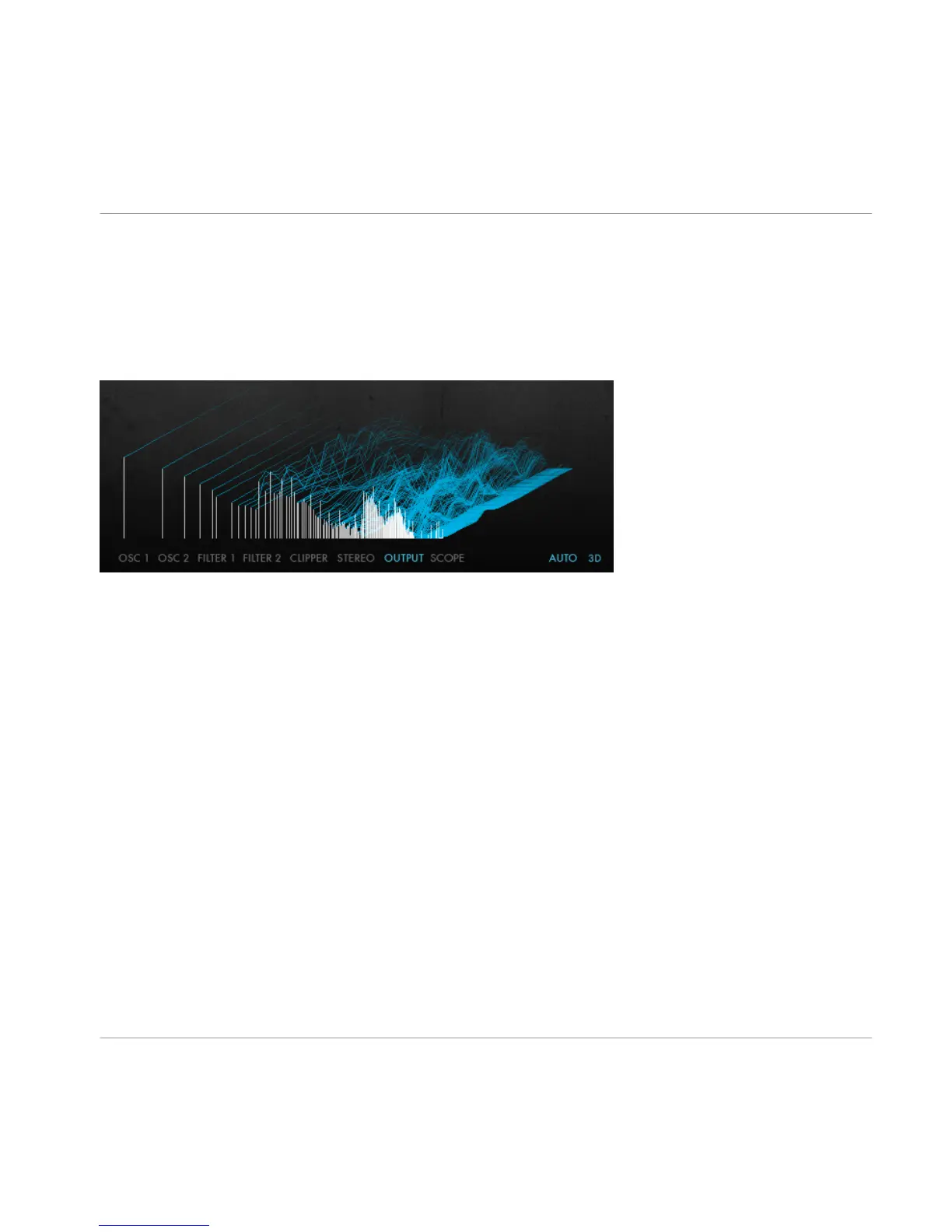

Fig. 5.6 Graphical Display.
▪
OSC 1
: Shows the spectrum of oscillator 1.
▪
OSC 2
: Shows the spectrum of oscillator 2.
▪
FILTER 1
: Shows the filter curve of filter 1.
▪
FILTER 2: Shows the filter curve of filter 2.
▪
CLIPPER: Shows the SPECTRAL CLIP threshold curve and its effect on the partial levels. The
curve is red in case SPECTRAL CLIP is active, grey otherwise.
▪
STEREO: Shows the partial panning resulting from the stereo effects.
▪
OUTPUT: Shows the spectrum of the output of the additive engine. That is after the 'Ster
eo' effects and prior the 'Dynamics' effects.
▪
SCOPE: Shows the time signal at RAZORs output. That is after the 'Master' volume con
trol. There is one scope for each stereo channel. The length of one wave cycle is made
fit to screen.
▪
AUTO: If on the display automatically selects the synthesizer section that is edited. So if
you turn a knob in oscillator 1 the display will jump to OSC 1. AUTO needs to be turned
off In case of unwanted jumps caused by parameter automation from the VST host or
from a MIDI controller.
