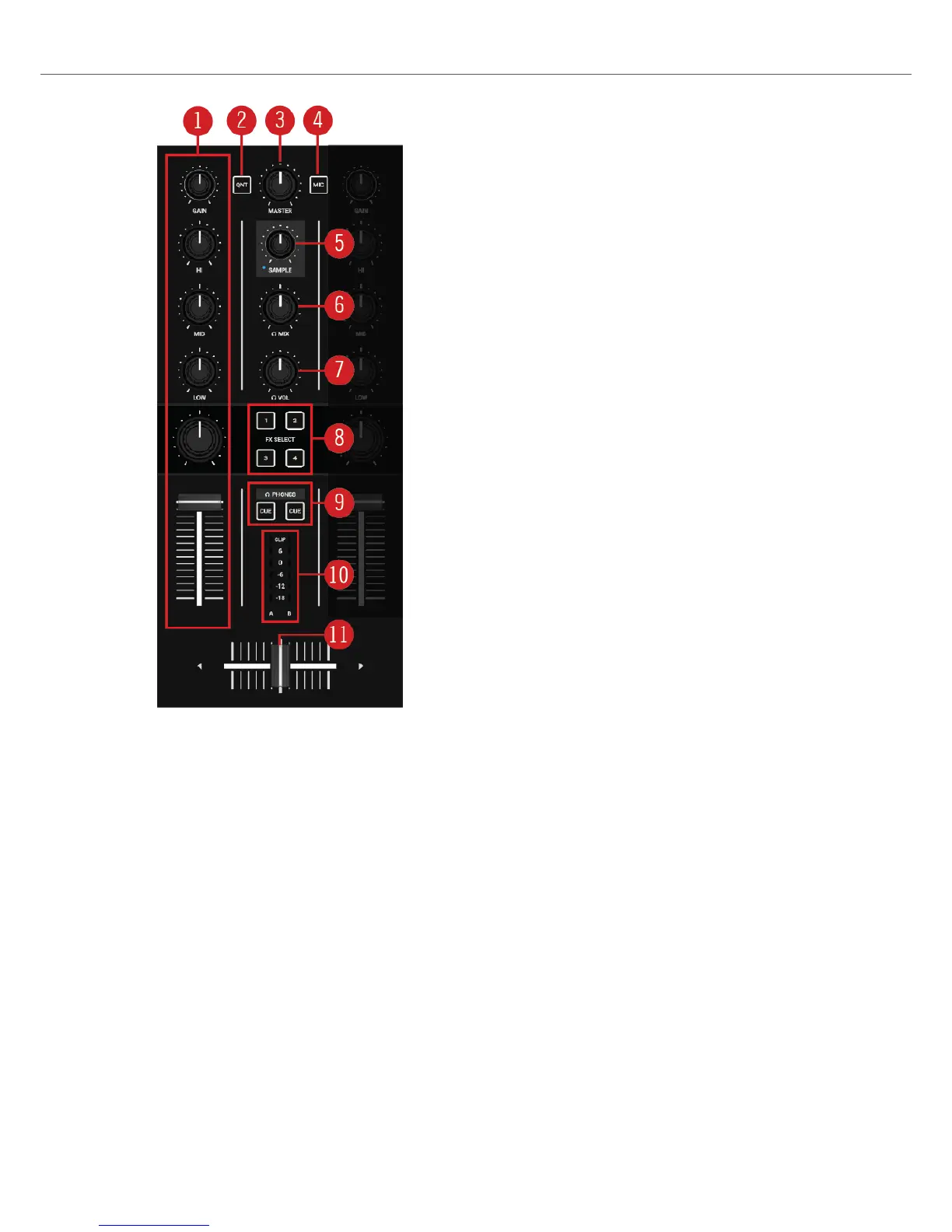

Mixer.
(1) Mixer channel A and B: Receives the incoming audio signals from the Decks, modulates the
audio signal, and adjusts the output level with its control elements. For more information, refer to
Mixer Channel.
(2) QNT: Allows you to enable or disable Quantize mode and Snap mode. More Information, refer
to Snap Mode and Quantize Mode.
(3) MASTER knob: Adjusts the Master volume level.
(4) MIC button: Inserts the microphone channel to the Master signal.
(5) SAMPLE knob: Adjusts the channel volume for Remix Deck C or D added to the Master output
signal.
(6) Headphone Cue Mix control: Adjusts the signal mix between Master output signal and the
Cue Channel signal in the headphones.
(7) Headphone Cue Volume control: Adjusts the Headphone CUE level.
(8) Mixer FX SELECT buttons: Select the individual Mixer FX to be controlled with the Mixer FX
Amount knob in the Mixer channels.
TRAKTOR KONTROL S2 Overview
17
