(6) Channel Fader: Adjusts the volume level for the Mixer channel before the audio signal is sent
to the crossfader.
5.4. Front View
The front panel of your S2 hosts the Heaphones socket (PHONES OUT) for the CUE channel, us-
ing a stereo 1/4" jack.

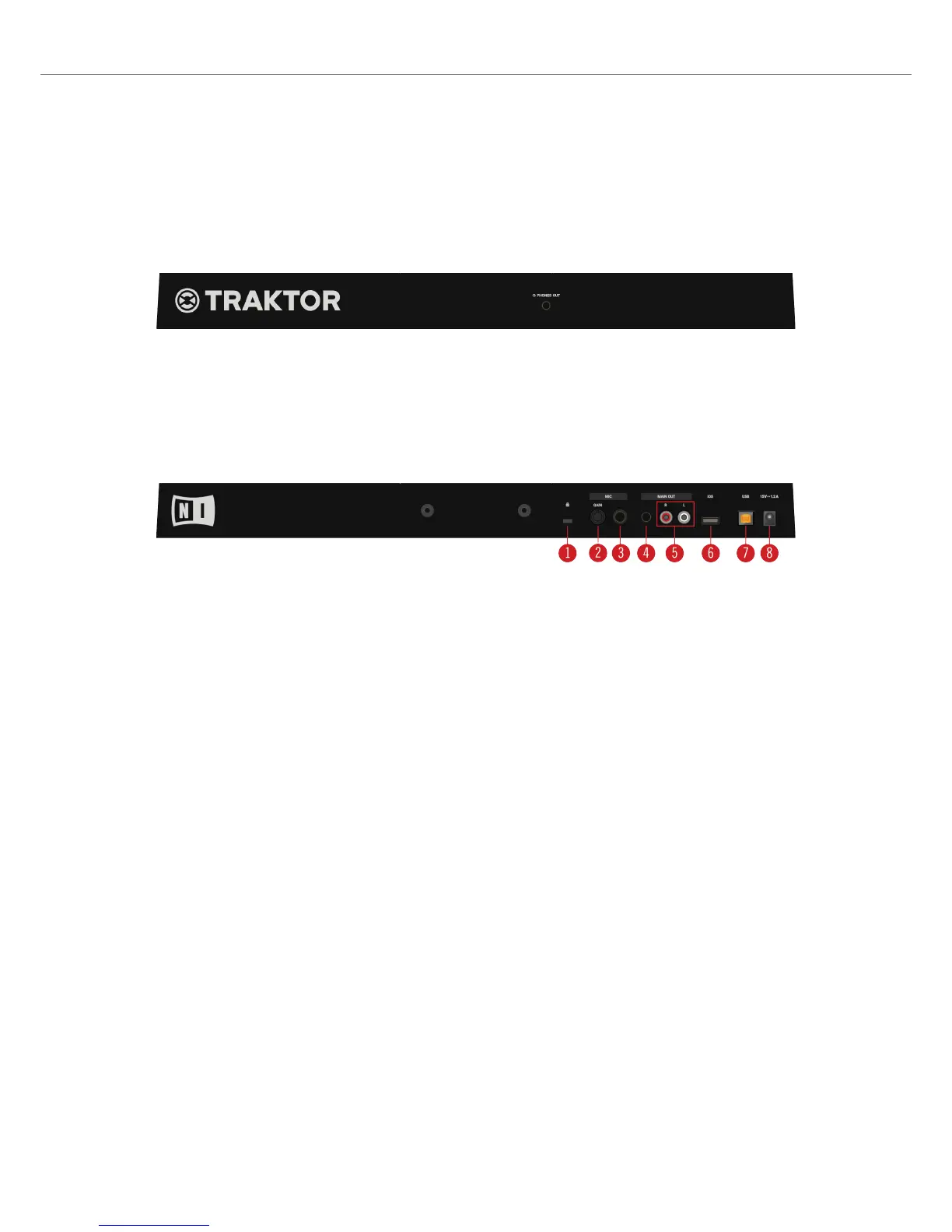

Front view.
5.5. Rear View
This section describes all the sockets and controls available on the rear panel of your TRAK-
TOR KONTROL S2.
Rear view.
(1) Kensington Lock slot: Attaches a Kensington Lock to protect your S2 against theft.
(2) MIC GAIN: Adjusts the level for the incoming microphone signal.
(3) MIC 1/4" socket: Connects a microphone using a 1/4" jack.
(4) MAIN OUT 1/8" socket: Connects the S2 to active speakers.
(5) MAIN OUT RCA R / L: Connects the S2 to a power amplifier.
(6) iOS: Connects an iOS device for future iOS compatibility.
(7) USB: Connects your S2 with your computer using the included USB cable.
(8) Power Supply socket: Connects the optional Native Instruments Power Supply to be pur-
chased separately on the Native Instruments online shop.
TRAKTOR KONTROL S2 Overview
19
