XLTEK Protektor32 Instructions for Use
49
Note that you can set up as many markers as required for the test.
To Set Up the Calculations Table:
1. Click the Append button to add a row to the marker calculations table.
2. You can enter a name for the calculated result in the Name column. If a name is not entered,
EPWorks will automatically assign a name based on the markers selected in the From and To
columns.
3. Right-click the From cell to select the second marker. The result is calculated as (To - From).
4. If you plan to select Amplitude in the Type column in Step 3, then right-click the To cell to select
the first marker. -Note that It is not necessary to set a value in the To column, if you select
Latency calculation in the Type column in Step 3.
5. Right-click the Type cell and select either Amplitude or Latency calculation type.
6. Click Save.

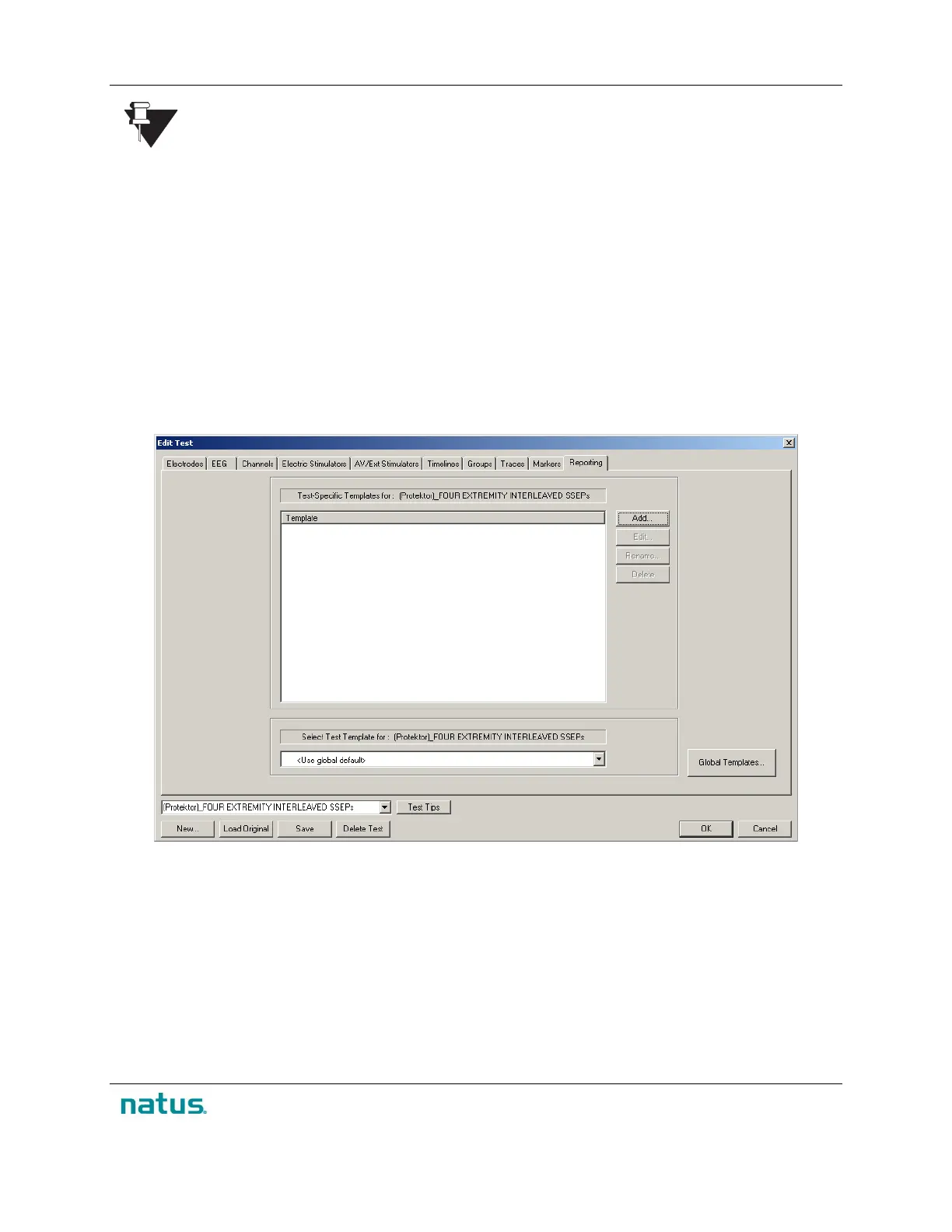

L) Reporting Tab
1. The Test-Specific Templates listed in the Template window are applicable to this test.
2. Click the Add button to begin creating your customized Test-specific Template.
3. This box lists the Default Template for the named test. In this example, no default has been
selected from the drop-down list.
4. Click on the Global Templates button to view the list of all available Global Study and Test
Templates (i.e., templates that can be used for any tests).
