Nautilus E614 User Manual

43

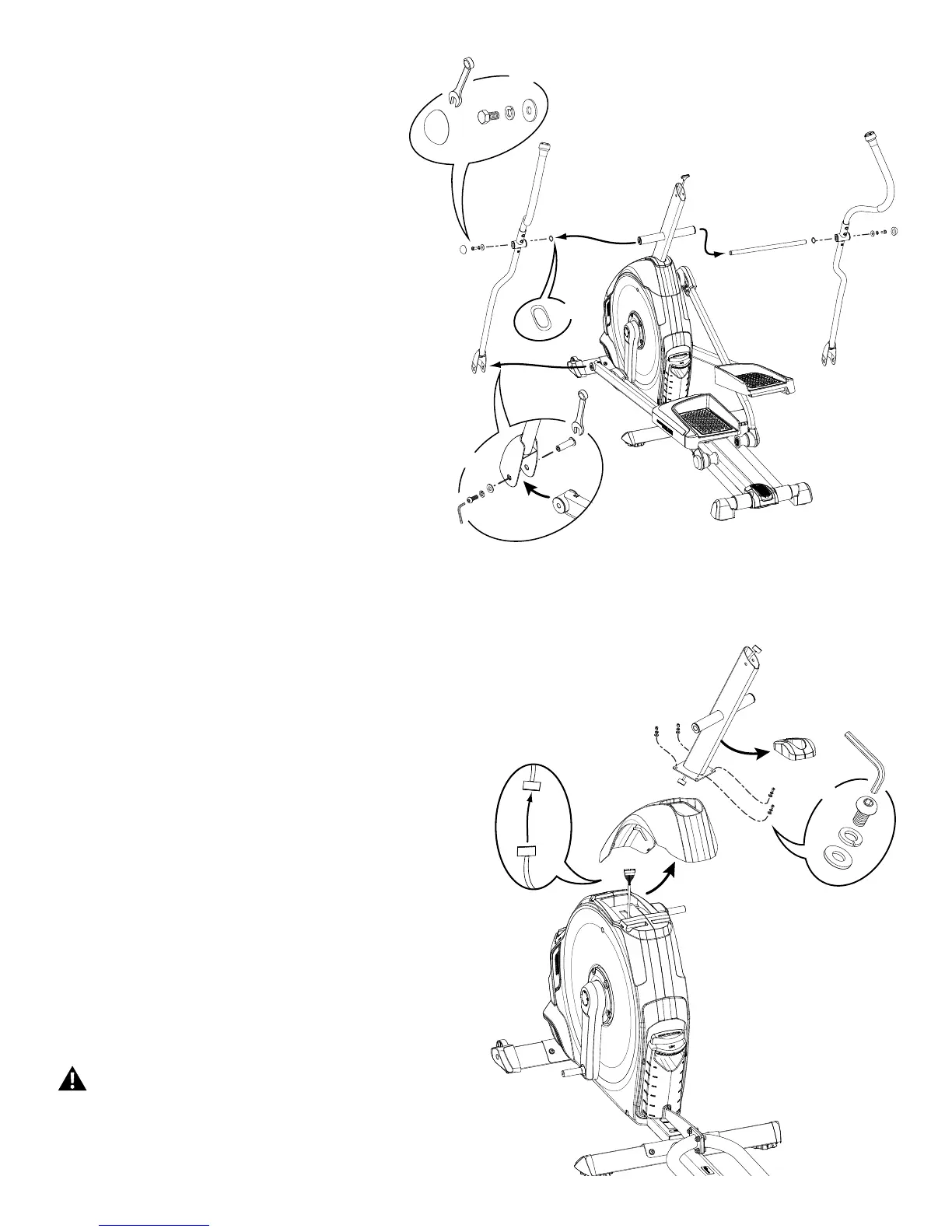

4. Using a small flathead screwdriver, pry the Caps from
the Lower Handlebar Arms.
5. Using a 13 mm wrench, remove the hardware from the
Lower Handlebar Arms and the Arm Pivot Rod. Remove the
hardware, Upper and Lower Handlebar Arms, and Arm Pivot
Rod. Set them safely aside for reassembly.
6. Bend the edges of the Top Shroud to disengage the inside tabs from
the Main Assembly, and slide the Shroud Cap and Top Shroud up the
Mast.
7. Remove the hardware (indicated) from the Mast. Gently pull the Mast
out and disconnect the cables. Set the hardware and Top Shroud safely
aside for reassembly. Discard the Mast.
NOTICE: Do not crimp the cables. Do not allow the Data Cable to
fall down into the Main Unit. This step may require two
people.
8. Installation is the reverse procedure.
NOTICE: Do not crimp the cables. Do not allow the Data Cable to
fall down into the Console Mast.
9. Inspect your machine to ensure that all hardware is tight and compo-
nents are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the Owner’s
Manual.
X2
13 mm
X2
6mm
X2
6mm
X4
