19

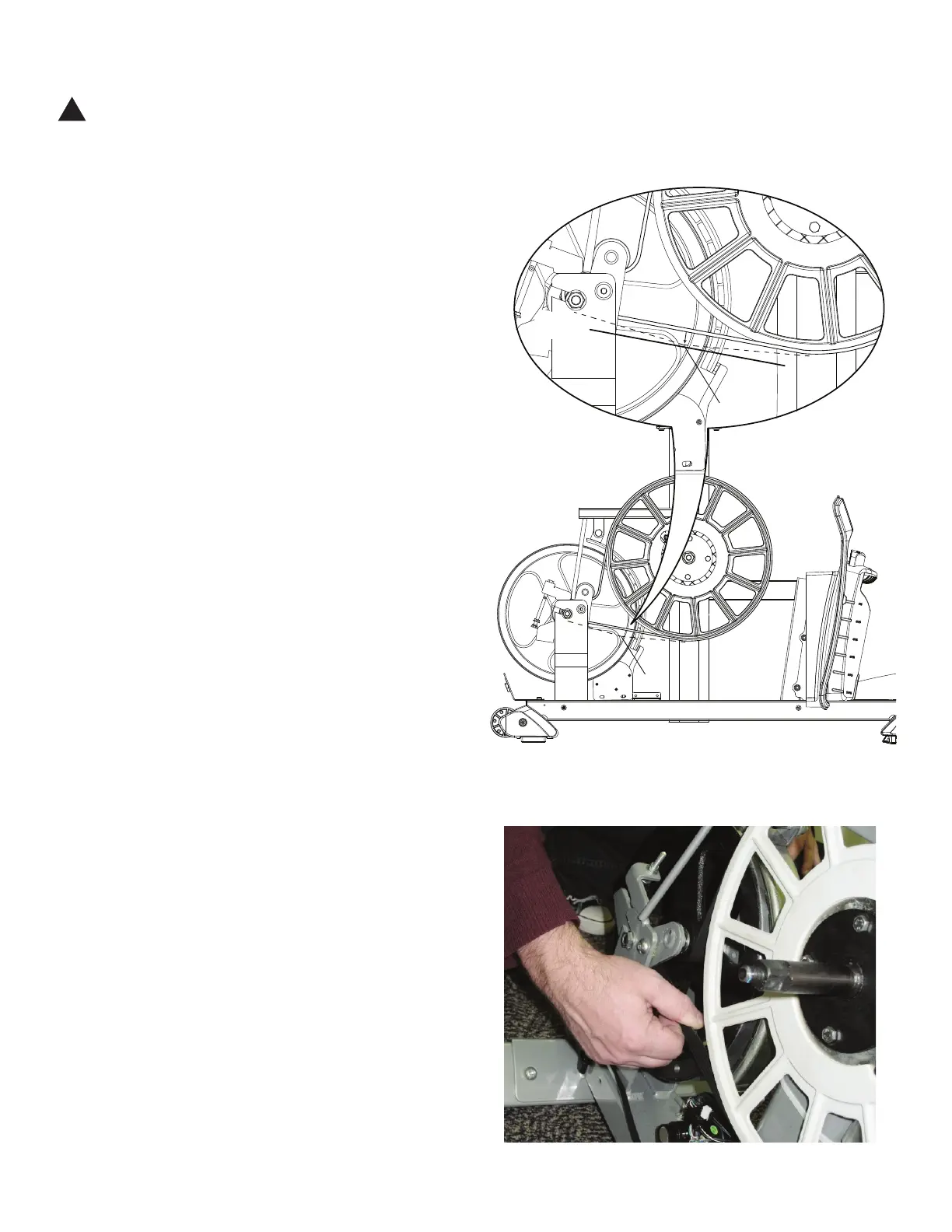

Note: Your machine may not match the image. For reference only.
1. Remove the Left Shroud from the Main Unit. Refer to the “Replace
the Shrouds” procedure.
2. 7RWHVWWKH'ULYH%HOWWHQVLRQ
• 3XVKWKH'ULYH%HOWGRZQZDUGDWWKHPLGSRLQW0EHWZHHQWKH
SXOOH\VDQGPHDVXUHWKHGLVWDQFH7KH'ULYH%HOWVKRXOGKDYHRQO\
0.25” (0.64 cm) of give. See Figure 1.
Or:
• +ROGWKHHGJHVRIWKH'ULYH%HOWDWWKHPLGSRLQW0DQGWZLVWLWVHH
Figure 2). It should turn only 90 degrees
(1/4 turn, to vertical).
If the tension is correct, go to Step 6.
If the tension is too loose or too tight, adjust the nuts and bolt on the
Tensioner Assembly (Idler Assembly). Continue to Step 3.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet
and wait 5 minutes before cleaning, maintaining or repairing this machine. Place the power cord in a secure location.
NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
Figure 1
Figure 2
M
M
0.25”
0.64 cm
}
To Next Page
