To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet
and the machine and wait 5 minutes before cleaning, maintaining or repairing the machine. Place the power cord in a secure
location.
Note: Your machine may not match the image. For reference only.

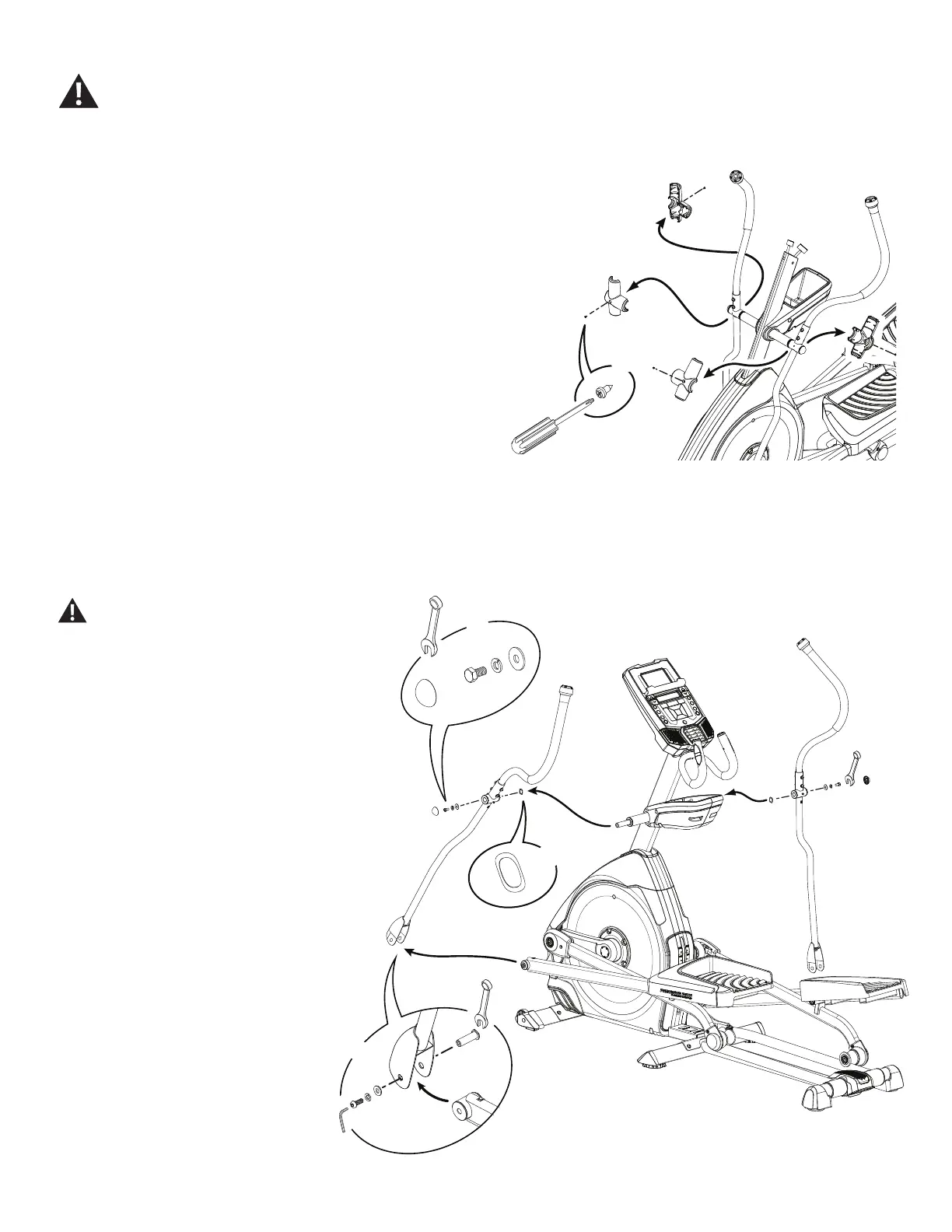

1. Loosen and remove the 4 screws from the Handlebar Shrouds.
Remove the Handlebar Shrouds and set them safely aside.
2. Using a 6mm hex key and a 13 mm wrench, remove the 2 indicated
bolts from the Lower Handlebar Arms and Pedals. Set the hardware safely
aside for reassembly.
Be aware that the Handlebar Arms
will be loose and may pivot when the
hardware is removed. This step may
require two people.
3. Using a 13 mm wrench, remove the
hardware from the Lower Handlebar Arms and
the Arm Pivot Rod. Remove the hardware and
Upper and Lower Handlebar Arms. Set them
safely aside for reassembly.
X2
13 mm
X2
6mm
X2
#2
X4
Console-static handlebar not shown for clarity
To Next Page
