Nautilus E616 Service Manual

48

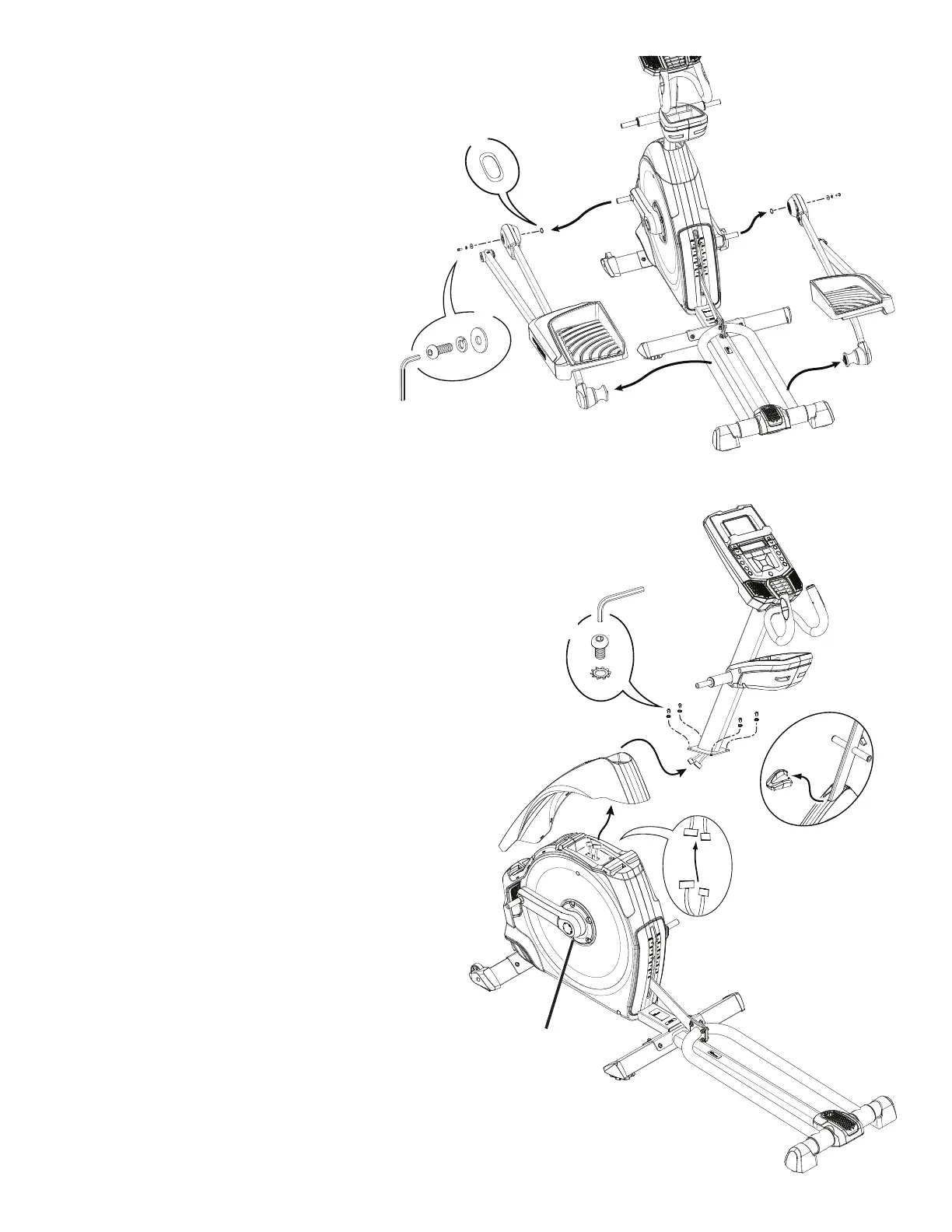

4. Using a 6mm hex key, loosen and remove the indicated hardware
from the Legs, and set it safely aside for reassembly. On each side of the
machine, remove the Leg and Pedal together from the Rail Assembly and
set them safely aside for reassembly.
NOTICE: This step may require two people.
5. Bend the edges of the Top Shroud to disengage the inside tabs from
the Main Assembly, and slide the Shroud Cap and Top Shroud up the
Mast.
If you are not replacing the Top Shroud—go to Step 7.
If you are replacing the Top Shroud—continue to Step 6.
6. Remove the hardware (indicated) from the Mast. Gently pull the Mast
out and disconnect the cables. Set the hardware, Mast and Top Shroud
safely aside.
NOTICE:'RQRWFULPSWKHFDEOHV7KLVVWHSPD\UHTXLUHWZR
people.
7. 8VLQJDÀDWKHDGVFUHZGULYHUUHPRYHWKH&HQWHU&DS$IURPWKH
Crank Arm.
6mm
X4
A
X2
X2
6mm

Nautilus E616 Specifications

General

Type	Upright
Programs	29
Bluetooth Connectivity	Yes
User Profiles	4
Drive System	Belt
Display	LCD
Heart Rate Monitoring	Contact and Telemetry Enabled
Max User Weight	300 lbs
Warranty	10 years frame, 1 year labor
Flywheel	Perimeter Weighted
Product Weight	78.5 lbs (35.6 kg)
