53

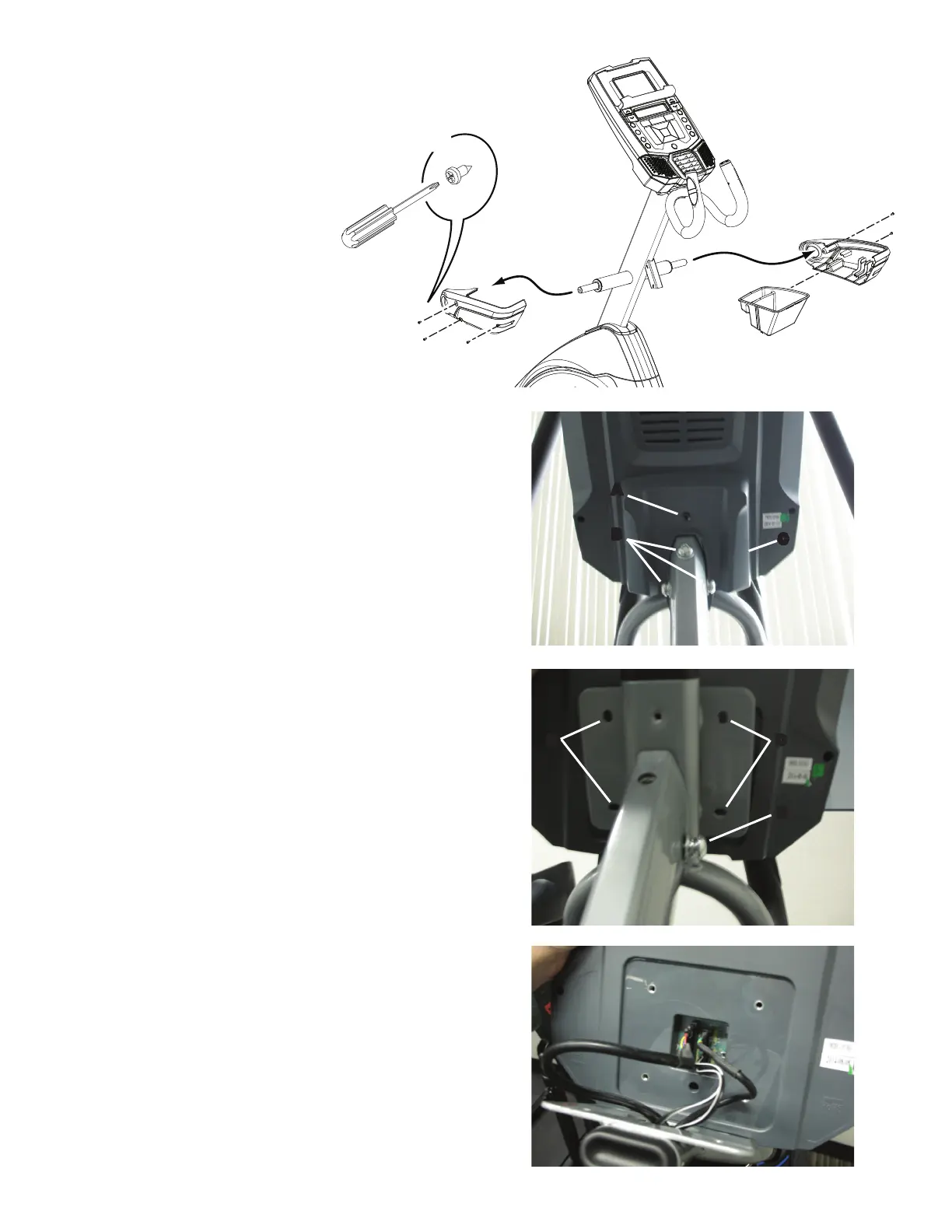

4. MY14 model only—Loosen and remove
the screws from the Water Bottle Holder.
Remove the Water Bottle Holder and set it safely
aside.
If you are only replacing the Water Bottle
Holder—go to Step 13.
If you are replacing the Console Mast—
continue to Step 5.
5. MY14 model only—Loosen and remove the screw (A) that attaches
the Console Junction Cover (C) to the Console. Set the screw safely aside
for reassembly.
6. To get access to the mount plate, carefully loosen and remove the
hardware (B) that attaches the Static Handlebar Assembly to the Mast
using a 6mm hex key. Slide the Console Junction Cover (C) down the
Mast. Reinstall 1 bolt to hold the Static Handlebar Assembly in position on
the Mast. Set the other hardware safely aside for reassembly.
NOTICE: 'RQRWOHWWKH&RQVROHDQG6WDWLF+DQGOHEDU$VVHPEO\IDOO
This step may require two people.
7.5HPRYHVFUHZV'WKDWDWWDFKWKH&RQVROHWRWKH6WDWLF+DQGOHEDU
Assembly. Carefully lift the Console off the Mast.
8.'LVFRQQHFWWKH'DWD&DEOH/LIW0RWRU&DEOHDQG+HDUW5DWH&DEOH
from the back of the Console. Set the Console and screws safely aside for
reassembly.
Note:'RQRWOHWWKHFDEOHVIDOOGRZQLQVLGHWKH0DVW7KLVVWHSPD\
require two people.
A
B
C
D D
B
X5
#2
