Nautilus E616 Service Manual

61

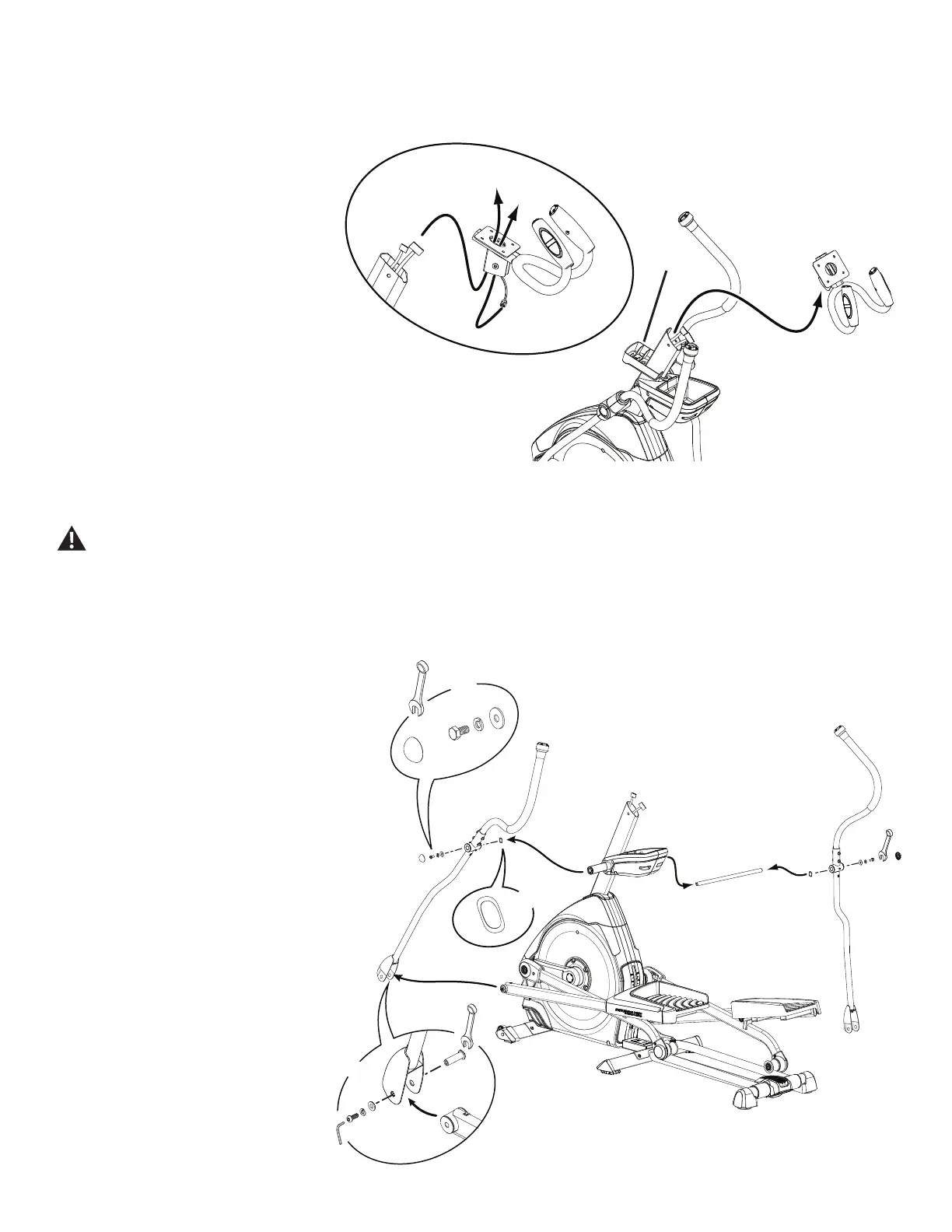

6. Using a 6 mm hex key, remove the remaining bolt (B, from Step 3)
again, and remove the Static Handlebar and Console Junction Cover (C).
NOTICE:'RQRWFULPSWKHFDEOHVZKHQUHPRYLQJWKH6WDWLF+DQGOHEDU
'RQRWDOORZWKHFDEOHVWRIDOOGRZQLQWRWKH&RQVROH0DVW8VH
a rubber band or wire tie.
7. Using a 6mm hex key and a 13 mm wrench, remove the 2 indicated
bolts from the Lower Handlebar Arms and Pedals. Set the hardware safely
aside for reassembly.
Be aware that the Handlebar Arms will be loose and may
pivot when the hardware is removed. This step may require
two people.
8. Using a 13 mm wrench, remove the hardware from the Lower
Handlebar Arms and the Arm Pivot Rod. Remove the hardware, Upper
and Lower Handlebar Arms, and Arm Pivot
Rod. Set them safely aside for reassembly.
C
6mm
X2
X2
13 mm
X2

Nautilus E616 Specifications

General

Type	Upright
Programs	29
Bluetooth Connectivity	Yes
User Profiles	4
Drive System	Belt
Display	LCD
Heart Rate Monitoring	Contact and Telemetry Enabled
Max User Weight	300 lbs
Warranty	10 years frame, 1 year labor
Flywheel	Perimeter Weighted
Product Weight	78.5 lbs (35.6 kg)
