71
11. Installation is the reverse procedure. Adjust the new Servo Motor to
same position recorded in Step 3.
NOTICE:'RQRWWRXFKWKH3RWHQWLRPHWHU1'RQRWFULPSDQ\
cables.

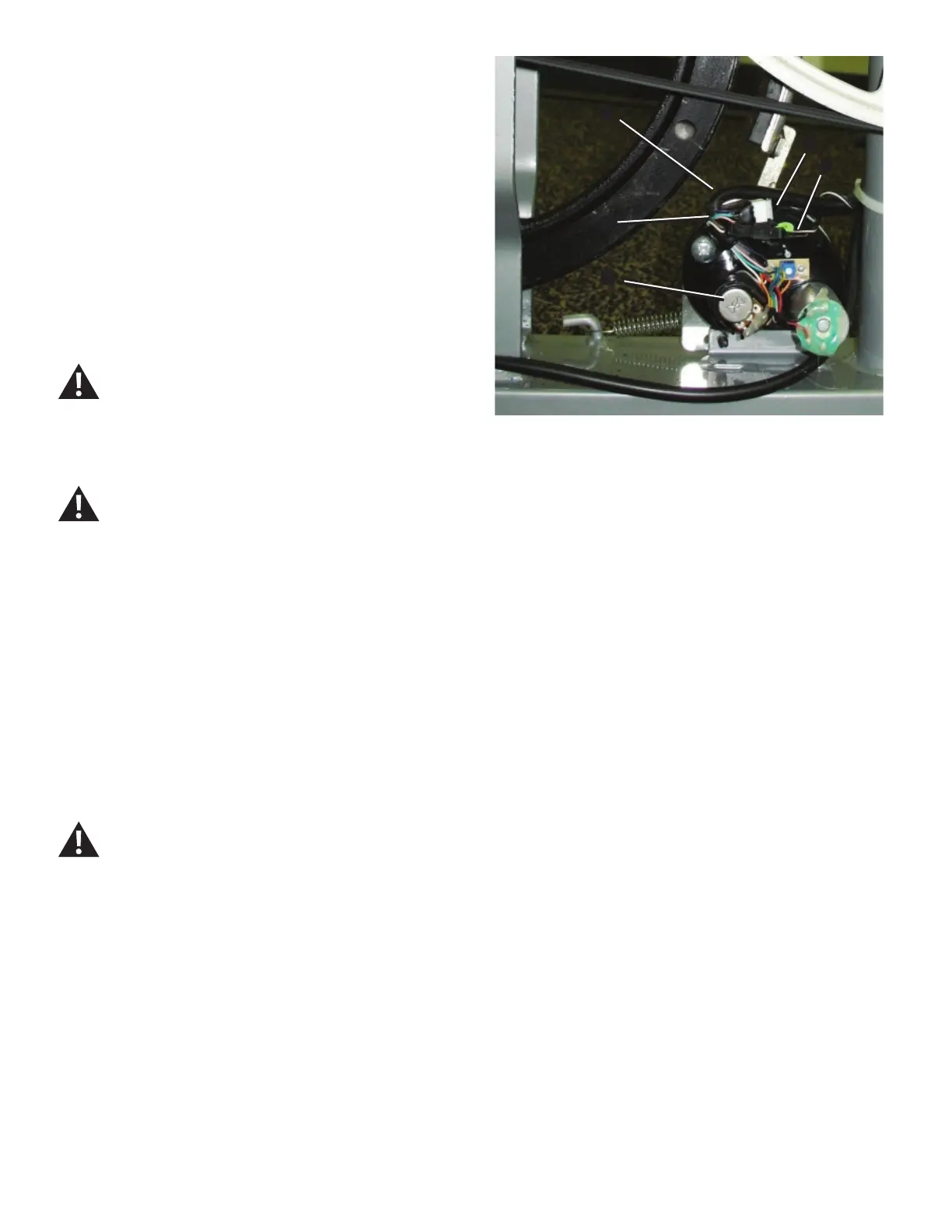

12. Tie the end of the string at the hole (H) in the Mast to the end of the
Console Cable (G) on the new Servo Motor (A). Carefully pull the cable
through the hole to the top of the Mast mount. Untie the string and discard
it.
NOTICE:'RQRWFULPSWKHFDEOHV
13. Reinstall the Mast, Static Handlebar, Console and Top Shroud.
(Refer to the “Replace the Shrouds” procedure.) Turn the power on.
Machine is on. Current is active. There is risk of electrical
shock.
14. Use the console to set the resistance to the highest level. Unplug the
machine.
Disconnect all power and allow to sit for 5 minutes.
15. Put the Brake Arm (K) back in position and connect the Tension
Spring (J) with the needlenose pliers.
Note: Before fully attaching the Shrouds, remove the cardboard
from between the Brake Magnet (B) and the Flywheel (C).
Power up the machine to verify that the Magnet Arm can
move freely, and that the Brake Magnet and Flywheel do not
touch at the maximum resistance level. If necessary, refer to
the “Set the Brake Tension” procedure.
16. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
After replacing the Servo Motor, the resistance levels of the machine may
be different. The user should adjust their workout levels accordingly.
D
N
F
E
G
To Next Page
