Nautilus E616 Service Manual

70

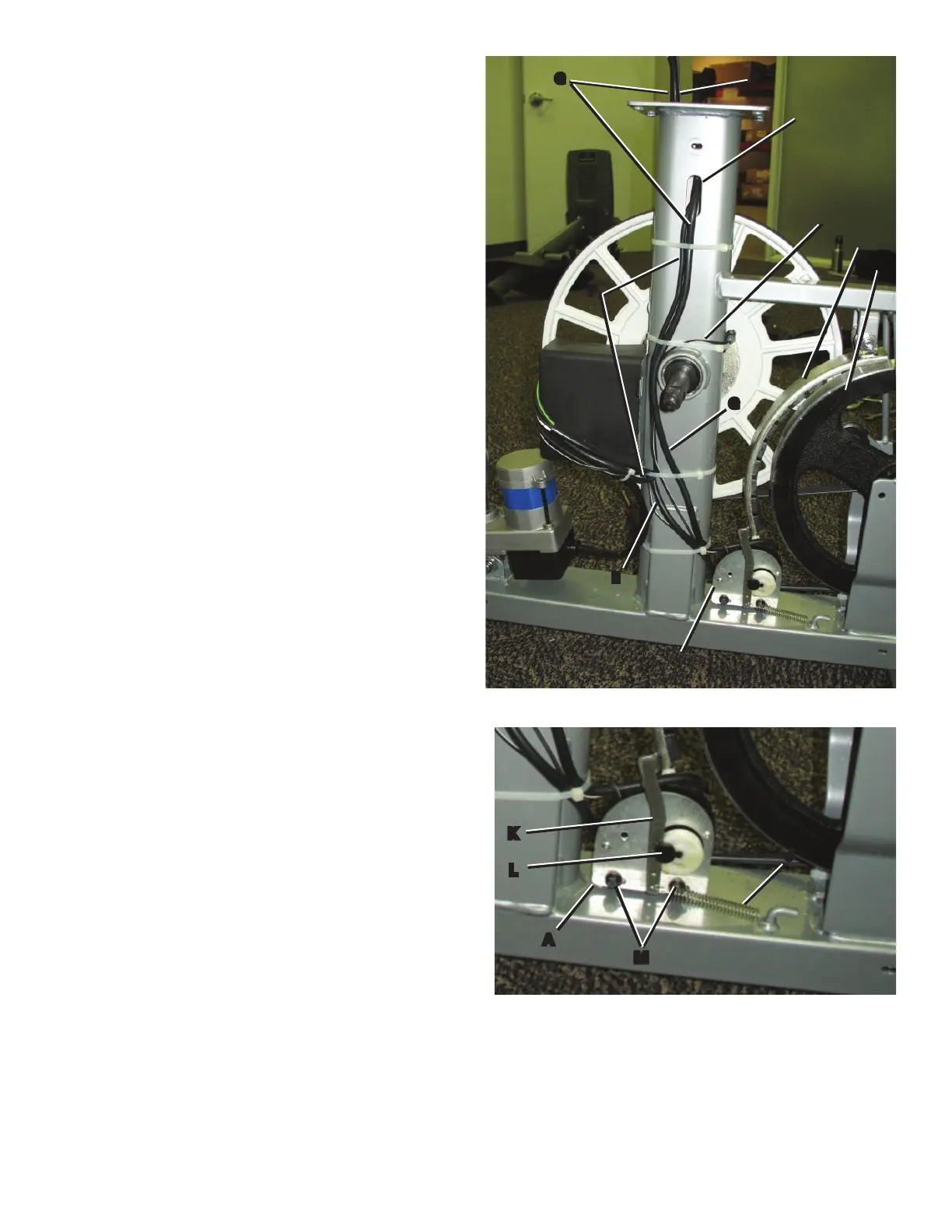

6. Tie the length of string to the end of the lower Console Cable (G)
at the top of the Mast mount. Remove the zipties that attach the lower
Console Cable to the Frame. Pull the cable and string down through the
hole (H) on the side of the Frame so that the string extends through the
Frame.
NOTICE: Hold the Lift Motor Wire (P) so that you do not pull it out of
WKH0DVW'RQRWFULPSWKHFDEOHV
7. Untie the string from the Console Cable (G).
8. Use the pliers to unhook the Tension Spring (J) from the Main Frame.
Pull back and release the Magnet Arm (K) enough to disengage it from the
Motor Pulley Shaft (L).
9. Loosen and remove the two socket head bolts (M) from the Servo
Motor (A).
10. 5HPRYHWKH6HUYR0RWRU$'LVFDUGWKHROG6HUYR0RWRU
A
K
M
L
J
E
H
G
A
D
B
C
G
P
P

Nautilus E616 Specifications

General

Type	Upright
Programs	29
Bluetooth Connectivity	Yes
User Profiles	4
Drive System	Belt
Display	LCD
Heart Rate Monitoring	Contact and Telemetry Enabled
Max User Weight	300 lbs
Warranty	10 years frame, 1 year labor
Flywheel	Perimeter Weighted
Product Weight	78.5 lbs (35.6 kg)
