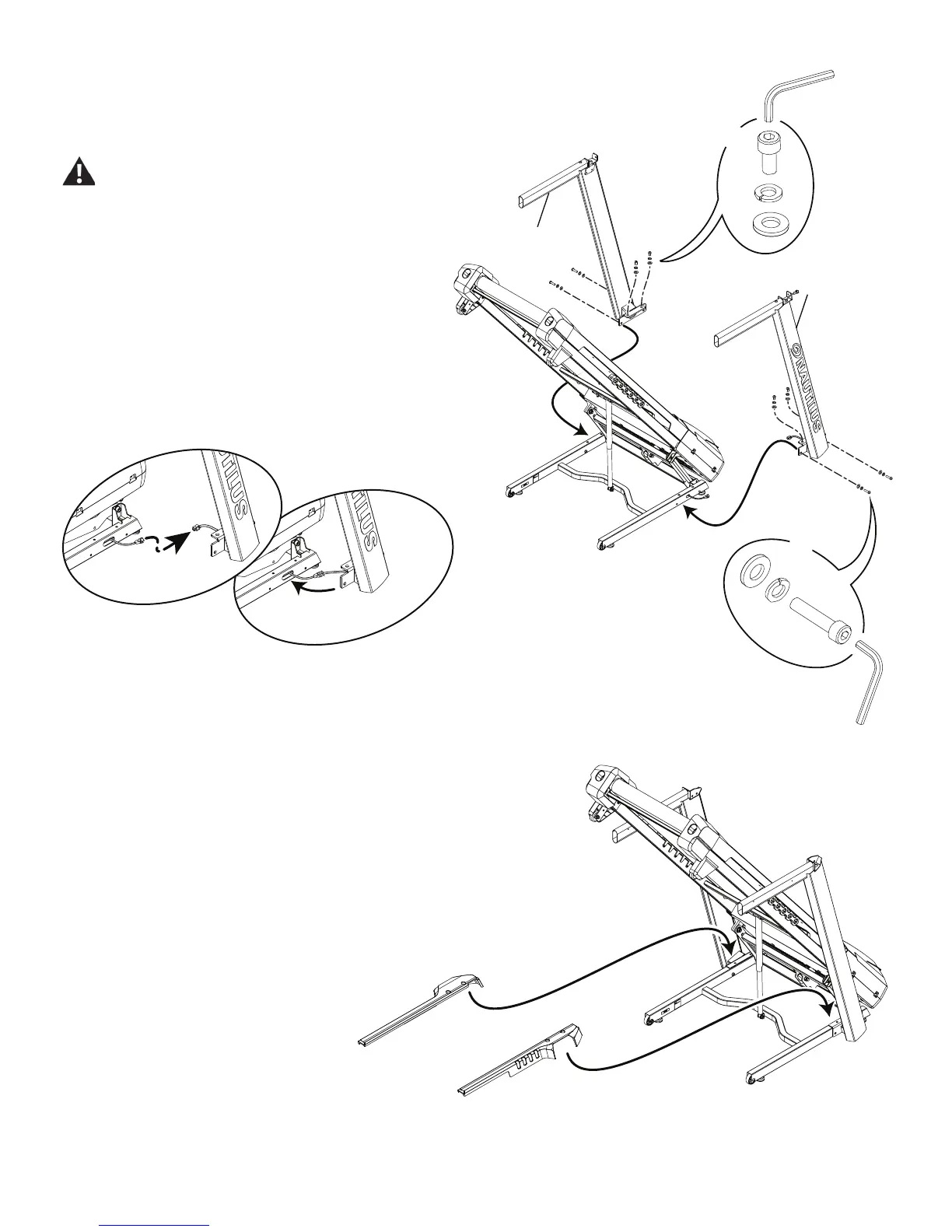

25.Withtheassistanceofatleastasecondperson,ipthe
Base Assembly to the Upright position. Be aware that the Lifting
Shock will begin to compress when placed back to an upright
position, lowering the Base Assembly.
Be sure the area is clear around the Base Assembly
beforeippingit.DonotgrasptheWalkingBeltsinceit
can abruptly move.
26. Connect the Input/Output (I/O) Cables and Attach the Up-
rights to Frame Assembly
Note: this step may take two people to safely hold the Right
Upright while the Cables are connected. Do not crimp the
Cables. Do not fully tighten the Hardware until the Console and
Handlebar Assembly has been attached.
27. Place the Base Shrouds back onto the Base Assembly.
