Nautilus T624 Service Manual

111
NOTICE: ThisdocumentprovidesinstructionsforthereplacementoftheSideRailontheNautilus
™
T624/T626/T684/T686 and Schwinn
®
530/570 Treadmills.
If you need assistance, please contact your local Nautilus distributor. To find your local distributor, go to: www.nautilusinternational.com
Note: The Nautilus™ T626 is used in the following images. The procedure
is the same for the Nautilus™ T624/T684/T686 and Schwinn
®
530/570
models.

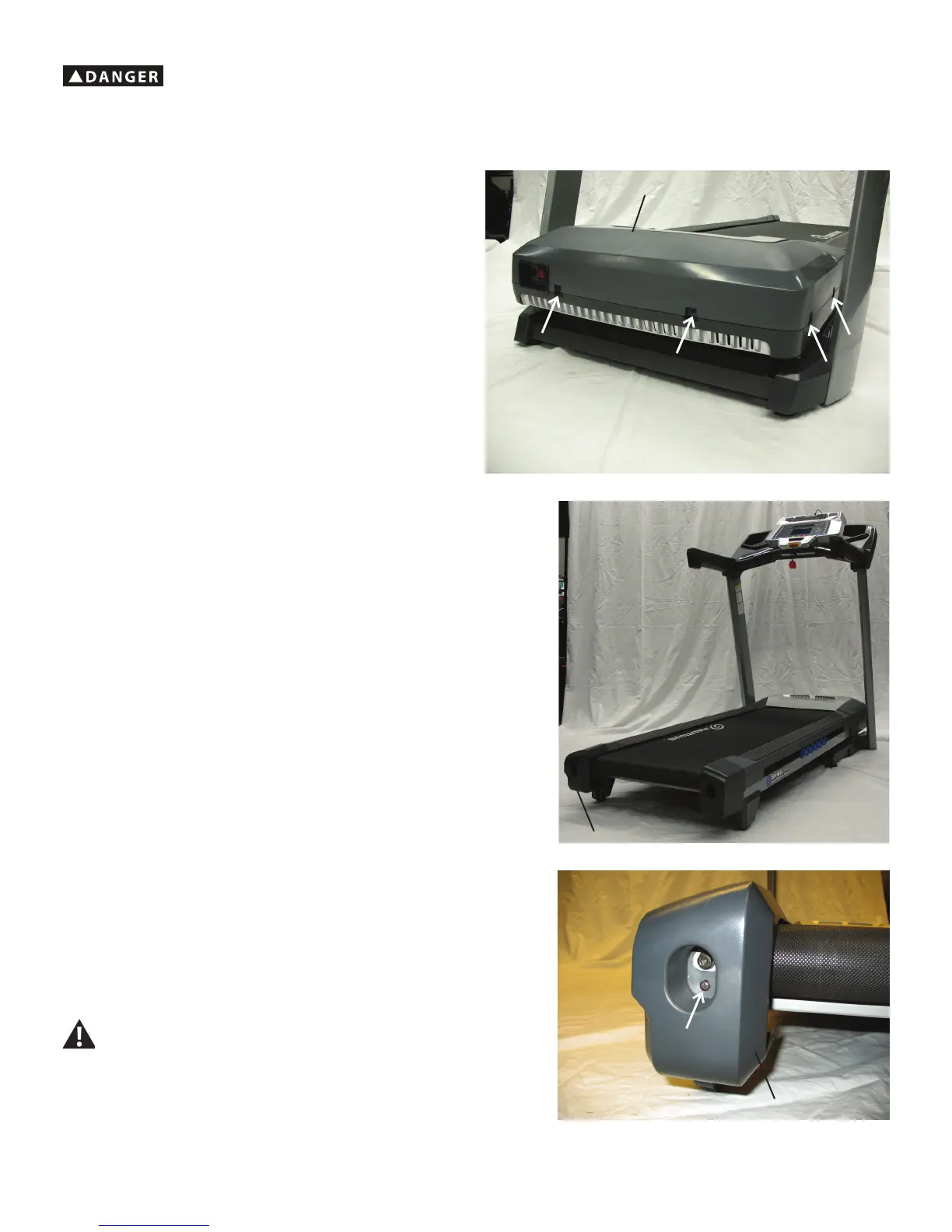

1.Unplugthepowercordfromthemachineandwait5minutes.Placethe
power cord in a secure location.
2. Using a #2 Phillips screwdriver remove the 4 indicated screws, and two
additional screws on the far side, from the Motor Cover and remove it.
3. Using a #2 Phillips screwdriver, remove the indicated screw from the
Rear Roller Cover.
4. Make sure that there is safe clearance around, on and above the
treadmill. Make sure there is no object to spill or cause blockage from the
fully folded position.
Be sure there is adequate height clearance for the raised deck.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet
andthemachineandwait5minutesbeforecleaning,maintainingorrepairingthemachine.Placethepowercordinasecure
location.
Rear Roller Cover
Motor Cover
Rear Roller Cover

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
